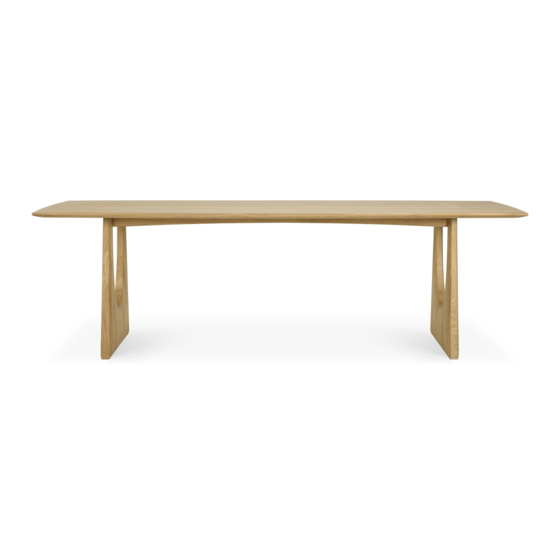

55013 OAK GEOMETRIC DINING TABLE
ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION
HARDWARE ENCLOSED
SCREW
METAL PLATE
M8x50mm
4pcs
8pcs
SCREW
SCREW
M6x50mm
M6x60mm
10pcs
4pcs
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TABLE TOP 1pc
2. LEGS 2pcs
3. APRONS 2pcs
SYMBOLS
DIRECTION
PERSONS NEEDED
SCREW
M8x16mm
16pcs
NUMBER OF
2
3
USE HAND
TOOLS
L KEY 4
(Included in package)
2
3
1
NOTICE
USE L KEY
TO TIGHTEN
1/3
L KEY 5
(Included in package)
SCREWDRIVER
(Not included in package)
X2
USE SCREWDRIVER
TO TIGHTEN
Advertisement
Table of Contents
Related Manuals for Ethnicraft OAK GEOMETRIC DINING TABLE 55013
Summary of Contents for Ethnicraft OAK GEOMETRIC DINING TABLE 55013
- Page 1 55013 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION HARDWARE ENCLOSED TOOLS SCREW SCREW METAL PLATE M8x50mm M8x16mm L KEY 4 L KEY 5 4pcs 8pcs 16pcs (Included in package) (Included in package) SCREW SCREW M6x50mm M6x60mm SCREWDRIVER 10pcs 4pcs (Not included in package)
- Page 2 55013 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION A. INSTALLING METAL PLATE TO THE LEGS WITH SCREWDRIVER TO FIT SCREW INTO THE BARREL NUT - USE METAL PLATE (4X) - USE SCREW M8x50mm (8X) - USE L KEY 5 TO TIGHTEN - TIGHTEN FULLY ALL SCREWS B.
- Page 3 55013 OAK GEOMETRIC DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION C. INSTALLING APRON TO THE LEGS & TABLE TOP STEP 1 - APRON HOLES FACING INWARD STEP 2 - USE SCREW M6x60mm (4X) WITH SCREWDRIVER TO FIT SCREW INTO THE BARREL NUT - USE L KEY 4 TO TIGHTEN - DO NOT FULLY TIGHTEN STEP 3...
