20min
Assembly instructions
Chatpod 185

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chatpod 185 and is the answer not in the manual?

Questions and answers

Related Manuals for IMPACT ACOUSTIC Chatpod 185

Summary of Contents for IMPACT ACOUSTIC Chatpod 185

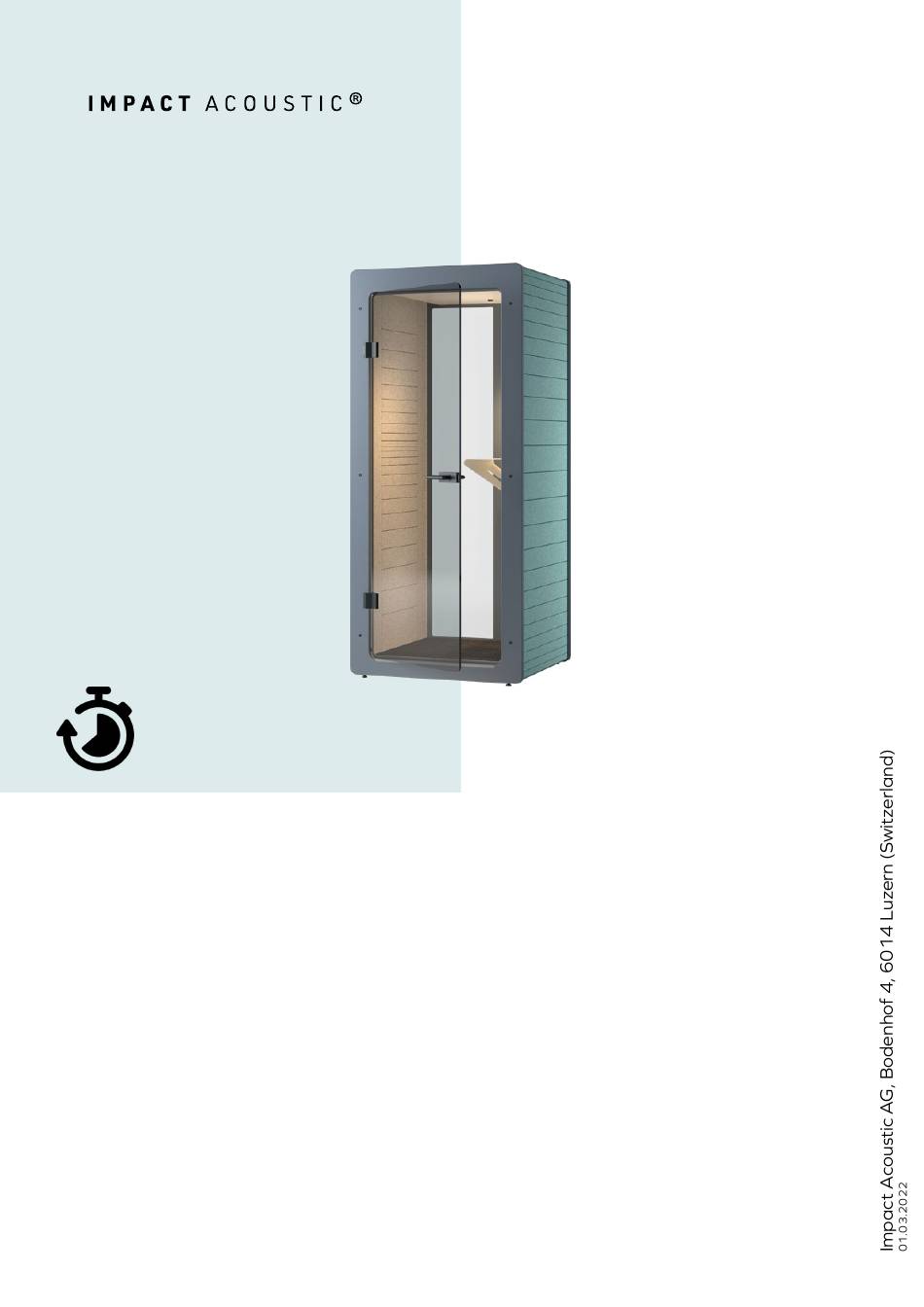

  • Page 1 20min Assembly instructions Chatpod 185...
  • Page 2 Is required in addition to the scope of delivery: Attention Always carry the front panel in a way that the hinges are always on top, otherwise the door could accidentally open and break. Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 3 Place the honeycomb cardboard blocks under the cardboard supports of the base. Make sure that the bottom sits stably on the blocks and that the blocks protrude a few centimenter to the sides. Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 4 Hold the sides until the top is assembled. Pin the top together with the sides, pull the cable through the top from the right side. Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 5 3 Insert the six connecting rods. Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 6 Do the same with the front. Now tighten all the screws, which must be countered on the opposite side. M6 x 40mm Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 7 Press the two halves of the door handle together while tightening the stud screw with the 3 mm hex key. Make sure that the handle is mounted with the pre-mounted square pin in the inside of the chatpod. Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 8 6 Now screw the table to the side with the five screws. 6.3 x 70mm Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 9 Remove the four honeycomb cardboard blocks. Align the chatpod using the four leveling feets. Insert the plug as shown. Place the two outer panels on the cover. Plug the power cord into the socket. click Well done! Chatpod 185 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
