IMPACT ACOUSTIC Chatpod 1200 Assembly Instructions Manual

Hide thumbs Also See for Chatpod 1200:

Advertisement

Quick Links

Download this manual
120min
Assembly instructions
Chatpod 1200

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chatpod 1200 and is the answer not in the manual?

Questions and answers

Related Manuals for IMPACT ACOUSTIC Chatpod 1200

Summary of Contents for IMPACT ACOUSTIC Chatpod 1200

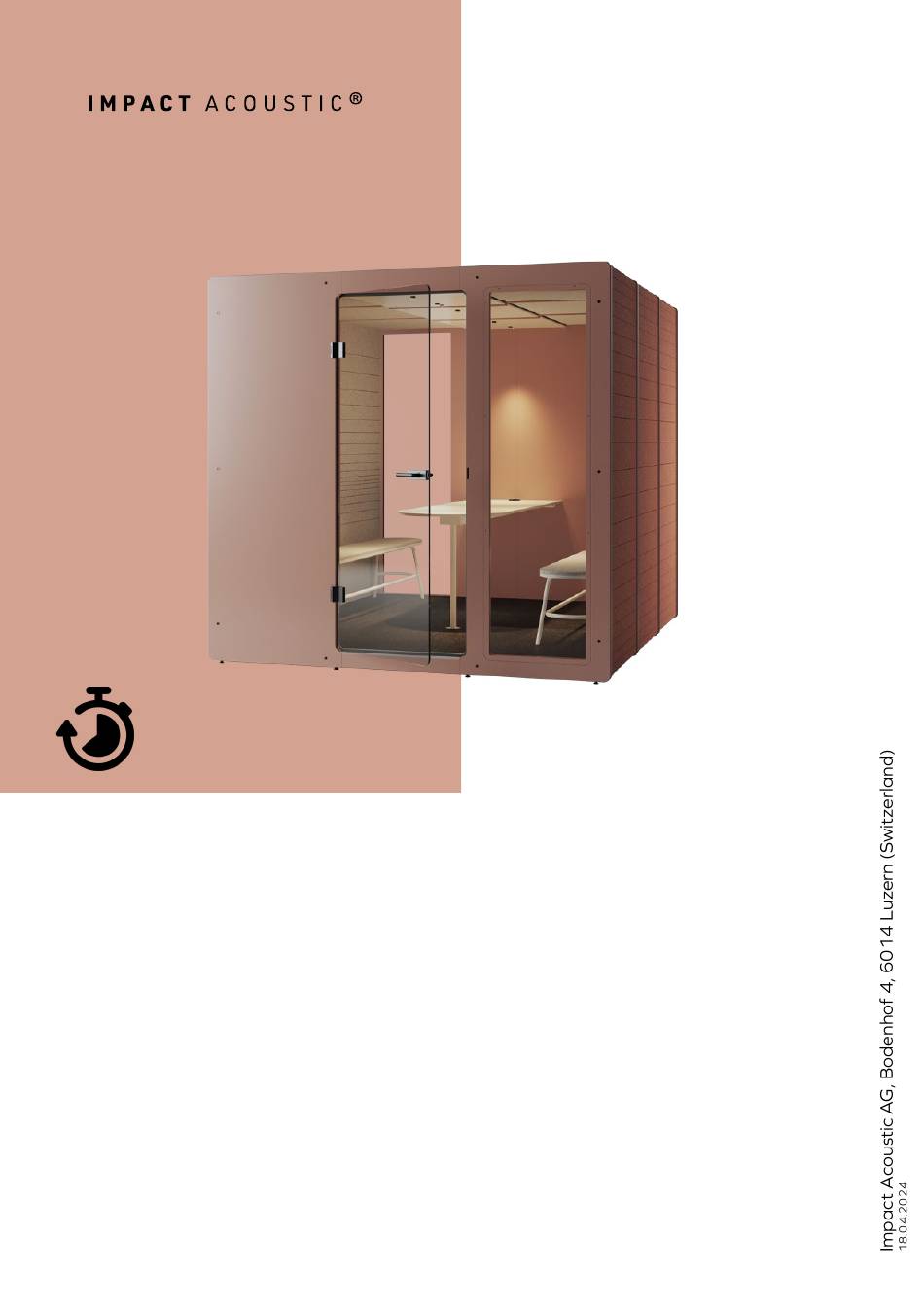

  • Page 1 120min Assembly instructions Chatpod 1200...
  • Page 2 Insert the supply cable and the 4.5m cable into the H-distributor until they click into place. supply cable 5m click cable 4.5m Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 3 Hold the sides until the top is assembled. Pin the top together with the sides, pull the cable through the top from the right side. click cable of the side Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 4 3 Insert the eight connecting rods. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 5 Screw the levelling feet fully into the frame elements. Insert the wooden dowels into the holes. Join the two back panel elements and pull them together with the connectors. Do the same with the front elements. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 6 Join the back wall with the sides, the bottom and the top. Secure the back panel by screwing the ten screws a few turns into the connecting rods. M6 x 50mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 7 Place the honeycomb cardboard blocks under the cardboard supports of the base. Make sure that the bottom sits stably on the blocks and that the blocks protrude a few centimeters to the sides. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 8 Place the two sides on the blocks and tuck them into the bottom. This should go easily, if not, make sure the sides and bottom are aligned. Hold the sides until the lid is assembled. Pin the cover to- gether with the sides. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 9 Screw the levelling feet fully into the frame elements. Assemble the connecting frame with the wooden dowels. Pull the frame together with the connectors. Two connectors are needed for each of the lower corners. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 10 Use the M6x70mm set screws for this purpose. Tighten the connecting rods as far as they will go. M6 x 70mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 11 Place the honeycomb cardboard blocks under the cardboard supports of the base. Make sure that the bottom sits stably on the blocks and that the blocks protrude a few centimeters to the sides. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 12 Hold the sides until the lid is assembled. Pin the cover to- gether with the sides. Screw the levelling feet fully into the frame elements. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 13 Join the front with the elements and fix them with the M6x- 50mm screws, for this purpose the screws must be locked at the back. M6 x 70mm M6 x 50mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 14 Remove the 12 honeycomb cardboard blocks. Align the chatpod using the four leveling feets. In- sert the plug as shown. Place the six outer panels on the cover. Plug the power cord into the socket. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 15 14 Apply the double-sided adhesive tape to the floor as shown. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 16 15 Glue the carpet to the floor, making sure that the cut-outs match the holes in the floor. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 17 Remove the release paper of the double-sided tape and apply some additional glue dots with the installation glue provided. Make sure that the panels are completely flush with the top and side. Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 18 17 Screw the cable channel and the two brackets onto the table top. 4x16mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 19 Level and centre the table top and drill the holes for the table attachment in the back wall. A stepped drilling is necessary, first with a 7mm drill bit 6mm deep and then with a 5mm drill bit a total of 32mm deep. 7x30mm M6x12mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 20 Exemple de montage (selon le support du moniteur) Exemple de montage (selon le support du moniteur) Beispielmontage (abhängig von Monitorhalterung) Example mounting (depending on monitor bracket) Exemple de montage (selon le support du moniteur) 7x30mm M6x12mm Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)
  • Page 21 3 mm hex key. Make sure that the handle is mounted with the pre-mounted square pin in the inside of the chatpod. Well done! Chatpod 1200 Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)

This manual is also suitable for:

Chatpod 1200 high topChatpod 1200 bench
