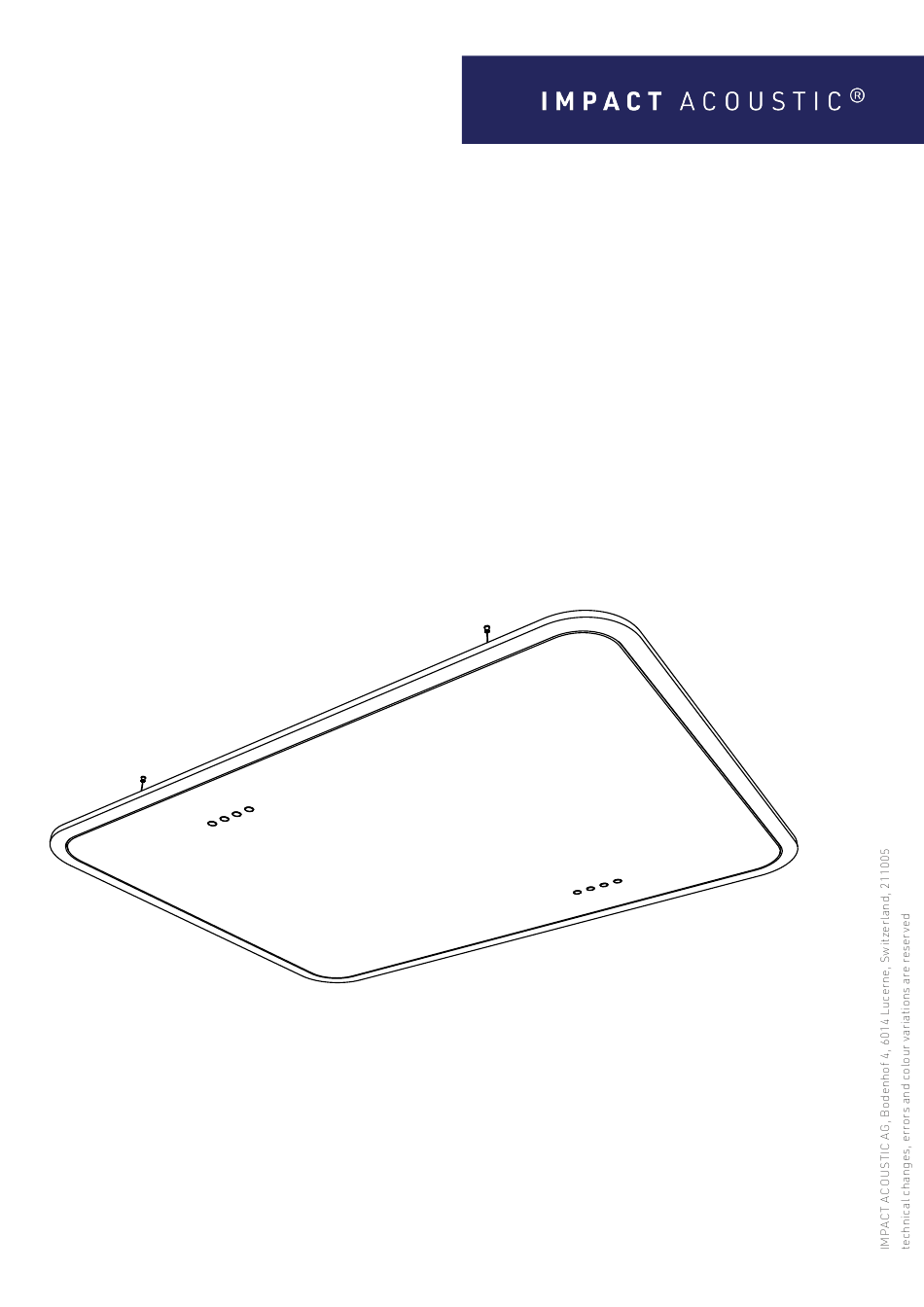

- Page 1 Focus Acoustic Lighting...
- Page 2 Focus assembly instructions Assemble the four frame elements as shown. Center the frame and screw it on with the screws provided. Make sure that the screws are only lightly tightened. Insert the light units into the panel. Connect the light inserts as shown on...
- Page 3 Lead the cable through the strain relief and connect it to the cable clamp. Tighten the strain relief. For the Focus 2400 x 1800, one wire is looped from one luminaire insert to the other. Replace the lamp housing and tighten the...
- Page 4 Focus assembly instructions 2400 1900 suspension position 1800 1120 suspension position...
- Page 5 Focus assembly instructions The screws for ceiling mounting are not included. Mount the suspension kits (A, B, C) to the ceiling using suitable. Fix the hook gripper (D) to the wire rope. Hang the luminaire on the hangers. The wire ropes can be shortened, but they should...
- Page 6 Attention! Turn off power before installation! Connect the supply line to the connector. Guide the cable of the Focus light inserts through the strain relief and tighten it. Insert the ground cable into the cable clamp and tighten the baldachin.
