User's manual
On-tap Water Filter
52367

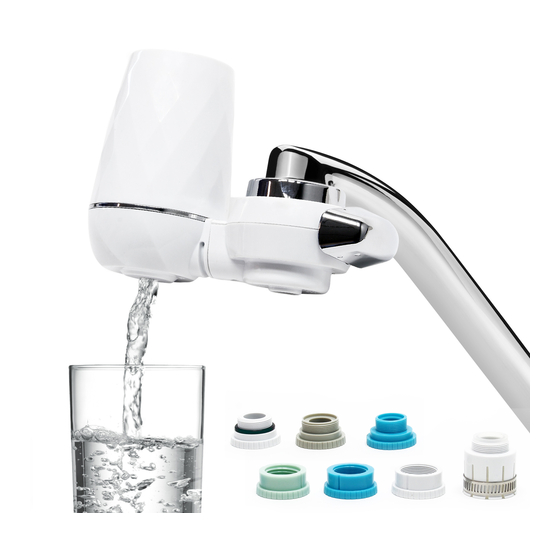

Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 52367 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WilTec 52367

  • Page 1 User’s manual On-tap Water Filter 52367 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
  • Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
  • Page 3 Make sure that the device does not freeze. This could damage the filter and water tap. • Whenever the water pressure is too high, adjust a lesser flow rate. • Avoid hots surfaces; heat might deform or damage the device. © by WilTec Wildanger Technik GmbH Item 52367 Page 3 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 4 Parts № Name Connection with M24 external thread Connection with M22 external thread Connection with M24 internal thread Connection with M22 internal thread Universal connection © by WilTec Wildanger Technik GmbH Item 52367 Page 4 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 5 Ceramic and carbon filter Water filter bottom Inlet of pure water Gasket Silicon pad Filter net of incoming water Body Selector switch Raw water inlet © by WilTec Wildanger Technik GmbH Item 52367 Page 5 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 6 Take off the threaded ring from the body. Step 2 Pass the connection with internal thread through the mounting nut. Step 3 Mount the nuts in the device. © by WilTec Wildanger Technik GmbH Item 52367 Page 6 http://www.WilTec.de http://www.aoyue.eu 03 2022-1...
  • Page 7 Installation of M22/M24 internal thread joints and faucets (external thread) Connection with Connection with M22 internal M24 internal thread thread (1) = gasket Step 1 Take off the threaded ring from the body. © by WilTec Wildanger Technik GmbH Item 52367 Page 7 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 8 If the front end of the water tap or the threaded joint shifts, use sealing tape to fix them. Step 6 Tighten the mounting nut and mounting device. Ensure proper sealing. © by WilTec Wildanger Technik GmbH Item 52367 Page 8 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 9 If the front end of the water tap or the threaded joint shifts, use sealing tape to fix them. Step 4 Tighten the mounting nut and mounting device. Check if the sealing is correct. © by WilTec Wildanger Technik GmbH Item 52367 Page 9 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 10 Insert the filter cartridge/pull out the base and tighten the filter insert to protect the case. Attention! Remove the plastic bag of the cartridge before installing. Remove Install © by WilTec Wildanger Technik GmbH Item 52367 Page 10 http://www.WilTec.de http://www.aoyue.eu 03 2022-1 http://www.teichtip.de...
  • Page 11 Normally, the service life of the filter cartridges depends on the water quality. It is advisable to replace a filter cartridge after 5–6 months. Replace the filter cartridges early enough. © by WilTec Wildanger Technik GmbH Item 52367 Page 11 http://www.WilTec.de...
  • Page 12: Troubleshooting

    Max. flow rate – filter medium ( ⁄ ℓ Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 52367 Page 12 http://www.WilTec.de http://www.aoyue.eu 03 2022-1...
