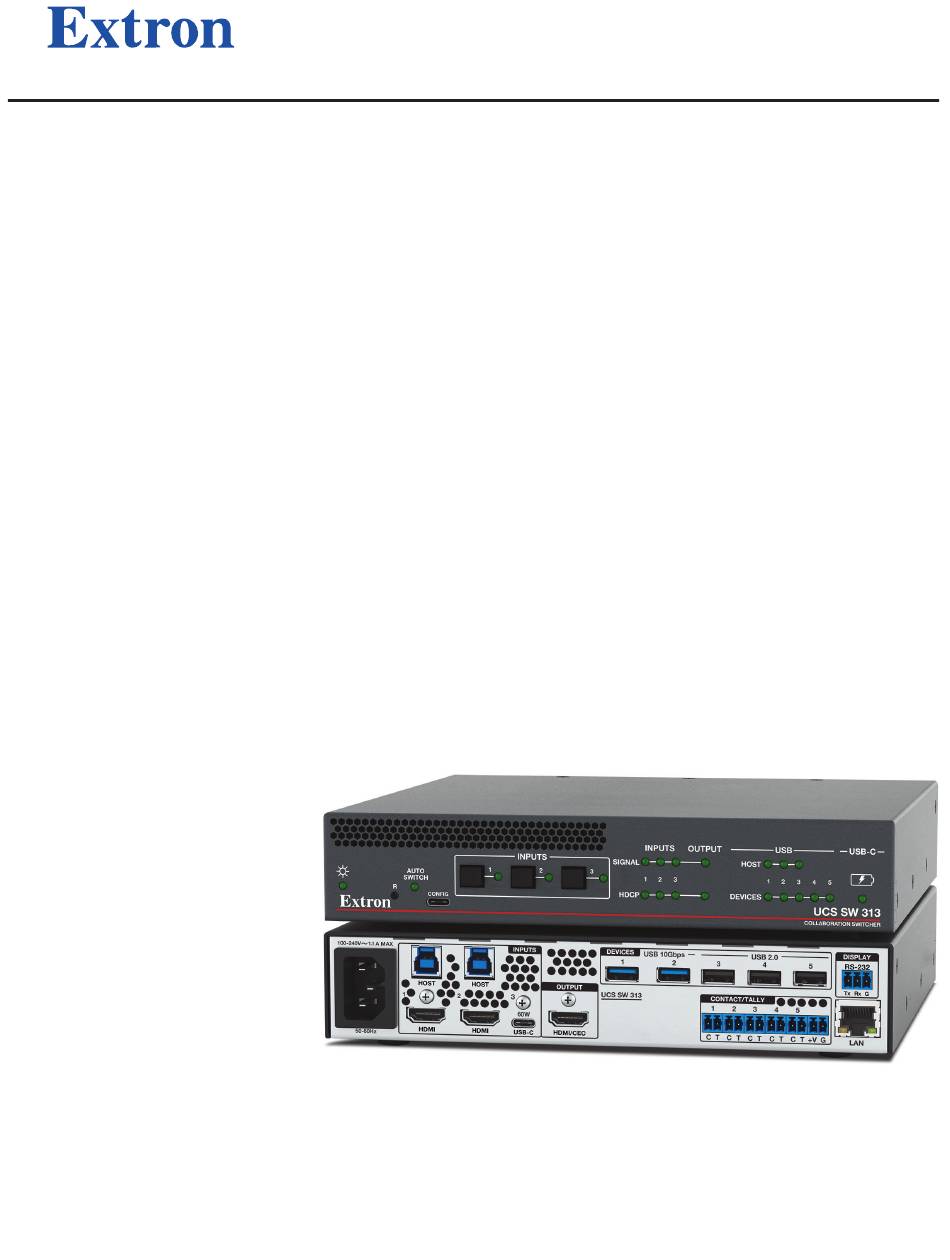

UCS SW 313
Three Input 4K/60 Collaboration
and Presentation Switcher
User Guide
Collaboration Switchers
68-3836-01, Rev. A
05 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCS SW 313 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics UCS SW 313

Summary of Contents for Extron electronics UCS SW 313

  • Page 1 UCS SW 313 Three Input 4K/60 Collaboration and Presentation Switcher User Guide Collaboration Switchers 68-3836-01, Rev. A 05 25...

  • Page 2: Safety Instructions

    Safety Instructions Safety Instructions • English AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une WARNING: This symbol, , when used on the product, is intended to tension électrique dangereuse susceptible de provoquer un choc électrique.
  • Page 3 • 安全说明 简体中文 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电 压， 有触电危险。 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 用的特性等相关内容，敬请访问 Extron 网站 , www.extron.com，参见 Extron 安全 规范指南，产品编号 68-290-01 。 安全記事 • 繁體中文 警告: 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 電壓， 可能會導致觸電之風險。 注意 若產品上使用此符號， 是為了提醒使用者， 設備隨附的用戶手冊中有重要 的操作和維護 （維修） 説明。 有關安全性指導方針、...

  • Page 4: Fcc Class A Notice

    FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Software Commands

    Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0...

  • Page 7: Table Of Contents

    Connecting Using a Show Me Cable ......................10 LockIt HDMI Cable Lacing Bracket Installation ....................10 Wiring the LAN Port ............................11 Connecting Multiple UCS SW 313 Switchers in a System .................12 Operation ............................... 13 Front Panel Features ............................13 Powering on the Switcher ...........................14 Selecting an Input ...............................14...
  • Page 8 Date and Time Panel ............................51 Network Panel ..............................54 Passwords Panel ............................54 Firmware Panel ............................56 Reference Information ......................... 58 Best Practices for Cleaning Your Extron Products .....................58 Mounting the UCS SW 313 ..........................58 Tabletop Use ..............................58 Rack Mounting .............................59 UCS SW 313 • Contents viii...

  • Page 9: Introduction

    Speed (USB 2) while providing 5 V, 500 mA power per port. The compact half-rack width enclosure mounts under a table or desk, or in an equipment rack. The UCS SW 313 simplifies integration of AV sources and USB cameras with Teams and Zoom™...
  • Page 10 Internal Extron Everlast power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost. • Extron Everlast Power Supply is covered by a 7-year parts and labor warranty. UCS SW 313 • Introduction...

  • Page 11: Usb System Architecture

    NOTE: If the host device runs Windows or macOS™ operating systems, use the following programs to view ® the hierarchical relationships between USB devices: • Windows: Device Manager • macOS: System Profiler or System Information UCS SW 313 • Introduction...

  • Page 12: Application Diagrams

    + V +S -S G Ethernet PWR OUT = 6W Extron IPCP Pro 250 xi IPCP Pro xi Control Processor with LinkLicense for User Interfaces Figure 3. Sample Application for UCS SW 313 — Teams Application UCS SW 313 • Introduction...

  • Page 13: Installation

    Installation This section describes the installation and setup of the UCS SW 313 switcher. Topics include: • Installation Overview • Rear Panel Connections • Wiring the CONTACT/TALLY Connectors • LockIt HDMI Cable Lacing Bracket Installation • Wiring the LAN Port •...

  • Page 14: Rear Panel Connections

    LAN port — Connect an Ethernet cable between the computer and the LAN port via a standard Ethernet cable to control and configure the UCS SW 313 via Ethernet (see figure 4, 9. Enable auto-input switching. Use SIS commands to configure auto-input switching (see the...
  • Page 15 RS-232 display control port — Connect this port to the RS-232 connector of a display to control the display. The port can be configured using PCS (see the UCS SW 313 and UCS 303 Help File) to control the display in the following modes 0, 1, or 2 (see the table below).

  • Page 16: Wiring The Contact/Tally Connectors

    60 watts, this port keeps the device functioning but does not charge it. If the source is connected to an external power supply, the UCS SW 313 does not send power to it. HDMI input — Connect an HDMI (or DVI with appropriate adapters) video input source to these female HDMI ports for HDMI video with embedded audio.
  • Page 17 Tally ports are configured via an external control system. • Ports 4 and 5 ( ) — These contact ports can be configured as follows via PCS (see the UCS SW 313 and UCS 303 Help File): • None — contact events broadcast unsolicited SIS responses for action via an external control system.

  • Page 18: Connecting Using A Show Me Cable

    Do not overtighten the HDMI connection mounting screw. The shield to which it is fastened is very thin and can easily be stripped. • Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé. UCS SW 313 • Installation...

  • Page 19: Wiring The Lan Port

    Wiring the LAN Port Ethernet control enables configuration and control of the UCS SW 313 from a remote location using SIS commands (see Command and Response Table for SIS Commands starting on page 26), PCS (see the Internal Web Page...

  • Page 20: Connecting Multiple Ucs Sw 313 Switchers In A System

    Connecting Multiple UCS SW 313 Switchers in a System The USB specification states that a maximum of five hubs (or five UCS SW 313 switchers) can be connected in a series. NOTE: Do not exceed five cascaded hubs and a total of 127 peripheral devices in the entire system.

  • Page 21: Operation

    USB-C Input • • Resetting RS-232 Signal Insertion • Front Panel Lock Mode (Executive Mode) Front Panel Features Figure 10 shows the front panel LEDs and controls of the UCS SW 313. INPUTS OUTPUT USB-C INPUTS SIGNAL HOST AUTO SWITCH...

  • Page 22: Powering On The Switcher

    This can be done via SIS commands (see Auto-switching). NOTE: While the UCS SW 313 is in any auto-switch mode, inputs can still be manually selected via front panel buttons or SIS. This allows the user to switch to any input during usage and not rely on auto-switching.

  • Page 23: Auto-Switching

    Auto-switch Modes The UCS SW 313 switchers provide three auto switch modes, which can be selected via SIS commands (see the Auto-switch Mode commands on page 26) and PCS (see the UCS SW 313 and UCS 303 Help File).

  • Page 24: Resetting

    Putting the switchers in lock mode enhances security by protecting against inappropriate or accidental changes to settings. If a front panel button is pressed during lock mode, all front panel LEDs blink once. UCS SW 313 • Operation...

  • Page 25: Front Panel Lock Mode (Executive Mode)

    EDID Minder The UCS SW 313 uses EDID Minder to ensure that a source device connected to the switcher input continuously sees the EDID of a sink device, even when the input is not selected or the sink is not physically connected. As a result, the video source powers up properly and outputs content when selected.

  • Page 26: Hdcp

    • Automatic — By monitoring the EDID of the sink, the UCS SW 313 switcher determines the best color depth that is supported by the sink. If the color bit depth of the signal is supported, the signal passes unaltered. If the color bit depth is not supported, then the signal is truncated to the maximum supported by the sink.

  • Page 27: Usb-C Input

    Ethernet to RS-232 insertion (see Ethernet to RS-232 Insertion) — A control signal conveying commands from a control device such as an IPCP 250 is applied to the UCS SW 313 LAN port, then routed to the Display RS-232 port. The RS-232 commands are inserted onto the cable connecting the Display RS-232 port to a display.

  • Page 28: Ethernet To Rs-232 Insertion

    Configure this type of insertion as follows: 1. Connect a cable from the control system to the LAN port of the UCS SW 313, directly or via a network. 2. If necessary to match the device to be controlled, configure the RS-232 port protocol (baud rate, parity, data bits, and stop bits) using PCS (see the UCS SW 313 and UCS 303 Help File).

  • Page 29: Captive Screw Signal Insertion

    2069 Ethernet 9600 The insertion port number can be changed using PCS (see the UCS SW 313 and UCS 303 Help File for the procedure). Captive Screw Signal Insertion Figure 13 shows an example of a typical captive screw Ethernet insertion, in which a computer running PCS provides control of a display via the UCS SW 313.
  • Page 30 Typical Captive Screw Insertion to a Display 1. Connect the computer to the LAN port of the UCS SW 313. 2. Connect the RS-232 cable from the UCS SW 313 Display RS-232 connector to the RS-232 port of the display to be controlled.

  • Page 31: Sis Communication And Control

    When the switcher determines that a command is valid, it executes the command and sends a response to the host device. Responses from the UCS SW 313 to the host computer end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string.

  • Page 32: Error Responses

    The conversion table below is for use with the command and response table. ASCII to Hex Conversion Table Space • Figure 14. ASCII to Hex Conversion Table UCS SW 313 • SIS Communication and Control...

  • Page 33: Unsolicited Responses

    E or W = Escape NOTE: Commands are not case-sensitive. For symbol definitions for specific commands, see the command listing in the Command and Response Table for SIS Commands starting on page 26. UCS SW 313 • SIS Communication and Control...

  • Page 34: Command And Response Table For Sis Commands

    = Auto-switch mode 0 = Off or disabled (default) 1 = User-defined priority 2 = Input memory priority X1& = Auto-switch priority 1 = Input 1, 2 = input 2, 3 = input 3 UCS SW 313 • SIS Communication and Control...
  • Page 35 4 = HDMI RGB 444 Limited 5 = HDMI YUV 444 Limited 6 = HDMI YUV 422 Limited 0-500 seconds in 1-second intervals. Default is 3 seconds. = Auto-switch timeout (mode 2) UCS SW 313 • SIS Communication and Control...
  • Page 36 17. X& = 128 or 256 byte EDID raw HEX (text form) from currently assigned EDID Example: 1920x1080 @ 60 Hz. = Native resolution and refresh rate from currently assigned EDID UCS SW 313 • SIS Communication and Control...
  • Page 37 1 = USB 3.x + 2.0 + 4K/30 video (default), 2 = 2.0 + 4K/60 video = DP Alt mode setting 0 to 5 = Device port number 10 = 10 Gbps, 5 = 5 Gbps = USB 3.x port speed UCS SW 313 • SIS Communication and Control...
  • Page 38 Format nnn.nnn.nnn.nnn (Default is 192.168.254.254) Format nnn.nnn.nnn.nnn (Default is 255.255.255.0) = Subnet mask Format nnn.nnn.nnn.nnn (Default is 0.0.0.0) = Gateway address Format nnn.nnn.nnn.nnn (Default is 127.0.0.1) = DNS server address Format 00-05-A6-XX-XX-XX = MAC address UCS SW 313 • SIS Communication and Control...
  • Page 39 View format: Day of week,day•month•year•hour:minutes:seconds (Www,DD•Mmm•YYYY•HH:MM:SS) Example: Fri, 21 Jun 2002 10:54:00 X3& 1-3 (If the NIC number is not applicable to the UCS SW 313, an E13 = Network interface card (NIC) number error message is returned.) Front Panel Lock Mode...
  • Page 40 Model name followed by the last three character pairs of the MAC = Default unit name address. Example: UCS-313-00-02-3D 0 = Off or disabled (default), 1 = Front panel lockout = Front panel lock (executive) mode UCS SW 313 • SIS Communication and Control...
  • Page 41 View the current SIS-over-SSH PMAP {port number} mapping port mapping. KEY: 0 = Off or disabled, 1 = On or enabled (default) = Echo status X3& = Network interface card (NIC) number UCS SW 313 • SIS Communication and Control...
  • Page 42 View status of all tally ports X2(] TALY •... View status of all tally ports. KEY: 1 through 5 = Contact/Tally port number 0 = Open, 1 = Closed = Contact/Tally port state UCS SW 313 • SIS Communication and Control...
  • Page 43 Shown to second decimal place (n.nn) = Firmware boot loader version = Full firmware version n.nn.nnnn Full firmware version with build and any special text (n.nn.nnnn-bnnn) = Full firmware version — advanced UCS SW 313 • SIS Communication and Control...
  • Page 44 Entering this command or performing an absolute system reset via the front panel Reset button (see Resetting page 16) changes the current passwords (whether user-set or the factory-set serial number) to extron. UCS SW 313 • SIS Communication and Control...

  • Page 45: Symbol Definitions For Cec Communications Commands

    X4( = CEC address byte: In the form of percent sign followed by two hex digits Example: = Extron output ( ) to TV ( NOTE: Unless otherwise indicated, commands are not case-sensitive. UCS SW 313 • SIS Communication and Control...

  • Page 46: Command And Response Table For Cec Communications Sis Commands

    = CEC data digits (Example: %2A%07%FF) In the form of a percent sign (%) followed by two hex digits = CEC address byte Example: %E0 = Extron output (14) to TV (0) UCS SW 313 • SIS Communication and Control...
  • Page 47 Four hexadecimal digits in the form of %xx%xx (Example: %32%00) = CEC physical address In the form of percent sign followed by two hex digits = CEC address byte Example: %E0 = Extron output (14) to TV (0) UCS SW 313 • SIS Communication and Control...

  • Page 48: Product Configuration Software

    Product Configuration Software The Extron Product Configuration Software (PCS) offers another way to configure the UCS SW 313 Collaboration switchers via a USB-C connector in addition to the SIS commands. This section describes software installation and communication, along with updating firmware. Topics in this section include: •...
  • Page 49 5. On the Videowall Configuration Software - VCS Download Center screen, click the link to the active VCS version (see figure 17, ). After a few seconds, a link to the VCS installer on your PC appears. Figure 17. PCS Download Center Screen UCS SW 313 • Product Configuration Software...

  • Page 50: Starting Pcs

    Files(x86)]\Extron\Extron PCS. 2. In the Device Discovery panel of the PCS window, click on the name of your UCS SW 313 (see figure 18, (You may need to scroll to locate it, depending on the number of devices listed.) The Connect button ( becomes available.
  • Page 51 PCS screen. When finished viewing the tutorial, click OK to close the screen. The Extron PCS device configuration window opens. Figure 20. UCS SW 313 Device Configuration Window UCS SW 313 • Product Configuration Software...

  • Page 52: Connecting Using The Tcp/Ip Panel

    To connect indirectly to a device through a control processor via an AV LAN: If your UCS SW 313 is connected to an AV LAN, you can connect to it through a control processor such as an Extron IPCP, as follows: 1.

  • Page 53: Updating Firmware

    Extron Technical Support to determine if your product requires a firmware update. You can update firmware using PCS (see the UCS SW 313 and UCS 303 Help File) the UCS SW 313 web page (see Firmware Panel on page 56), or Toolbelt (see the Toolbelt Help File).
  • Page 54 NOTE: When downloaded from the Extron website, by default the Firmware Loader files are placed at C:\Program Files (x86)\Extron\FWLoader. 5. Click the link to the installer file, then follow the instructions on the screens to install the Firmware Loader. UCS SW 313 • Product Configuration Software...

  • Page 55: Updating Firmware Using Firmware Loader

    Figure 24. Successful Connection to the Switcher via Firmware Loader 4. Click Add ( ) at the bottom of the dialog box. The Add Device window closes, and the UCS SW 313 information is added to the Device panel of the Firmware Loader dialog box.
  • Page 56 100%, and Completed is displayed above the progress bar and in the Status column. Close the Firmware Loader dialog box. NOTE: The original factory-installed firmware is permanently available on the UCS SW 313. If the attempted firmware upload fails for any reason, the switcher reverts to the factory version.

  • Page 57: Internal Web Page

    Internal Web Page The embedded UCS SW 313 web page enables you to monitor and adjust certain settings of the UCS through its Ethernet port, connected via a LAN, WAN, or IP over USB, and using a web browser such as Microsoft Edge ®...

  • Page 58: Web Page Components

    The time zone in which the unit is operating (This setting can be configured via the Date and Time panel.) • Uptime — The amount of days and hours the unit has been running • The unit internal temperature in Fahrenheit and Celsius UCS SW 313 • Internal Web Page...

  • Page 59: Date And Time Panel

    NOTE: The Set Date & Time field must be set to Manual. If it is set to Sync to NTP Servers, the SYNC to PC button is unavailable. Click EDIT, then select the Manual radio button and click SAVE (see Syncing to NTP servers on page 53). UCS SW 313 • Internal Web Page...
  • Page 60 Date and Time fields and type in the time, or click the Datepicker (see figure 31, ) or the Timepicker ( ) icon to display the following panels: Figure 31. Datepicker and Timepicker Screens UCS SW 313 • Internal Web Page...
  • Page 61 ) to confirm them, or CANCEL to close the dialog box without implementing the settings. Syncing to NTP servers To set the date, time, and time zone by syncing the UCS SW 313 with a network server: Figure 32. Syncing the UCS SW 313 to Network Servers 1.

  • Page 62: Network Panel

    In the Network panel you can set the hostname, IP address, subnet mask, and gateway address for your UCS SW 313, and turn DHCP on and off. You can also view the MAC address of the unit. To set the IP addresses: 1.
  • Page 63 ). (You may need to click this button again to make it available.) The UCS SW 313 web page closes and the login page is displayed. 5. Enter the username (the default is Admin) and the new password to access the UCS SW 313 web page. Assigning a user password (optional) 1.

  • Page 64: Firmware Panel

    Figure 36. SELECT FILE Button on the Firmware Panel 2. In the Open dialog box, browse to locate the new firmware file on your computer (by default the file is stored at C:\Program Files (x86)\Extron\Firmware). Figure 37. Open Window for UCS SW 313 Firmware ATTENTION: •...
  • Page 65 When the update is complete, the unit restarts, and the login web page is displayed. After you log in, the new firmware filename appears under Current Version in the Firmware panel of the web page. UCS SW 313 • Internal Web Page...

  • Page 66: Reference Information

    • L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié. Tabletop Use Attach the provided four self-adhesive rubber feet to the UCS SW 313 for tabletop use. Place the switcher where desired. UCS SW 313 • Reference Information...

  • Page 67: Ul GUidelines For Rack Mounting

    Rack Mounting The UCS SW 313 switcher can be mounted on a full- or half-rack shelf, or through or under furniture. Mounting kits are available at www.extron.com. For mounting procedures, see the instructions provided with the mounting option. UL guidelines for rack mounting The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the UCS SW 313 in a rack.

  • Page 68: Extron Warranty

    Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
