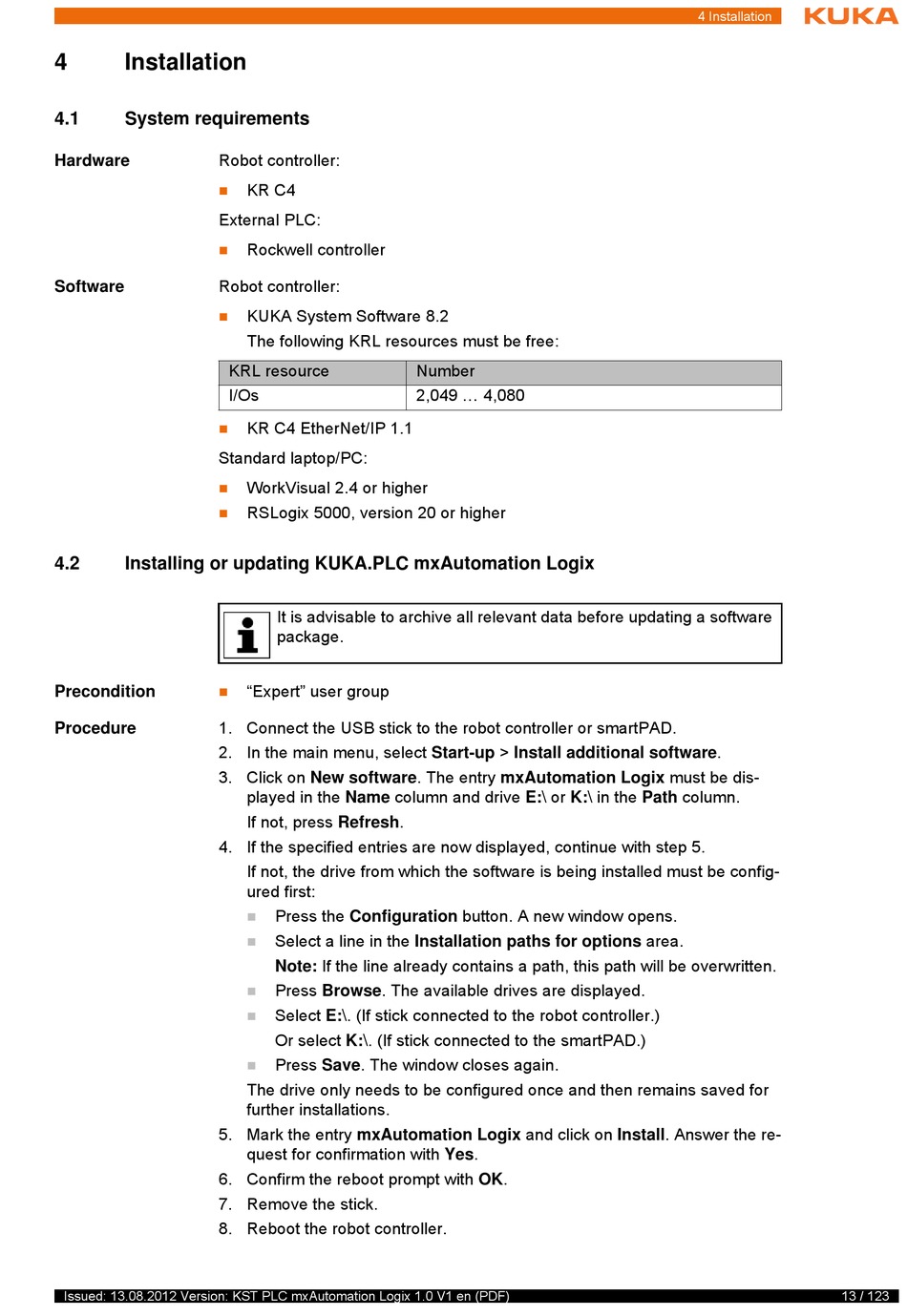

Installation

4.1

System requirements

Robot controller:
Hardware

External PLC:

Robot controller:
Software


Standard laptop/PC:


4.2

Installing or updating KUKA.PLC mxAutomation Logix

Precondition 
1. Connect the USB stick to the robot controller or smartPAD.
Procedure
2. In the main menu, select Start-up > Install additional software.
3. Click on New software. The entry mxAutomation Logix must be dis-
4. If the specified entries are now displayed, continue with step 5.
5. Mark the entry mxAutomation Logix and click on Install. Answer the re-
6. Confirm the reboot prompt with OK.
7. Remove the stick.
8. Reboot the robot controller.
Issued: 13.08.2012 Version: KST PLC mxAutomation Logix 1.0 V1 en (PDF)
KR C4
Rockwell controller
KUKA System Software 8.2
The following KRL resources must be free:
KRL resource
I/Os
KR C4 EtherNet/IP 1.1
WorkVisual 2.4 or higher
RSLogix 5000, version 20 or higher
It is advisable to archive all relevant data before updating a software
package.
"Expert" user group
played in the Name column and drive E:\ or K:\ in the Path column.
If not, press Refresh.
If not, the drive from which the software is being installed must be config-
ured first:
Press the Configuration button. A new window opens.

Select a line in the Installation paths for options area.

Note: If the line already contains a path, this path will be overwritten.
Press Browse. The available drives are displayed.

Select E:\. (If stick connected to the robot controller.)

Or select K:\. (If stick connected to the smartPAD.)
Press Save. The window closes again.

The drive only needs to be configured once and then remains saved for
further installations.
quest for confirmation with Yes.
Number
2,049 ... 4,080
4 Installation
13 / 123
