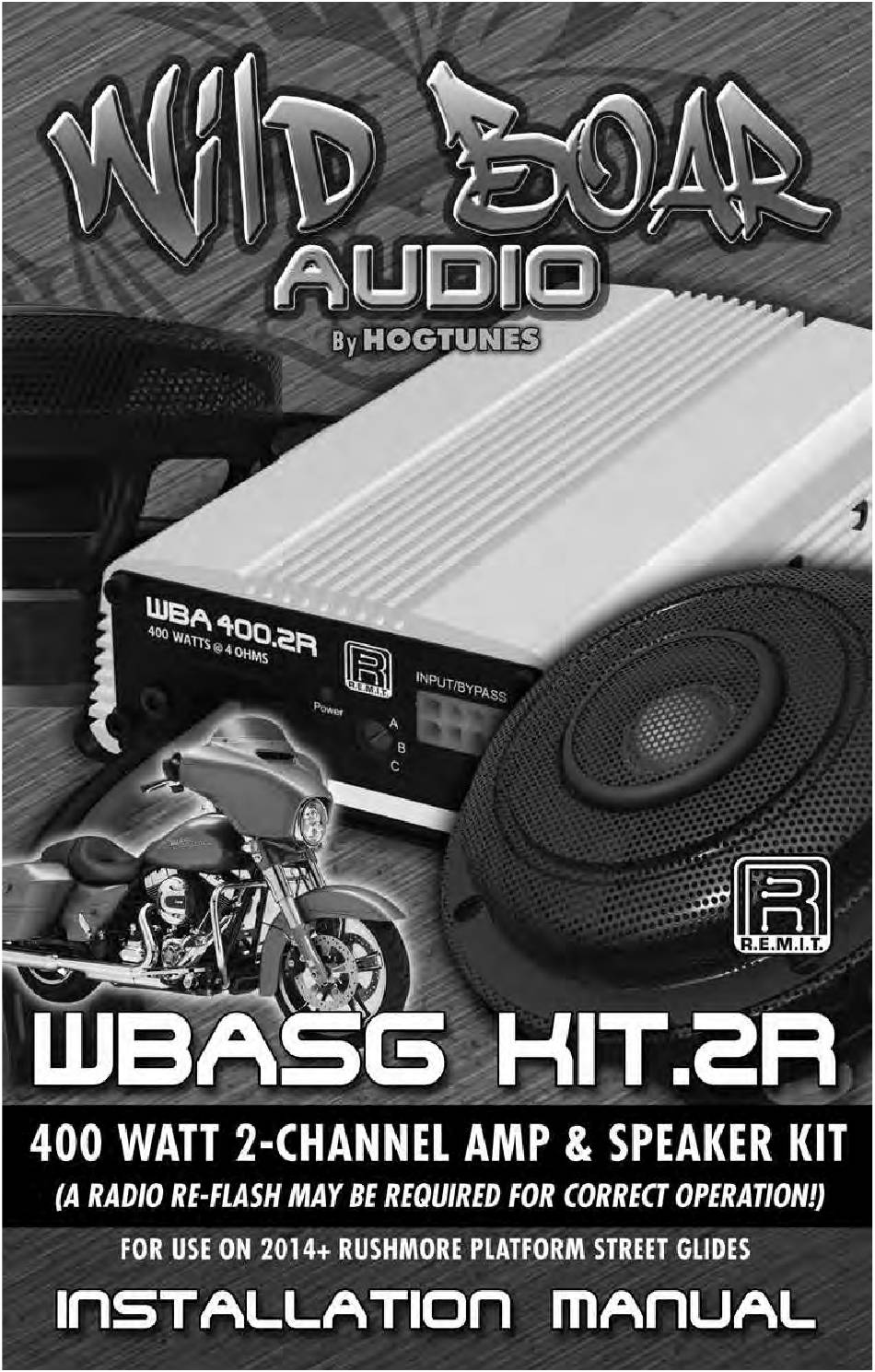

- Page 2 Thank you for choosing the Hogtunes Wild Boar Audio WBASG Kit.2R for 2014+ Rushmore Platform Street Glides. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
-
Page 3: Speaker Installation
se ct io n 1 SP EA KER I NS T A LLA T I ON Step #1: Remove the bikes seat, and undo the main (+ and -) connectors from the battery. Remove the outer fairing/headlamp assembly and set aside. Refer to a service manual if you need help with this. - Page 4 Step #3: Installing the Speaker: With the cabinet removed from the bike, undo the 4 screws that hold the factory speaker to the cabinet and put these screws aside. Pull the factory speaker away from the cabinet and carefully take off each speaker wire by un-doing one at a time.
-
Page 5: Amplifier Installation
se cti on 2 A M PLI FI E R I N S T A LLA T I ON Step #1: Over top of the radio, pull up to release each wire harness from the black plate via the factory “Christmas tree” fasteners. If your bike has factory GPS, the small square antenna will need to be relocated just behind the voltmeter as shown in Fig 1.1 below. - Page 6 Step #4: On the back of each speaker cabinet, you will see pink wires that go to a plug. Separate these plugs on each side of the bike noting they may still be undone from when the speakers were installed. From the amp, take the 2 pin plug with blue heat shrink and install it into the plug going into the brake side speaker cabinet.
- Page 7 s e ct ion 3 R OUTING T H E P O WE R H AR NES S Locate the main power harness and plug it into the matching “pig-tail” on the side of the amp. The balance of the main wire harness will pass under the inner fairing where the main wire harness passes through on the brake side of the bike.
- Page 8 se ct io n 4 RA DI O FL A S H I NFO R M AT IO N This section is VITAL to the correct operation of the system, please make sure you read and understand it, or contact us! The correct flash required for this system is the exact same one that comes in Ultra Classics (non CVO Models).
- Page 9 F ina l i n st a l l at ion Not e s Many users will store music on a hand held type player and use that as the music source for the bikes audio. PLEASE NOTE: If you “borrow” music files from certain sites, they typically sound VERY POOR.
- Page 10 w i ri ng g uid e WBA 400.2R QUICK REFERENCE WIRING GUIDE (IF ONLY AMP ON BIKE) Note: From the factory, the plugs at indicators “A” and “B”, and “C” and “D” are plugged together but get separated for this install. Amplifiers Clutch Side Input (Yellow Heatshrink) Amplifiers Clutch Side Output (Brown Heatshrink) Amplifiers Brake Side Input (Green Heatshrink)
- Page 11 Please contact Hogtunes head office for all warranty claims. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Hogtunes sole discretion. Hogtunes/Wild Boar Audio’s complete warranty policy is available on our website at www.hogtunes.com...
- Page 12 Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting or playing your stereo at high volume, especially in traffic. You are a valued customer so please: Ride Alert Arrive Alive! www.wildboaraudio.com www.hogtunes.com...
