Summary of Contents for Hogtunes 225 SG

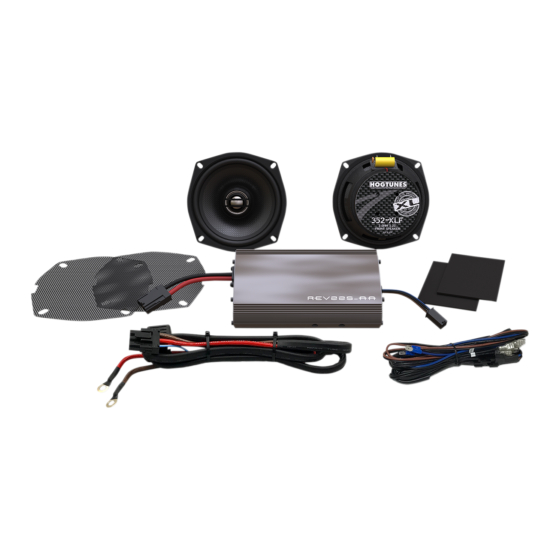

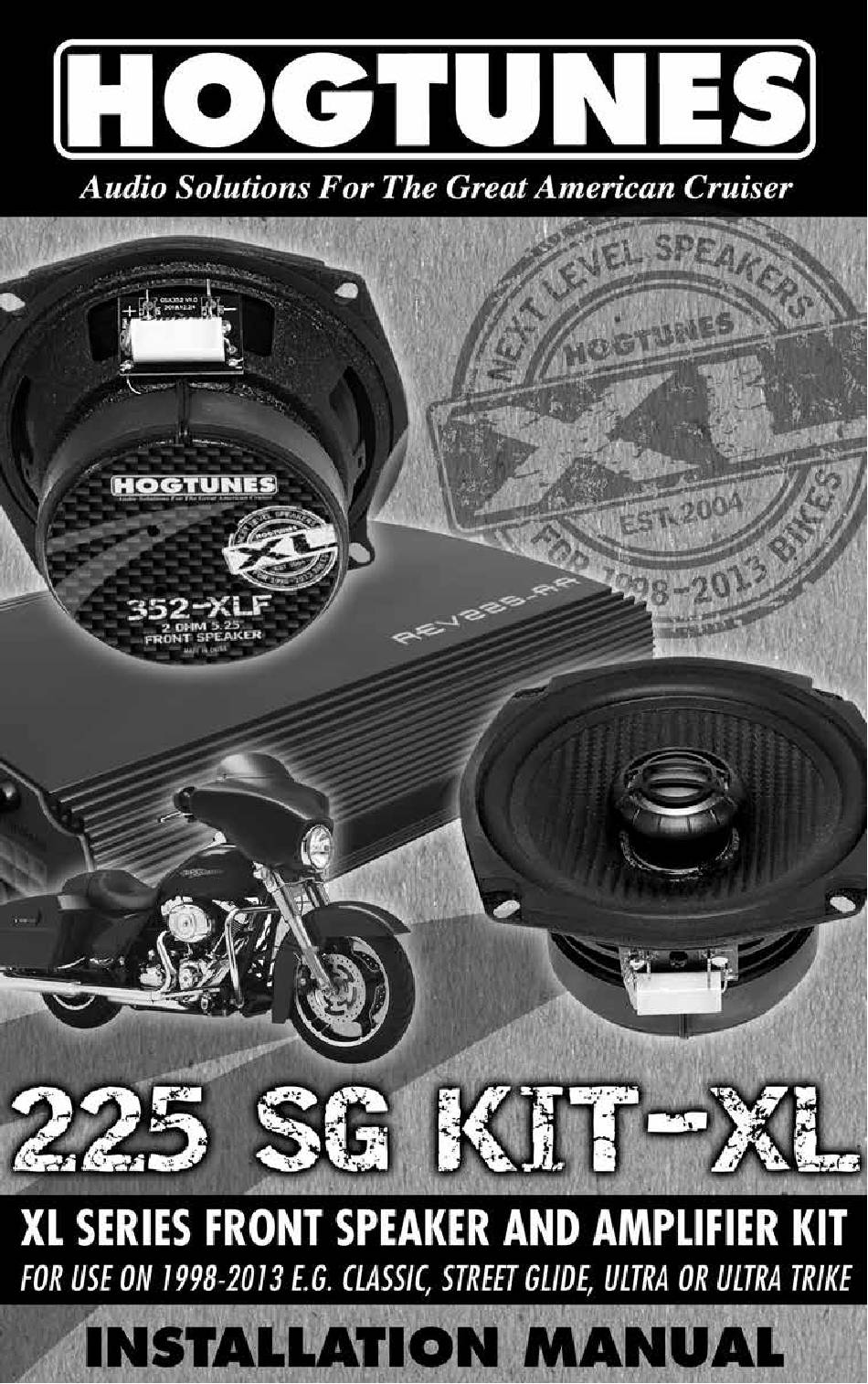

- Page 2 Thank you for choosing the Hogtunes 225 SG KIT-XL for 1998-2013 FLH (Batwing) Model Bikes. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
- Page 3 352-XLF Front Speaker InStaLLatIon InStructIonS Step #1: Make sure your ignition switch stays in the “OFF” position. Remove your outer fairing/ headlamp assembly, and set aside. Refer to a service manual if you need help with this. It’s always a good idea to have a towel or something similar on your front fender to avoid dings or scratches if anything is dropped—this can and most likely will happen! Step #2: Take the 2 wires off each speaker by gently pulling one at a time.
- Page 4 rev 225-aa ampLIFIer InStaLLatIon InStructIonS Step #: 1 Locate the main power harness and plug it into the matching connector on the amplifier. Locate the 8 pin harness and plug it into “Audio Input” on the side of the amp. Locate the 4 pin harness ending in a black plug and plug it into the black 4 pin connector on the amp.
- Page 5 Wiring the Amplifier Step #1: On the audio input harness, locate the yellow and black wires and plug them into the factory speaker wires on the clutch side of the bike. Locate the green and black wires on the same harness and plug them into the factory speaker wires on the brake side of the bike.
- Page 6 King Tour-Pak. Depicted is a bike with dual REV 225-AA amplifiers. Using Hogtunes “2CHSP” mounting plate, the second amp easily installs between the brake side speaker and the radio. 100% bolt in, 100% plug &play. See the next 3...
-
Page 7: System Upgrade
This system is an easy way to add rear speakers to your bike if you’ve added a King Tour-Pak®. Hogtunes rear speaker pods come with a wire harness set up for quick detach Tour Paks that will plug right into the expansion port on the amp. - Page 8 This system has the incredible power of 2 REV 225-AA Amplifiers to the bike! The first amp will run the 5.25” fairing speakers and HF-1 Tweeter Pod (if present). The second amplifier is used to power Hogtunes 692.2/Lids, FL-7W fairing lower woofers or rear Tour Pak speakers.
- Page 9 This can be done at any time, all bolt in, all plug and play! Hogtunes 2CHSP mounting plate is required to bolt the REV 225-AA into the fairing.
- Page 10 AVC position works and sounds best. This new amplifier has been specifically set-up for this radio setting. 3) This Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs.
-
Page 11: Technical Specifications
Harley-Davidson, Electra Glide, Road Glide, Street Glide, Ultra Classic, Tri Glide, CVO, Screamin Eagle and Tour- Pak® are Trademarks, and/or Registered Trademarks of Harley-Davidson, Inc., Milwaukee, Wisconsin, USA, and if Used or Implied are for Reference Only. There is No Affiliation Between Harley-Davidson, Inc., and Hogtunes Inc. - Page 12 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting, or playing your stereo at high volume, especially in traffic. you are a valued customer so please:...
