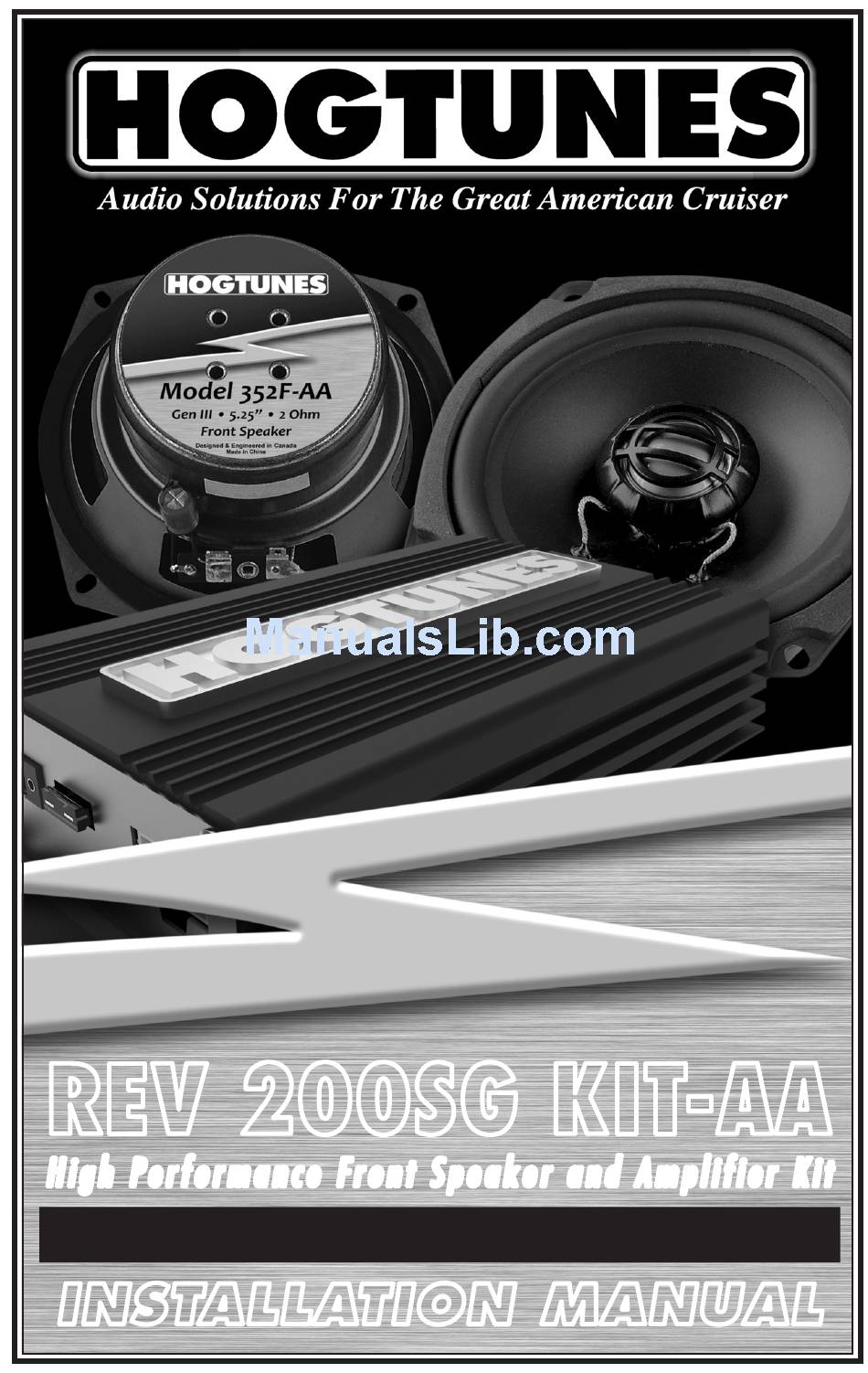

rev 200SG KIT-AA
rev 200SG KIT-AA
H i g h P e r f o r m a n c e F r o n t S p e a k e r a n d A m p l i f i e r K i t
H i g h P e r f o r m a n c e F r o n t S p e a k e r a n d A m p l i f i e r K i t
For Use on 1998-2013 "batwing" model bikes with Factory radios
installation Manual
installation Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hogtunes Rev 200SG KIT-AA
Summary of Contents for Hogtunes Rev 200SG KIT-AA
- Page 1 200SG KIT-AA rev 200SG KIT-AA H i g h P e r f o r m a n c e F r o n t S p e a k e r a n d A m p l i f i e r K i t H i g h P e r f o r m a n c e F r o n t S p e a k e r a n d A m p l i f i e r K i t For Use on 1998-2013 “batwing”...
- Page 2 Thank you for choosing the Hogtunes REV 200SG Kit-AA for 1998-2013 “Batwing” Model Bikes. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
-
Page 3: Getting Started
Undo the screws that attach each speaker/grill assembly to the inner fairing and remove. Pull the stock speaker out of each grill assembly. Step #4: “Clip” the Hogtunes speaker into each grill assembly. Position your new speaker/grill assembly onto the inner fairing and re-attach each one using the OE screws. - Page 4 aMplifier wiring diagraM Brake-side factory Clutch-side factory speaker wire plugs into speaker wire plugs into green/black on amp yellow/black on amp Orange wire goes to center pin on cigarette lighter Power and ground DIRECT to battery Blue/Black Brown/Black wire plugs wire plugs into Brake into clutch-...
- Page 5 wiring the aMplifier Step #1: Locate the main power harness and plug it into the matching connector on the amplifier. Locate the 8 pin harness and plug it into “Audio Input” on the side of the amp. Step #2: • On the audio input harness, locate the yellow/black pair of wires with the male connectors.
- Page 6 routing the power harness For ‘98-’06 bikes, the power harness will pass under the inner fairing where the throttle and idle cables pass through on the brake side of the bike. The harness is designed to be routed between the frame backbone and gas tank on the brake side of the bike and come out just behind the gas tank.
-
Page 7: System Upgrade
This system is an easy way to add rear speakers to your bike if you’ve added a King Tour-Pak®. Hogtunes rear speaker pods come with a wire harness set up for quick detach tour paks that will plug right into the expansion port on the amp. - Page 8 The second amplifier is used to power a set of 692.2/Lids, FL-7W fairing lower woofers or rear tour pak speakers. For all Standard/Classic/Ultra/Street Glide models, the purchase of Hogtunes 2CHSP adaptor kit is required! The metal plate in that kit is used to bolt the second amplifier into your fairing between the brake side speaker and radio.
- Page 9 This can be done at any time, all bolt in, all plug and play! Hogtunes 2CHSP mounting plate is required to bolt the REV 200-AA into your fairing.
- Page 10 AVC position works and sounds best. Your new amplifier has been specifically set-up for this radio setting. 2) Your Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs.
-
Page 11: Technical Specifications
Your amplifier’s Serial # Here_________________________ Hogtunes speakers are warranted for a period of 20 years. The REV 200-AA Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer and is not transferable. - Page 12 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting, or playing your stereo at high volume, especially in traffic. You are a valued customer so please:...
