Summary of Contents for Titon TP325

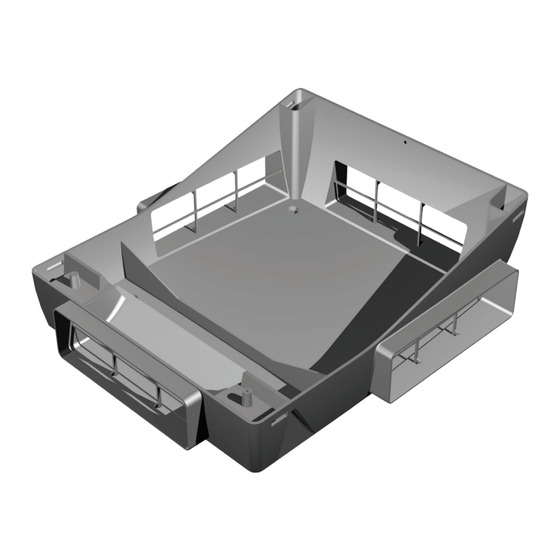

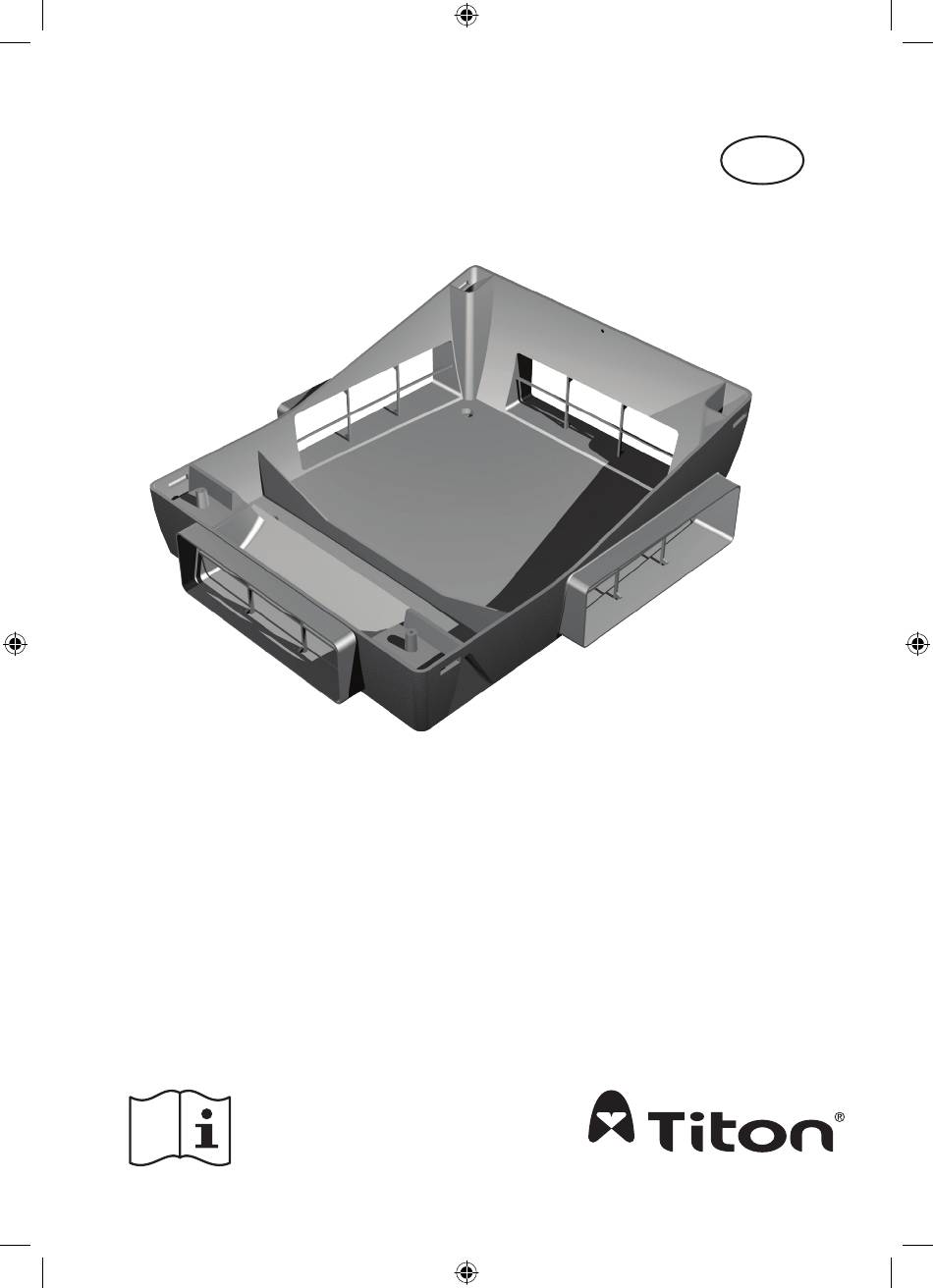

- Page 1 First Fix Base TP325 Product Manual ventilation systems...
- Page 2 Warnings, Safety information and Guidance Important Information Important: read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitable competent person and be car- ried out in clean, dry conditions where dust and humidity are at minimal levels.
- Page 3 11. The appliance is not suitable for installation to the exterior of the dwelling. 12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Table Of Contents
Contents Warnings, Safety information and Guidance Important Information 2 Product Overview Dimensions 6 Component Identification 7... -
Page 5: Product Overview
Product Overview This booklet is required for the first part of a two stage installation of one of the following Units: CME1 TP350 ƒ CME1 Q Plus TP301A ƒ CME1 Q Plus TP301HA ƒ CME2 Q Plus TP303A ƒ CME2 Q Plus TP303HA ƒ... -
Page 6: Dimensions 6
Dimensions This diagram details the overall size of the unit and the additional space required around the unit to allow for commissioning and future servicing and maintenance. Service Void All dimensions in mm... -
Page 7: Component Identification 7
Component Identification Cover / Scroll / Inlet Ring assembly Supplied as second fix. Base... -
Page 8: Packaging Contents 8
Packaging Contents Inspect the unit when taking delivery. Check the unit for damage and that all accessories have been supplied. The box contains: CME Base x 1. ƒ Port covers x 3. ƒ This Product manual x 1. ƒ All shortages or damage must be immediately reported to the supplier. -
Page 9: Notes 9
Notes... -
Page 10: Installation
Installation Fixing The unit must be securely fixed to a smooth flat surface, any orientation is possible. Mark the four fixing hole centres using the Base as a template. Drill holes for fixings, use 4mm Pan Head screws. Always use a fixing type and length suited to the substrate type. -
Page 11: Ducting Connections 11
Ducting Connections Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom. - Page 12 10. All insulation to be the equivalent of at least 25mm of insulating material with a thermal conductivity of 0.04 W/(mK). 11. Ducting must be installed in such a way that resistance to airflow is minimised. 12. Ducting connected to the Extract Port to Outside must be to the external air outside the building envelope.
-
Page 13: How To Convert Port Cover 13
How to Convert Port Cover To enable fitment of 110 x 54mm ducting, modify the Convertible Port Cover by tearing out the ‘rip strip’ . When using the convertible port cover ensure the tear out section is completely removed. -
Page 14: Wiring 14
Wiring The installer must be aware which specific model has been specified before commencing installation of the wiring. TP350 CME1 ƒ CME1 Q Plus TP301A/301HA ƒ TP 303A/303HA/TP313A/TP313HA CME2 & 2.1 Q Plus ƒ CME2 & 2.1 Q Plus LS TP305HA/TP313HALS ƒ... - Page 15 Two Way switch Double Pole Isolator 3A Fuse Two Way switch Wiring Diagram for Continuous and Boost Speeds 1, 2 or 3 EE 155 Double Pole Isolator 3A Fuse Two Way switch Wiring Diagram for Continuous Speed 1,2 or 3 and Boost Speed 4 EE 156 Double Pole Isolator 3A Fuse...
- Page 16 The installer must be aware which specific model has been specified before commencing installation of the wiring. TP350 CME1 ƒ CME1 Q Plus TP301A/301HA ƒ TP 303A/303HA/TP313A/TP313HA CME2 & 2.1 Q Plus ƒ CME2 & 2.1 Q Plus LS TP305HA/TP313HALS ƒ...
-
Page 17: Cme1 Q Plus Tp301A/301Ha 17
CME1 Q Plus TP301A/301HA CME2 &2.1 Q Plus TP303A/303HA TP 303A/303HA/TP313A/ TP313HA Double Pole Isolator 3A Fuse Supply Wiring Diagram 230V~50/60Hz ref EE 141 Volt-free boost switching of CME controller PCB using single-pole switches TP 502, TP 503, TP 507 1 2 3 and/or TP500 / TP501 Humidistat. - Page 18 Volt-free setback switch or Volt-free setback switching of CME normally open relay contacts controller PCB using single-pole latching switch and / or volt-free normally open relay contacts. To avoid the unit being inadvertently left in Setback Mode, it is recom- mended that only one latching switch is tted.
- Page 20 The installer must be aware which specific model has been specified before commencing installation of the wiring. TP350 CME1 ƒ CME1 Q Plus TP301A/301HA ƒ TP 303A/303HA/TP313A/TP313HA CME2 & 2.1 Q Plus ƒ CME2 & 2.1 Q Plus LS TP305HA/TP313HALS ƒ...
-
Page 21: Cme2 & 21 Q Plus Ls Tp305Ha/Tp313Hals 21
CME2 & 2.1 Q Plus LS TP305HA/TP313HALS All Pole Isolator 3A Fuse Supply Wiring Diagram 220-240V~ 50-60Hz ref EE 184 All Pole Isolator Boost Setback 3A Fuse Boost and Setback switching ref EE 186... - Page 22 Switch P TP508 3 P otary Switch U2 U3 1 - Setback Speed 2 - Con 3 - Boost Speed All Pole Isolator 3A Fuse Three position Rotary Switch TP 508 switching and connection ref EE 185...
- Page 24 The installer must be aware which specific model has been specified before commencing installation of the wiring. TP350 CME1 ƒ CME1 Q Plus TP301A/301HA ƒ TP 303A/303HA/TP313A/TP313HA CME2 & 2.1 Q Plus ƒ CME2 & 2.1 Q Plus LS TP305HA/TP313HALS ƒ...
-
Page 25: Cme21 Q Plus Tp313Ch 25
CME2.1 Q Plus TP313CH 3A Fuse All Pole Isolator Supply Wiring Diagram 230V~50/60Hz Volt-free boost switching of unit’s controller PCB using single-pole switches TP 502, TP 503, TP 507 and/or TP500 / TP501 Humidistat. TP500/TP501 There maximum of 10 single pole switches or humidistats that can used. - Page 26 Volt-free setback switching of the unit’s controller PCB using single- pole latching switch and / or volt-free normally open relay contacts To avoid the unit being inadvertently left in Setback Mode, it is recom- mended that only one latching switch is tted. Volt-free setback switch or normally open relay contacts Setback Switch connection...
- Page 27 +V(5V) +V(5V) Connection of auralite...
- Page 28 This Product Manual must be kept in the Home Information Pack. MARKE TING DIVISION International House, Peartree Road, Stanway, Colchester, Essex CO3 0JL Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2022 TITON DO 5312 Issue 02...
