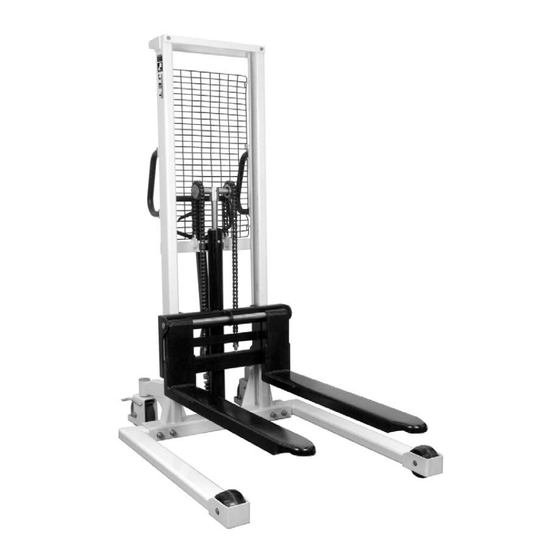

- Page 1 Operating Instructions and Parts Manual Hydraulic Stacker Model JHS-2200A 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-140531 Ph.: 800-274-6848 Revision B2 08/2014 www.jettools.com Copyright © 2014 JET...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
JHS-2200A Hydraulic Stacker. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Safety Warnings
Do not exceed load center capacity of stacker. Load center is measured horizontally from back of forks or platform. See Figure 1. The load center (A) is 20-inches on the JHS-2200A Stacker. Overall length of load must never be more than twice the load center capacity. -
Page 5: Specifications
Shipping weight ........................558 lb (253kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET, reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Setup And Assembly
6.0 Setup and assembly 7.0 Operation Number in parentheses refers to corresponding Insert both forks evenly and completely under number in parts breakdown. load. Load must be distributed equally on both Remove all packing material from stacker. forks and centered toward the mast. Do not allow more than half the load to extend beyond To assemble forks, remove one of the snap load center. -
Page 7: Troubleshooting Jhs-2200A Hydraulic Stacker
9.0 Troubleshooting JHS-2200A Hydraulic Stacker Number in parentheses refers to corresponding number in parts breakdown, section 10.1.1 Trouble Probable Cause Remedy Fork will not lift to Hydraulic oil level is low. Fill with hydraulic oil. maximum height. Oil level is low, or oil is too viscous. -
Page 8: Jhs-2200A Mast Assembly - Exploded View
10.1.1 JHS-2200A Mast Assembly – Exploded View... -
Page 9: Jhs-2200A Mast Assembly - Parts List
10.1.2 JHS-2200A Mast Assembly – Parts List Index No Part No Description Size 1 ....JHS2200-1 ....Fork........................ 2 3 ....JHS1100-2 ....Adjusting Screw ..................... 2 4 ....JHS2200A-4 ....Mounting Plate ....................1 5 ....JHS2200A-5 ....Snap Ring ..............30mm ......6 6 .... - Page 10 131 .... JHS2200A-131 ..Bushing ......................2 132 .... JHS1100-72A .... Wheel Cover ....................2 ....PT2748J-JET .... JET Logo Label ............2-5/8” x 7-1/2” ....2 ....JHS2200A-ID .... ID/Warning Label ................... 1 ....JWS-FW ....Fork Warning Label ..................2...
-
Page 11: Jhs-2200A Pump Assembly - Exploded View
10.2.1 JHS-2200A Pump Assembly – Exploded View... -
Page 12: Jhs-2200A Pump Assembly - Parts List
10.2.2 JHS-2200A Pump Assembly – Parts List Index No Part No Description Size ....JHS2200A-PA ... Pump Assembly (includes #86-133) ..............86 ....JHS1100-86 ....Bolt......................... 1 87 ....JHS1100-87 ....Spring Cap ..................... 1 88 ....JHS1100-88 ....Spring ......................1 89 ....
