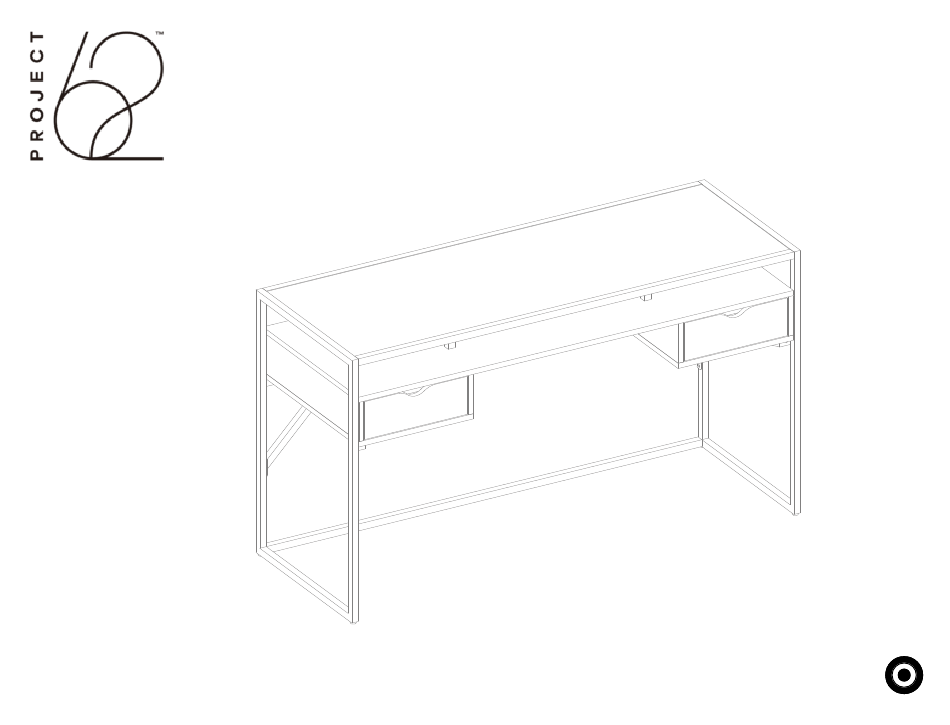

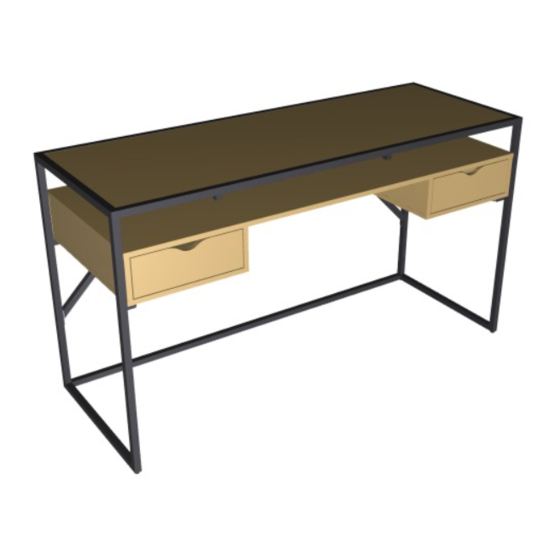

- Page 1 ADA Large Desk Style #: TGTD54-1 DPC-item #: 249-14-0270 >> Assembly instructions © 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 hardware (H1) x 16 (H2) x 6 (H3) x 18 (H4) x 1 (H5) x 1 1/4” x 13mm bolt 1/4” x 30mm bolt M4 x 12mm hex wrench tipping restraint hardware kit pan head screw (inside plasticbag) Spare hardware...
- Page 4 exploded diagram ITEM DESCRIPTION Top panel Left side frame Right side frame Drawer box Back upper stretcher Drawer box support Back side brace Back bottom stretcher Top stretcher Desk top support...
- Page 5 step 1: attach the back stretchers to the right side frame NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. The threaded holes for drawer box supports face the front of the unit.
- Page 6 step 2: attach the top stretchers to the right side frame The metal tabs are located at the bottom and face inward. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts.
- Page 7 step 3: attach the left side frame to the previous assembly NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H4) x 1 1/4”...
- Page 8 step 4: attach the desk top supports to the top panel NOTE: DO NOT use power tools. (H3) x 8 M4 x 12mm pan head screw 4.1. Using the pilot holes as a guide, attach two desk top supports (J) to the top panel (A) with eight 12mm pan head screws (H3).
- Page 9 step 5: attach the top panel to the previous assembly NOTE: Try working from one end to the other to slide the top panel (A) into The top supports are located at front of the unit. place. You may need to push or pull the top stretchers and side frames slightly to get them to align with the holes.
- Page 10 step 6: attach back side braces NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H4) x 1 1/4”...
- Page 11 step 7: prepare drawer box assembly (H2) x 2 (H4) x 1 1/4” x 30mm bolt hex wrench 7.1. Ask for assistance from another adult, exercise caution and place the drawer box (D) onto the back upper stretcher (E) properly. 7.2.
- Page 12 step 8: attach drawer box supports NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H4) x 1 1/4”...
- Page 13 step 9: fasten the drawer box NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H2) x 4 (H4) x 1 1/4”...
- Page 14 step 10: attach tipping restraint hardware Connector Wooden stud Wall Short screw Wall (H5) x 1 tipping restraint hardware kit (inside plasticbag) Floor leveler Metal bracket Long screw Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 10.1.
-
Page 15: Care And Maintenance
Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage the finish. •... - Page 16 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: ADA Large Desk MODEL # TGTD54-1 MAXIMUM LOAD 45.4 kg / 100 lb MAXIMUM LOAD 13.6 kg / 30 lb MAXIMUM LOAD 4.5 kg / 10 lb...
- Page 17 The maximum recommended weight allowance is 45.4 kg / 100 lb for desk top. The maximum recommended weight allowance is 13.6 kg / 30 lb for open storage shelf. The maximum recommended weight allowance is 4.5 kg / 10 lb for drawer. Death or serious injury may occur when children climb on audio and/or video equipment furniture.
- Page 18 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
