BGS technic 3236 Quick Start Manual

Safety

• Read these instructions carefully and completely
before assembling or using the device.
• Always wear a TÜV-approved safety glasses.
• Make use before you determine that all components of the device firmly mounted.
• Only use compressed air wich the maximum pressure value of the tool do not exceed.
• Check the appliance on loose parts, fragile components, and other phenomena that could affect
the proper function.
• Have defective equipment repaired before use.

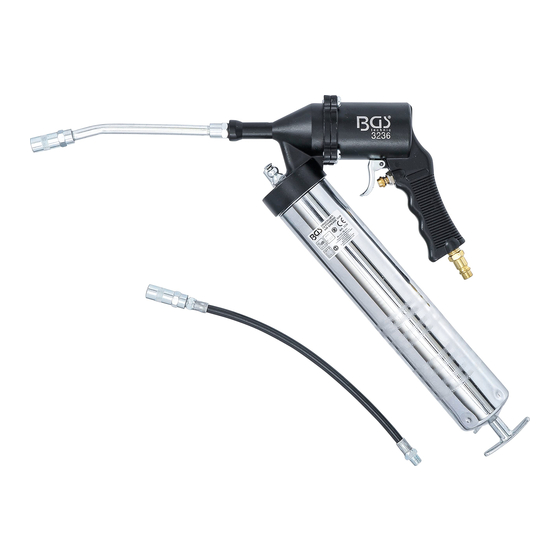

This grease gun is an air pressure tool which is ideal for lubricating greases and it is suitable for
transport tools, agricultural machinery, garden equipment, automobiles, industrial machinery.
The air grease gun has a precision trigger, which reduces the trigger pressure and thus ensures an
easy and pleasant dose of fat.
The gun is very handy and allows for easy working.
The special design also allows work in very narrow structures.
The grease gun can be filled with a cartridge or a bucket pump.
The special cylinder prevents the unwanted escape of excess grease fluid.

Technical Data

Working Pressure: 6.2 bar (90 psi)
Noise: LpA = 85.1 db(A) / LwA = 96.1 db(A)
Vibration: ahd = 0.51 m/s² / K = 0.55 m/s²
Adapter
Pipe
SW-Stahl und Werkzeugvertriebs GmbH
L e v e k r u s r e t S a r s s e 6 5
D 4 - 2 8 9 7 R e m s c h e d i
Air Grease Gun
Cartridge
Cylinder
Driving
Plate
Tel. +49 (0) 2191 / 46438-0
F ax +49 (0) 2191 / 46438-40
- E M a : l i

Precisions

n i o f @ s w s a t l h d . e
Art. 3236
Trigger
Handle
Air Pressure
Adapter
Piston Rod
