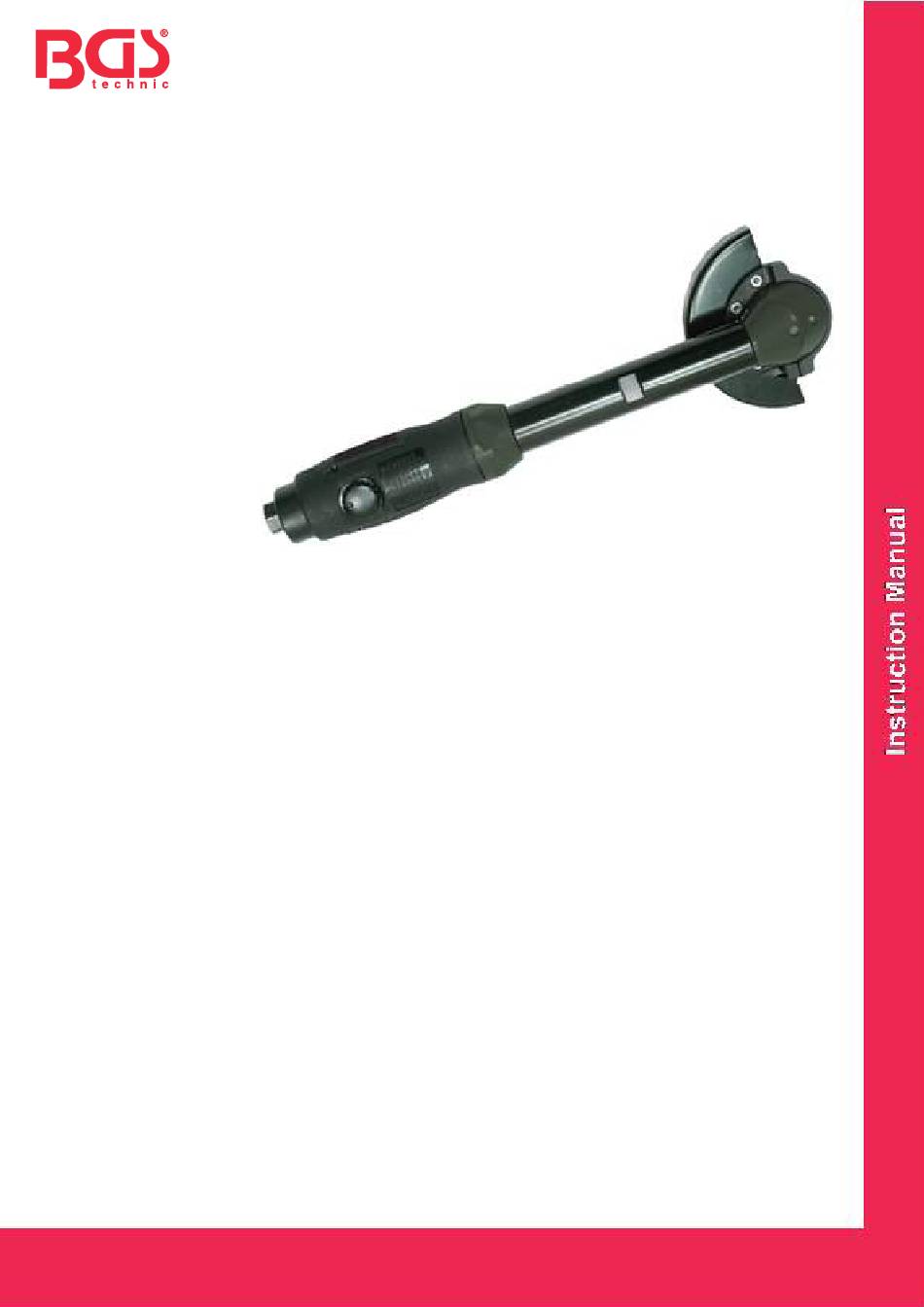

BGS technic 3268 Quick Start Manual

SPECIFICATION

Disc Size: Ø 100 mm, Bore: Ø 16 mm
Max. Speed: 15,000 rpm
Max. Pressure: 90 psi (6.2 bar)
Air Inlet: 1/4"
Recommended Hose: Ø 10 mm
Length: 376 mm
Weight: approx. 1.4 kg
Noise: LpA = 85 dB(A)
LwA = 88 dB(A)
Vibration: K = 0.6 m/s²

Safety rules

1. Always wear approved eye protection.
2. Have throttle (trigger) in "OFF" position when connecting to air supply.
3. Disconnect tool before performing service or when not in use.
4. Always use tool in a safe distance from other people in work area.
5. Maintain tools with care. Keep tools clean and oiled for best and safest performance. Follow
instructions for lubricating and changing accessories. Wiping or cleaning rags and other
flammable waste materials must be placed in a lightly closed metal container and disposed of later
in the proper fashion.
6. Do not wear loose or ill-fitting clothing, remove matches and rings.
7. Never use quick change couplings at tool. They add weight and could fail due to vibration. Instead
add a hose whip and connect coupling between air supply and hose whip or between hose whip
and leader hose.
8. Don't overreach, keep proper footing and balance at all times.
9. Don't force tool. It will do the job better and safer at the rate for which it was designed.
10. Don't abuse hoses or connectors. Never carry tool by the hose or yank it to disconnect from power
supply. Keep hoses from heat oil and sharp edges. Check hoses for weak or worn condition
before each use making certain that all connections are secure.
11. When possible secure work with clamps or vise so both hands are free to operate tool.
12. Accessory retainers should be used to prevent discard or ejection of the accessory which might
injure persons in the general area. Switch of tool when changing location or on transport. Never
carry the tool when trigger is depressed or when cutting wheel is still moving. Accessory should be
removed when tool is not in use.
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen

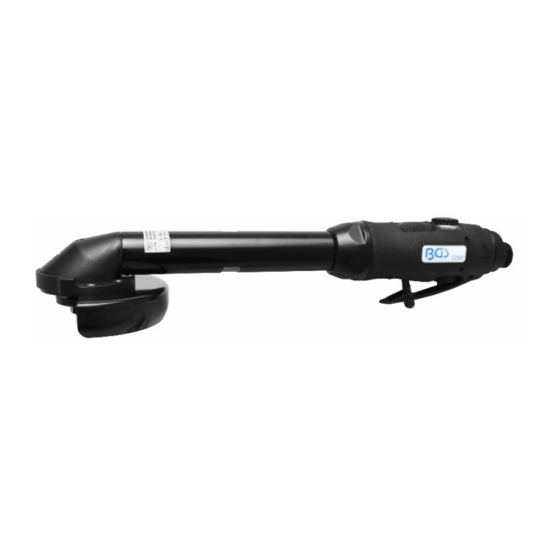

Air Separation Tool
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
Art. 3268
www.bgstechnic.com
