SAFETY NOTES
1.
Read these instructions carefully before using the item. The failure to
observe the following precautions can result in serious injury!
2.
Use this tool NEVER near explosive items, materials, liquids or gases.
3.
Disconnect the air grinder from air supply before changing attachments
or accessories.
4.
Do not wear baggy or loose clothing when working with the air sander.
scarves, necklaces, bracelets, jewelry, etc. should not be worn while
working with the tool.
5.
Tie together long hair and always wear safety glasses, gloves, hearing
protection and respiratory protection.
6.
When operating, keep a secure and firm footing
7.
Prior to the installation of accessories or maintaining the equipment,
disconnect the air supply.
8.
Do not point the tool at yourself or other people. This can result in
serious injury.
9.
Tighten all nuts, bolts and screws and make sure that your equipment
is in good working condition.
10. When there is a defect of the item, disconnect the tool directly from the
air. The air sander may be used again until after the test or repair.
11. Use only equipment that is suitable for pneumatic devices.
WARNING
Improper operation or maintenance of this product could result in serious injury and property damage.
Read and understand all warnings and operation instructions before using this equipment. When
using air tools, basic safety precautions should always be followed to reduce the risk of personal
injury.
WARRANTY
Please read these instructions carefully before use first time. For any questions about this product,
please contact your dealer.
We guarantee that all our products are free from defects in material. This warranty does not cover
damage due to improper use, lack of or improper maintenance and normal wear and tear. The
warranty does not cover also when the tool has been repaired by an unauthorized person, or
modified.
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i

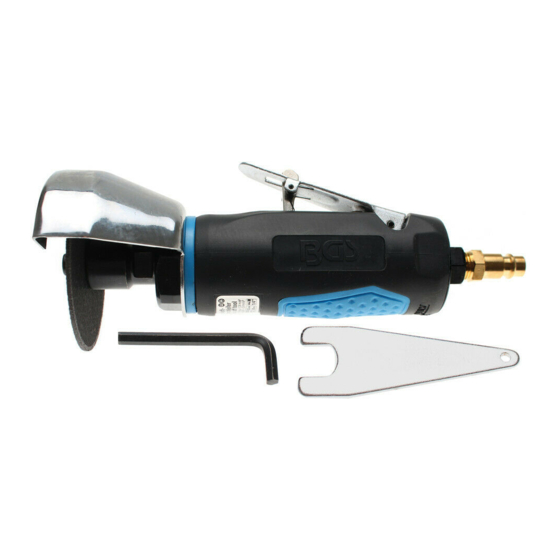

3" Cut Off Tool
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 3286
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BGS technic 3286
Summary of Contents for BGS technic 3286
- Page 1 Art. 3286 3" Cut Off Tool SAFETY NOTES Read these instructions carefully before using the item. The failure to observe the following precautions can result in serious injury! Use this tool NEVER near explosive items, materials, liquids or gases. Disconnect the air grinder from air supply before changing attachments or accessories.
- Page 2 AIR SUPPLY Please refer to the diagram below. 1. Make sure that the air compressor being used far the air tool operation supplies the correct output (CFM). 2. "Off" position when connecting the tool to the air supply. 3. Use normal 90 psi air pressure while running the tool. High pressure and unclean air will shorten the tool's life due to faster wear and also may create a hazardous situation.
- Page 3 OPERATION INSTRUCTIONS 1. Lubricate the tool before operating. See ·CARE AND MAINTENANCE" section for oiling instructions. 2. Remove the fixing screw counterclockwise direction by hand or by one wrench while holding the other wrench on the flats of the drive shaft. 3.
- Page 4 5. Remove the air cap from the tool air Inlet and connect the air supply hose to the tool. Set the air pressure at 90 PSI. 6. Push forward the throttle lever lock and press down on the throttle lever. How far the throttle lever is pressed determines the tool rotation speed.
- Page 5 We declare that the following designated product: Nous déclarons sous propre responsabilité que ce produit: Declaramos bajo nuestra sola responsabilidad que este producto: Druckluft-Trennschneider ( BGS Art. 3286 ) Air Cut Off Tool Scie à corps à air pneumatique Cortadora neumática folgenden einschlägigen Bestimmungen entspricht:...
