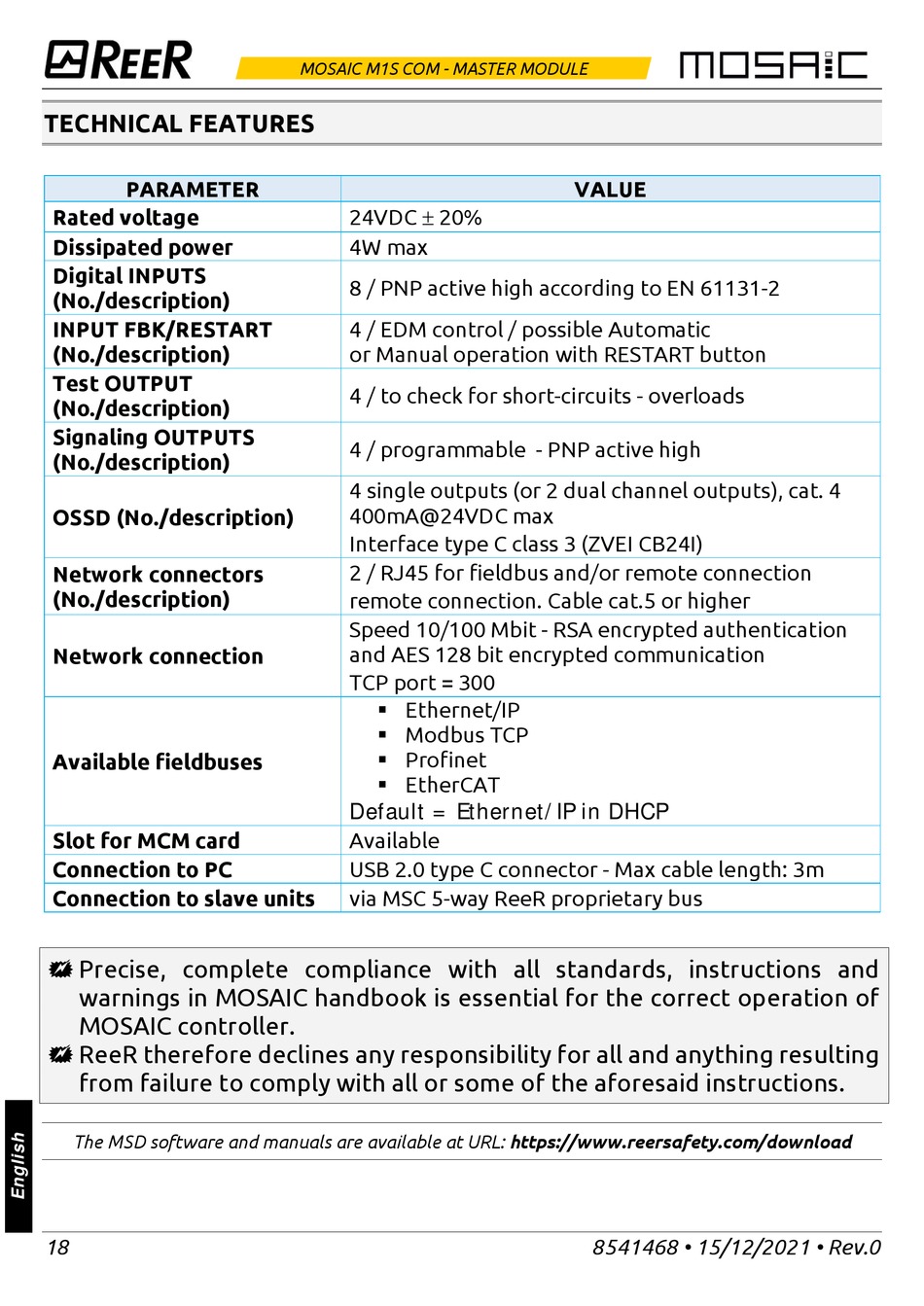

TECHNICAL FEATURES

PARAMETER
Rated voltage
Dissipated power
Digital INPUTS
(No./description)
INPUT FBK/RESTART
(No./description)
Test OUTPUT
(No./description)
Signaling OUTPUTS
(No./description)
OSSD (No./description)
Network connectors
(No./description)
Network connection
Available fieldbuses
Slot for MCM card
Connection to PC
Connection to slave units
 Precise, complete compliance with all standards, instructions and
warnings in MOSAIC handbook is essential for the correct operation of
MOSAIC controller.
 ReeR therefore declines any responsibility for all and anything resulting
from failure to comply with all or some of the aforesaid instructions.
The MSD software and manuals are available at URL: https://www.reersafety.com/download
18
MOSAIC M1S COM - MASTER MODULE
24VDC  20%
4W max
8 / PNP active high according to EN 61131-2
4 / EDM control / possible Automatic
or Manual operation with RESTART button
4 / to check for short-circuits - overloads
4 / programmable - PNP active high
4 single outputs (or 2 dual channel outputs), cat. 4
400mA@24VDC max
Interface type C class 3 (ZVEI CB24I)
2 / RJ45 for fieldbus and/or remote connection
remote connection. Cable cat.5 or higher
Speed 10/100 Mbit - RSA encrypted authentication
and AES 128 bit encrypted communication
TCP port = 300
▪ Ethernet/IP
▪ Modbus TCP
▪ Profinet
▪ EtherCAT
Default = Ethernet/IP in DHCP
Available
USB 2.0 type C connector - Max cable length: 3m
via MSC 5-way ReeR proprietary bus
VALUE
