  • Page 1 SYVA user manual (EN)
  • Page 2 Document reference: Syva user manual (EN) version 1.0 Distribution date: June 7, 2017 © 2017 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the...

  • Page 3: Table Of Contents

    System components.............................6 Technical description............................8 Loudspeaker configurations..........................9 Syva colinear source..........................9 Syva colinear source with LF extension..................... 10 Syva colinear source with LF extension and subwoofer................12 Loudspeaker connection............................ 14 Connectors............................. 14 Connection to LA4X..........................16 Connection to LA8..........................18 Connection to LA12X..........................

  • Page 4: Safety

    Inspect the product before operation. If any sign of defect or damage is detected, immediately withdraw the product from use for maintenance. Never incorporate equipment or accessories not approved by L-Acoustics. Read all the related PRODUCT INFORMATION documents shipped with the products before exploiting the system.

  • Page 5: Welcome

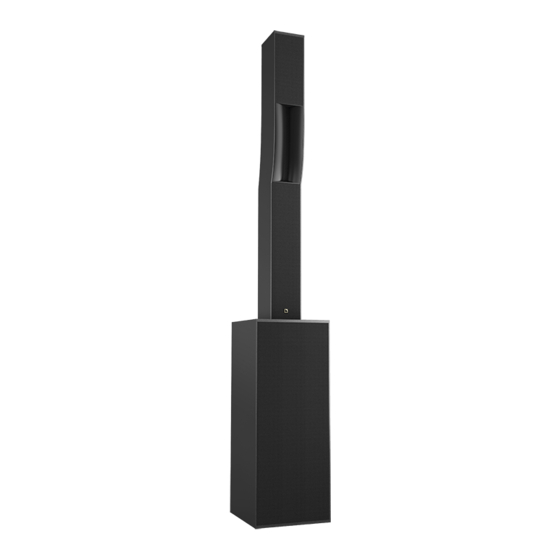

    The cabinet combines the remarkable acoustic properties of birch and beech plywood. Its slim elegance makes for easy integration. RAL colors allow it to blend into any architecture. Syva Low and Syva Sub provide a stable podium base for Syva. The plug-and-play AutoConnect provides a rapid and secure audio and physical link.

  • Page 6: System Components

    Refer to the LA4X / LA8 / LA12X user manual for detailed instructions about the whole cabling scheme, including modulation cables and network. Rigging elements Rigging elements or procedures are not presented in this document. Refer to the Syva rigging manual. Syva user manual (EN) version 1.0...
  • Page 7 SP.7 / SP5 / SP10 / SP25 SP-Y1 SPK1 SPK2 0.7 m / 10 m / 25 m SPK3 SPK4 DO.7 / DO10 / DO25 DOSUB-LA8 3.5 m 3.5 m 2WAY 2W CH(A) SUB1 2W CH(B) SUB2 DOFILL-LA8 DO3WFILL Syva user manual (EN) version 1.0...

  • Page 8: Technical Description

    Technical description Technical description Directivity Syva generates a horizontal directivity pattern of 140° (>1 kHz) and a vertical directivity pattern between +5° and -21° in J-shape (> 1 kHz). −20 −40 −60 −80 −100 −100 −120 −120 −140 −140 −160 −160...

  • Page 9: Loudspeaker Configurations

    Syva colinear source In this configuration the system operates over the nominal bandwidth of the enclosure. The [SYVA] preset allows for a reference frequency response in medium throw applications. Syva is driven by the LA4X / LA8 / LA12X amplified controllers.

  • Page 10: Syva Colinear Source With Lf Extension

    Loudspeaker configurations Syva colinear source with LF extension In hybrid configuration with Syva Low, the Syva system bandwidth is extended down to 40 Hz and the system contour is reinforced by 9 dB. Syva and Syva Low are driven by the LA4X / LA8 / LA12X amplified controllers.
  • Page 11 Loudspeaker configurations Separated The [SYVA] preset allows for a reference frequency response in medium throw applications. The [SYVA LOW_100] preset provides Syva Low with an upper frequency limit at 100 Hz. > 60 cm / 24 in Enclosures Syva Syva Low...

  • Page 12: Syva Colinear Source With Lf Extension And Subwoofer

    Syva, Syva Low and Syva Sub are driven by the LA4X / LA8 / LA12X amplified controllers. Coupled The [SYVA LOW SYVA] hybrid preset enables acoustic coupling when Syva is on top of Syva Low (AutoConnect) or within a 60 cm (24 in) distance.
  • Page 13 Separated The [SYVA] preset allows for a reference frequency response in medium throw applications. The [SYVA LOW_100] and [SYVA SUB_100] presets provide Syva Low and Syva Sub with an upper frequency limit at 100 Hz. [SYVA SUB_100] polarity is reversed to optimize Syva Sub acoustic summation with Syva/Syva Low.

  • Page 14: Loudspeaker Connection

    Connectors Syva Syva offers multiple types of connectors. Use one type of connector at a time. Use the speakON connector to connect the enclosure with an SP cable. The speakON connector is only accessible if Syva Wall is used with a wedge.
  • Page 15 Amplified controller damage Do not use the speakON connector or screw terminals on Syva when using AutoConnect. With Syva on top of Syva Low, AutoConnect is enabled and power is routed through the subwoofer connector plate to the enclosure. AutoConnect internal pinout...

  • Page 16: Connection To La4X

    1 enclosure: 4 Ω Connecting 2-way passive enclosures or subwoofers SP on speakON output OUT1 OUT3 OUT4 OUT2 SP and SP-Y1 on speakON output CH(1) (OUT1) SP-Y1 CC4FP OUT1/OUT2 OUT3/OUT4 CH(2) (OUT2) same as OUT1/OUT2 Syva user manual (EN) version 1.0...
  • Page 17 SP on speakON output Autoconnect OUT1/OUT2 OUT3/OUT4 same as OUT1/OUT2 SP and SP-Y1 on speakON output Risk of damaging the Syva drivers. Connect CH(1) to Syva Low and CH(2) to Syva. CH(1) (OUT1) SP-Y1 CC4FP OUT1/OUT2 OUT3/OUT4 CH(2) (OUT2) same as OUT1/OUT2...

  • Page 18: Connection To La8

    Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller. LA12X can drive up to two Syva Low per output, but no more than six per controller. Impedance load Syva Syva Sub 1 enclosure: 8 Ω...
  • Page 19 DO and DOSUB-LA8 on CA-COM output SPK1 (OUT1) (custom adapter) CA-COM SPK2 (OUT2) SPK3 (OUT3) SPK4 (OUT4) Connecting hybrid configurations Use [SYVA LOW SYVA] with these cabling schemes. SP on speakON output Autoconnect OUT1/OUT2 OUT3/OUT4 same as OUT1/OUT2 Syva user manual (EN) version 1.0...
  • Page 20 Loudspeaker connection SP and SP-Y1 on speakON output Risk of damaging the Syva drivers. Connect CH(1) to Syva Low and CH(2) to Syva. CH(1) (OUT1) SP-Y1 CC4FP CH(2) (OUT2) OUT3/OUT4 OUT1/OUT2 same as OUT1/OUT2 DO and DOFILL-LA8 on CA-COM output...
  • Page 21 Loudspeaker connection Connecting a hybrid configuration with subwoofers DO and DO3WFILL on CA-COM output SUB1 (OUT1) SUB2 (OUT2) (custom adapter) CA-COM Autoconnect 2WAY (OUT3/4) Syva user manual (EN) version 1.0...

  • Page 22: Preset Description

    0 dB 0 ms [SYVA LOW SYVA] outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 OUT 3 IN B 0 dB 0 ms OUT 4 Syva user manual (EN) version 1.0...

  • Page 23: Recommendation For Speaker Cables

    4 Ω load 2.7 Ω load For your installation projects, you can use the more detailed L-ACOUSTICS calculation tool to evaluate cable length and gauge based on the type and number of enclosures connected. The calculation tool is available on our website: http://www.l-acoustics.com/installation-outils-de-calcul-137.html...

  • Page 24: Maintenance

    Place protective material between the enclosure and the floor to avoid scratching the fins. In order to operate, follow the order outlined here. GRILLS MF LOUDSPEAKER G03317 TRAPDOOR HF LOUDSPEAKER HF DIAPHRAGM G03315 G03316 Syva user manual (EN) version 1.0...
  • Page 25 For safety reasons, always use the new screws and spare parts provided in the KR. If no new screws are available, use blue threadlocker. Exploded view Use a lever to remove the grill. 1 N.m Syva user manual (EN) version 1.0...
  • Page 26 If no new screws are available, use blue threadlocker. Exploded view Gradually tighten the screws following a star pattern. Place the connectors toward the vents. 1.8 N.m 3 mm What to do next Perform the Acoustical check (p.36) procedures. Syva user manual (EN) version 1.0...
  • Page 27 Tools — torque screwdriver — T25 Torx bit — lever Repair kits G03316 - KR diaphragm 1.75'' Syva or G03315 - KR compression driver 1.75'' Syva ×4 S100086 M5x16 Torx Pre-requisite The enclosure is placed on its front face. Place protective material between the enclosure and the floor to avoid scratching the fins.
  • Page 28 ×2 G100087 S342 1" HF speaker assembly - 16 ohms M5x20 hex * The screws are also available in G03316 - KR diaphragm 1.75'' Syva . Pre-requisite Trapdoor removed. Trapdoor (p.27). For safety reasons, always use the new screws and spare parts provided in the KR.
  • Page 29 Position the diaphragm assembly with the positive (red) connector aligned with the red mark. Gradually tighten the screws following a star pattern. 1.7 N.m What to do next Perform the Acoustical check (p.36) procedures. Syva user manual (EN) version 1.0...

  • Page 30: Syva Low

    Maintenance Syva Low Disassembly and Reassembly procedures In order to operate, follow the order outlined here. GRILL LF LOUDSPEAKER G03319 Syva user manual (EN) version 1.0...
  • Page 31 — torque screwdriver — T20 Torx bit — lever Repair kits G03319 KR LF loudspeaker 12'' Syva Low ×2 S337 M4x20 Torx For safety reasons, always use the new screws and spare parts provided in the KR. If no new screws are available, use blue threadlocker.
  • Page 32 Maintenance D/R - LF loudspeaker Tools — torque screwdriver — 5 mm hex bit Repair kits G03319 KR LF loudspeaker 12'' Syva Low ×1 ×8 ×4 1277 S100054 1250 12" LF speaker M6x30 hex 12" speaker gasket Pre-requisite Grill disassembled.

  • Page 33: Syva Sub

    Maintenance Syva Sub Disassembly and Reassembly procedures In order to operate, follow the order outlined here. GRILL LF LOUDSPEAKER G03320 Syva user manual (EN) version 1.0...
  • Page 34 — torque screwdriver — T20 Torx bit — lever Repair kits G03320 KR LF loudspeaker 12'' Syva Sub ×2 S337 M4x20 Torx For safety reasons, always use the new screws and spare parts provided in the KR. If no new screws are available, use blue threadlocker.
  • Page 35 Maintenance D/R - LF loudspeaker Tools — torque screwdriver — 5 mm hex bit Repair kits G03320 KR LF loudspeaker 12'' Syva Sub ×1 ×8 ×4 17760 S100054 1250 12" LF speaker - 8 ohms M6x30 hex 12" speaker gasket Pre-requisite Grill disassembled.

  • Page 36: Acoustical Check

    6. Press the OK key or the encoder wheel to launch the ENCLOSURE CHECK. The amplified controller generates short sinusoidal signals simultaneously for each connected output. The amplified controller displays the results for each output. Syva user manual (EN) version 1.0...
  • Page 37 — a percentage of variation from the expected range (found in NOK and UNDEF results) — the number of operational transducers out of the total Low variations from the expected range are acceptable: displayed percentage can be different from 0 and all transducers considered operational. Syva user manual (EN) version 1.0...
  • Page 38 5. Clean the air gap thoroughly. 6. Perform the reassembly procedure. Pay close attention to the position of the diaphragm. Apply the recommended torque. 7. Repeat the listening test. If the problem persists, replace the loudspeaker. Syva user manual (EN) version 1.0...
  • Page 39 Apply the recommended torque. 5. Repeat the listening test. 6. If a buzzing sound is still audible, repeat the test on the loudspeaker outside of the enclosure. If the problem persists, replace the loudspeaker. Syva user manual (EN) version 1.0...

  • Page 40: Appendix A: Cabling Syva

    APPENDIX A: Cabling Syva APPENDIX A: Cabling Syva Connecting cables to the filter (HF area) Syva user manual (EN) version 1.0...

  • Page 41: Specifications

    Description 2-way-passive enclosure: 6 x 5'' LF + 3 x 1.75'' HF diaphragm, amplified by LA4X / LA8 / LA12X Usable bandwidth (-10 dB) 87 Hz - 20 kHz ([SYVA]) Maximum SPL 137 dB ([SYVA]) Nominal directivity vertical: +5°/-21° in J shape (> 1 kHz) horizontal: 140°...
  • Page 42 Specifications Syva dimensions 209 mm / 8.2 in 144 mm / 5.7 in 170 mm / 6.7 in Syva user manual (EN) version 1.0...

  • Page 43: Syva Low Specifications

    IP55 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets). Syva Low dimensions 334 mm / 13.1 in 350 mm / 13.8 in Syva user manual (EN) version 1.0...

  • Page 44: Syva On Syva Low Specifications

    Specifications Syva on Syva Low specifications Description hybrid configuration, amplified by LA4X / LA8 / LA12X Usable bandwidth (-10 dB) 40 Hz - 20 kHz ([SYVA LOW SYVA]) Maximum SPL 142 dB ([SYVA LOW SYVA]) Connectors IN: 4-point speakON Weight (net) 50 kg / 110 lb Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).

  • Page 45: Syva Sub Specifications

    IP55 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets). Syva Sub dimensions 350 mm / 13.8 in 334 mm / 13.1 in Syva user manual (EN) version 1.0...
  • Page 46 L-Acoustics, an L-Group Company 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com L-Acoustics GmbH L-Acoustics Ltd. L-Acoustics Inc. Steiermärker Str. 3-5 PO. Box Adler Shine - Aston House 2645 Townsgate Road, Suite 600...
