Summary of Contents for Bush Hog HDSS Series

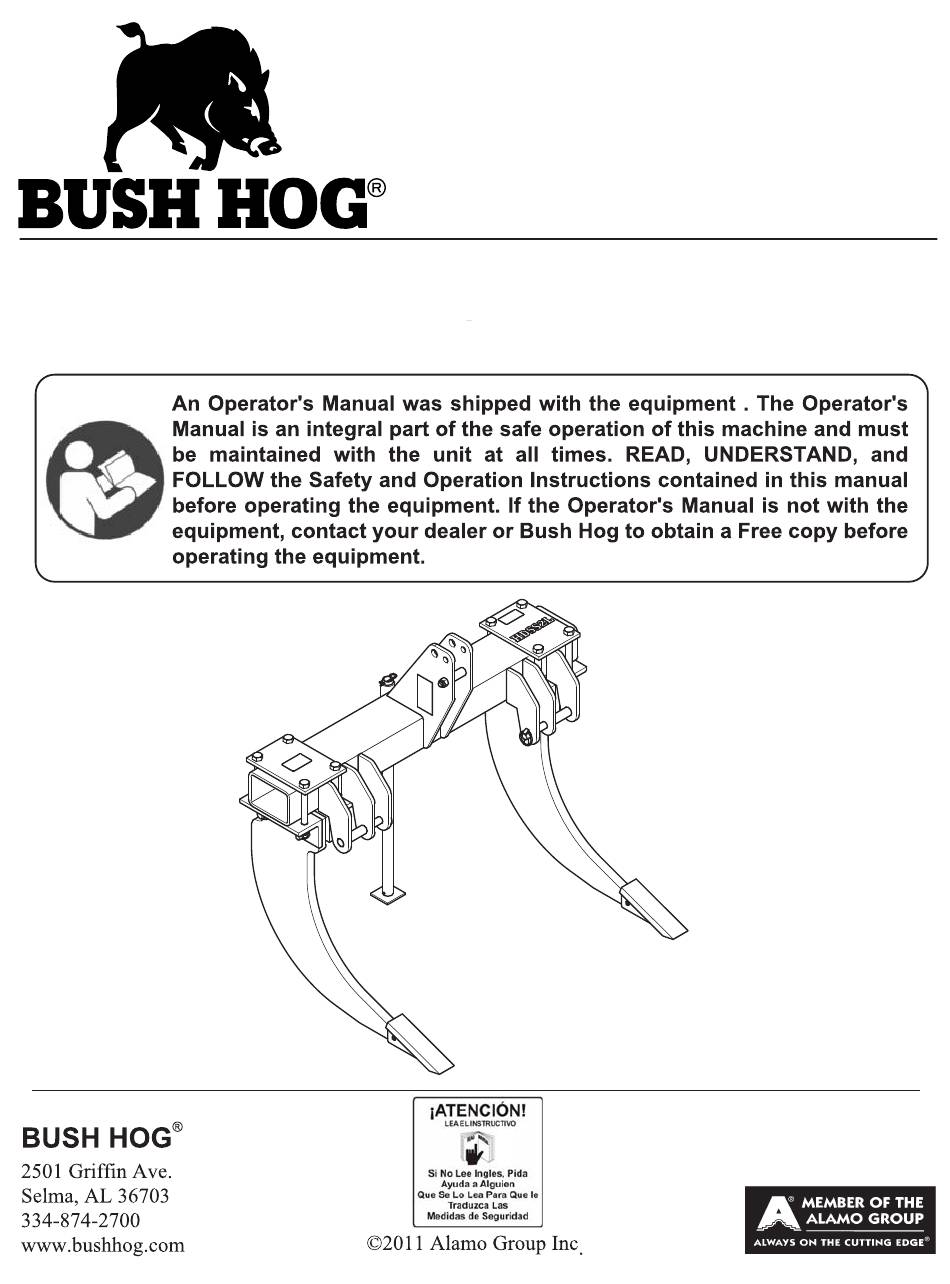

- Page 1 HDSS SERIES SUB-SOILERS MODELS HDSS1L, HDSS2L, HDSS1S, HDSS2S Revised May, 2022 PUBLISHED 12/12 MATERIAL HANDLING and TILLAGE PARTS MANUAL PARTS MANUAL SECTION 28...
-
Page 4: Limited Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement of Bush Hog such use affects its performance, stability or reliability. - Page 5 TABLE OF CONTENTS HDSS SERIES SUB-SOILERS MODELS HDSS1L, HDSS2L, HDSS1S, HDSS2S HDSS1L SUBSOILER ASSEMBLY ............28-1-1 HDSS2L SUBSOILER ASSEMBLY .
- Page 7 Capscrew 1 X 4 G5 Zp 19427BH Roll Pin 1/2 X 2-1/4 50071921 Large HDSS Shank 50071920 HDSS Foot 50071919 Parking Stand 50071918 A-Frame Spacer 50071925 Model Decal, HDSS1L 50057097 Caution Decal 90960BH Warning Decal 00725746 Decal,Peligro 50083387 Decal Bush Hog 28-1-1...
- Page 8 Warning Decal 45020BH Locknut 5/8 Nylock Cp 00725746 Decal,Peligro 45294BH Capscrew 3/4 x 8 Gr.5Zp 50083387 Decal Bush Hog 50071922 Capscrew 3/4'' X 4'' (P2) 50071942 Angle Plate LH 19087 Capscrew 1 X 4 G5 Zp 50071943 Angle Plate RH...
- Page 9 Capscrew 1 X 4 G5 Zp 19427BH Roll Pin 1/2 X 2-1/4 50071936 Small HDSS Shank 50071920 HDSS Foot 50071919 Parking Stand 50071918 A-Frame Spacer 50071938 Model Decal, HDSS1S 50057097 Caution Decal 90960BH Warning Decal 00725746 Decal,Peligro 50083387 Decal Bush Hog 28-1-3...
- Page 10 Warning Decal 45020BH Locknut 5/8 Nylock Cp 00725746 Decal,Peligro 45294BH Capscrew 3/4 x 8 Gr.5Zp 50083387 Decal Bush Hog 50071922 Capscrew 3/4'' X 4'' (P2) 50071942 Angle Plate LH 19087 Capscrew 1 X 4 G5 Zp 50071943 Angle Plate RH...
