MANAGEMENT OF BLUETOOTH CONNECTION
To connect the app to a machine, proceed as follows:
1. Check the machine is on
2. Click the connection button
3. Select the machine to which you want to connect
4. Allow the tablet to connect to the machine
5. The blue Bluetooth connection light on the machine will come on to indicate that there is a connected app
When there is a connected machine, the screen changes to display the connected machine information and its clamp,
cutter and tracer setting options
FIRMWARE UPDATE
The button located at the side of the firmware information within the machine information is for checking if there are
firmware updates for the connected machine. If a newer firmware version is found, the app indicates this and allows
the user to start the firmware update process.
78

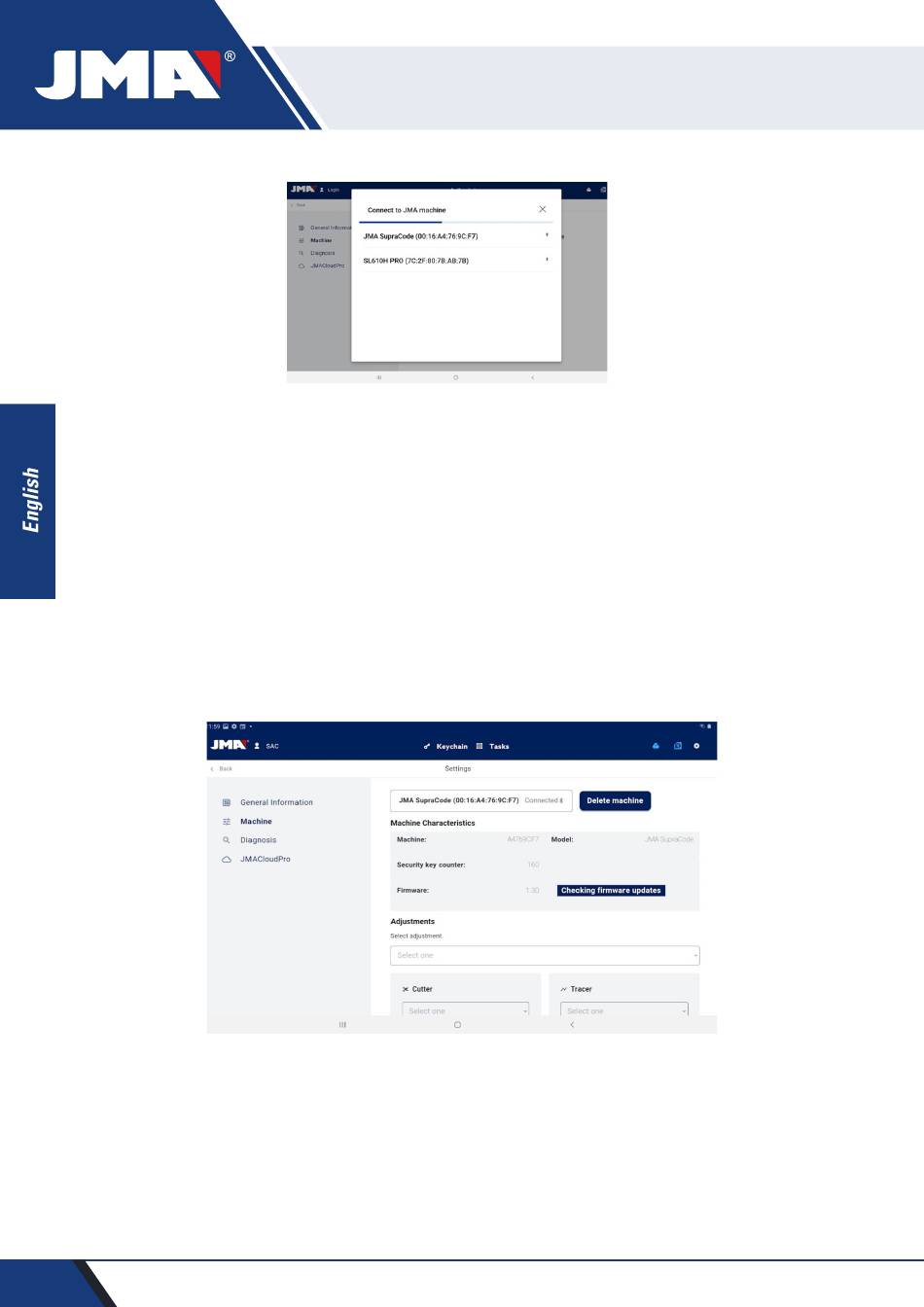

1.- Machine section without connected machine. 2.- Selector of machine to connect.
3.- Permission request to connect the machine
Machine screen with connected SUPRACODE.
