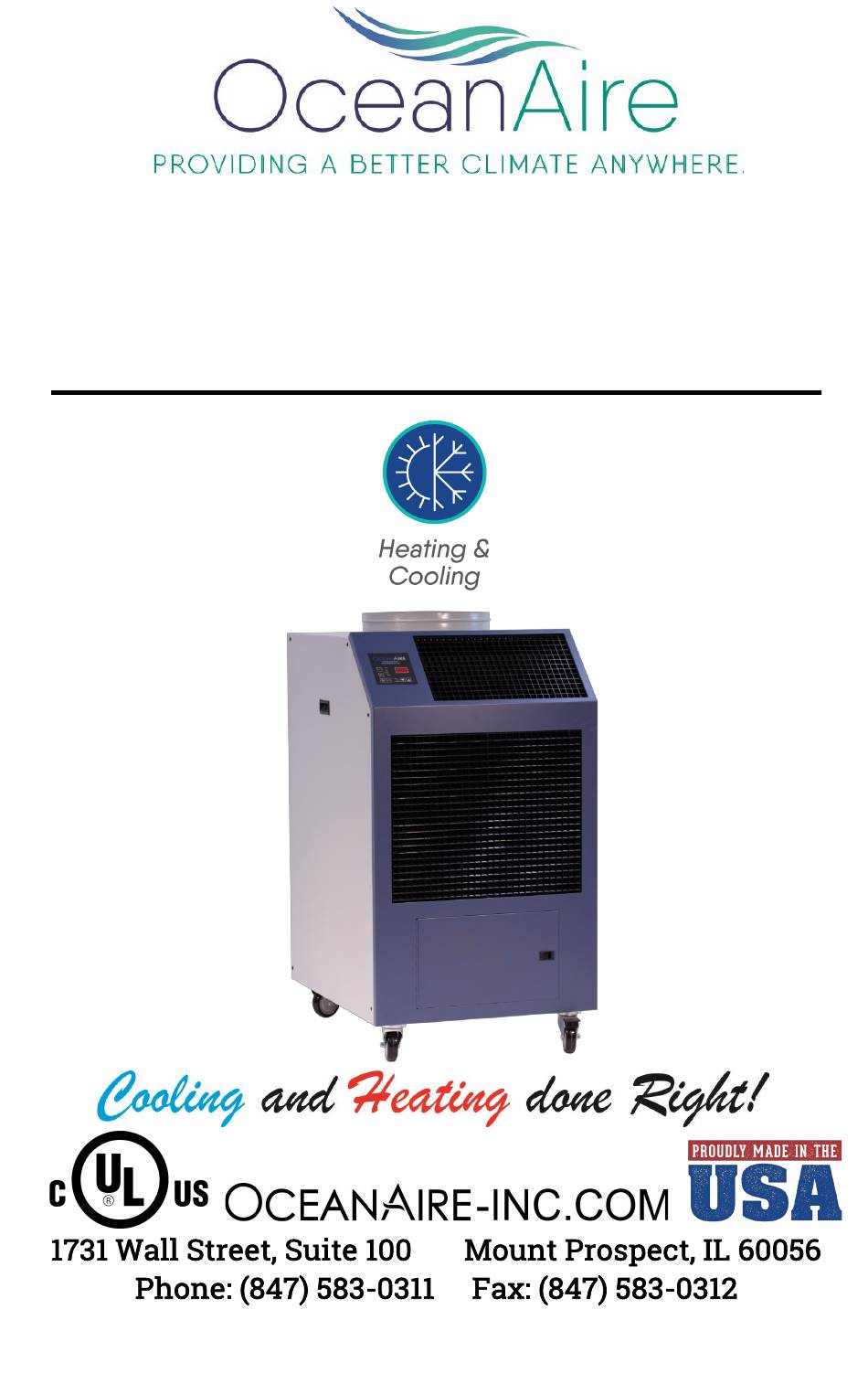

- Page 1 2OACH1211 1-ton Portable Air-Cooled Heat Pump ENGINEERING, INSTALLATION AND SERVICE MANUAL EISM-2OACH1211 02012022...
- Page 2 Back Cover FORWARD This manual provides the user with basic details for the installation and operation of the OceanAire 2OACH1211 heat pump. It is recommended to read and fully understand the instructions outlined within this manual, before operating the 2OACH1211 unit.
- Page 3 The 2OACH1211 model will satisfy most space cooling or heating requirements.
- Page 4 SPECIFICATIONS 2OACH1211 COOLING CAPACITY 11,800 BTUH HEATING CAPACITY 11,000 BTUH VOLTAGE 115V, 60Hz, 1PH AMPS 10.4 TOTAL WATTS 1180 IN RUSH AMPS PLUG TYPE 5-15P, LCDI 10.0 COMPRESSOR ROTARY COMPRESSOR HP COMPRESSOR LRA EVAP CFM - HIGH EVAP MOTOR HP...
- Page 5 STANDARD FEATURES CABINET The 2OACH1211 Series heat pump has a cabinet that is constructed of 18 gauge steel with a polyester powder coated finish that will compliment any decor. The cool blue front compliments any surrounding space, and is insulated with sound-absorbing insulation for cool, quiet comfort.
- Page 6 ROOM AIR CONDITIONER When ducted properly, the 2OACH1211 can be used as a room air conditioner to cool an enclosed space. Using the condenser return air plenum, additional ceiling kit, and other accessories, the 2OACH1211 can then operate as a room air conditioner with the condenser air isolated from the conditioned space.
- Page 7 In HEAT mode, the 2OACH1211 can be used in an open environment to provide heat to a specific area or "spots". The 2OACH1211 is a heat pump, and the supply air will feel warm, but not extremely hot to the touch. Nozzle kits can be used for directional heating.
- Page 8 ELECTRICAL CONFIGURATION SERVICE CORD All 2OACH1211 units are equipped with a standard 10-foot long service cord with plug configuration and receptacle requirement as shown in this chart. 2OACH1211 units come with LCDI (Leakage Current Detection & Interruption) devices that serve as a means of electrical protection.
- Page 9 CONDENSATE For the 2OACH1211, a 5-gallon polyethylene tank is provided to collect condensate. The tank is located in the lower front section of the unit, and can be accessed though the condensate tank door. When the high water level is reached, a cut-out...
- Page 10 2OACH1211 OPTIONAL ACCESSORIES NOTE - IT IS IMPORTANT TO SPECIFY THE SERIAL NUMBER WHEN ORDERING ACCESSORIES...
- Page 11 2OACH1211 OPTIONAL ACCESSORIES NOZZLE KIT, 2NK-1 (2 X 4”) The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concentrating the airflow, the nozzles increase the air velocity to- wards production lines to cool personnel and/or equipment. In server rooms, the nozzles can be used to direct the airflow through the rack to remove the hot air from the area of the equipment.
- Page 12 INSTALLATION INSTRUCTIONS RECEIVING—INSPECTION Upon receiving your 2OACH1211 unit, inspect the packaging for any damage. All units are shipped on a skid, and packaged in a triple-wall carton for added protection. BEFORE INSTALLING Check the unit for any damage. All OceanAire products are thoroughly inspected at the factory and carefully packaged.
- Page 13 DELUXE ELECTRONIC CONTROLLER The 2OACH1211 controller is equipped with many features for a more precise level of comfort and operation. Additionally, the controller can be removed from the unit and installed for remote operation (additional parts are required). POWER button OCEANAIRE DELUXE ELECTRONIC CONTROLLER When power is connected, the controller will display “888”...
- Page 14 FAN SPEED The operator can select between AUTO or MANUAL fan speed control. Pressing the FAN SPEED button will switch speed from AUTO to MANUAL. In MANUAL mode, pressing the FAN SPEED button will change fan speed from low to high. In AUTO mode, the fan speed is controlled automatically.
- Page 15 CODE SETTINGS 2OACH1211 P1 = 65, P2 = 45 NOTICE Program Parameters are NOT controller default values. They are OceanAire Factory Settings DISPLAY FAULTS LAC…………...…… Low AC line power AAA or - - - …... Failed Air Sensor (unit will not run) CON………………..
- Page 16 REPLACEMENT PARTS PROCEDURE IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A QUALFIED AIR CONDITIONING SERVICE TECHNICIAN WARNING —TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING A. FAN MOTORS/BLOWER WHEELS Remove cabinet's left-side panel (when looking at the front of the unit) •...
- Page 17 TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI.
- Page 18 PREVENTIVE MAINTENANCE 2OACH1211 Heat Pumps are designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: BLOWER MOTORS The motors on all units have permanently lubricated bearings. No oiling is...
- Page 19 2OACH1211 INTERIOR VIEW Hot Gas Valve Condenser Electronic Blower / Motor Controller Evaporator (Thermostat) Blower / Motor Condenser Coil Display Cable Control Evaporator Coil Reversing Valve Filter Drier Condensate Tank...
- Page 20 PIPING SCHEMATIC...
- Page 21 WIRING SCHEMATIC FOR 2OACH1211...
- Page 22 LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer, the...
- Page 23 OTHER PORTABLE HEAT PUMP MODELS AVAILABLE MODEL: 2OACH 1211 1811 2412 3612 3632 3634 6012 6032 6034 COOLING CAPACITY 11,800 16,800 24,020 36,050 60,100 HEATING CAPACITY 11,000 15,600 22,000 32,500 53,500 VOLTAGE (V/Phase) at 60Hz 115/1 208-230/1 208-230/3 460/3 208-230/1 208-230/3 460/3 AMPS 10.4...
- Page 24 SERIAL NUMBER: _____________________________ Date Purchased: ______________________________ Purchased from: _______________________________ Date Installed: _________________________________ For Technical Support or service parts, contact our Keep Cool Team at 847-583-0311 In order to receive the benefits of our warranty, please register on-line at www.oceanaire-inc.com EISM-2OACH1211 08012021...
