2OACH SERIES

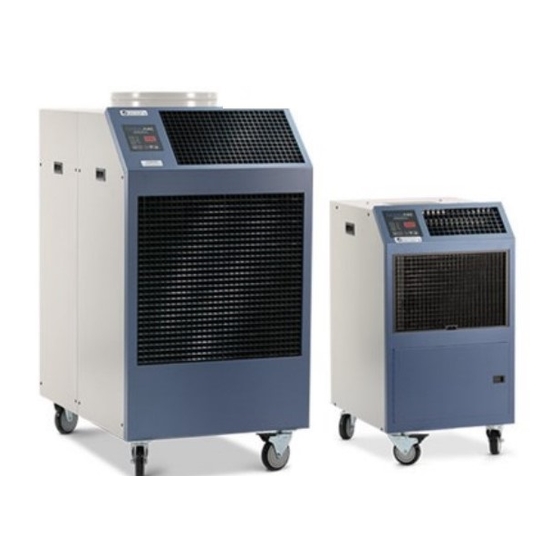

Portable Air-Cooled Heat Pump
ENGINEERING, INSTALLATION AND SERVICE MANUAL
Form EISM-2OACH 10012021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2OACH6012 and is the answer not in the manual?

Questions and answers

Summarization of Contents

GENERAL INFORMATION
NOMENCLATURE
Explains the naming convention for OceanAire 20ACH models.
WARRANTY
Details the 1-year full product and 5-year compressor warranty for OceanAire products.
WARRANTY CARD
Instructions for returning the warranty card to the factory to receive warranty benefits.
SPECIFICATIONS
MODEL: 20ACH
Provides detailed specifications for various 20ACH models including capacity, voltage, amps, and dimensions.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
States that specifications are subject to change without prior notice.
COOLING & HEATING AMBIENT RANGES
Defines the operating temperature ranges for cooling and heating modes.
STANDARD FEATURES
CABINET CONSTRUCTION
Details the construction and features of the 20ACH Series heat pump cabinet.
ELECTRONIC CONTROLLER & FAN SPEED
Explains the deluxe electronic controller features and fan speed control options.
CONDENSATE HANDLING
Explains the condensate tank and automatic pump for condensate removal.
FILTERS AND SAFETY FEATURES
Details air filters and the high pressure safety switch for compressor protection.
APPLICATIONS
COOLING MODE - SPOT COOLER
Details how the 20ACH can be used for spot cooling in open environments.
AREA COOLER
Explains using the unit in an open area with condenser exhaust directed away.
ROOM AIR CONDITIONER
Describes how to use the unit as a room air conditioner when properly ducted.
COOLING MODE OPERATION DESCRIPTION
Illustrates and describes the operation of the 20ACH unit in cooling mode.
HEATING MODE - HEAT PUMP
Explains how the 20ACH can be used for directional heating as a heat pump.
HEATING MODE OPERATION DESCRIPTION
Illustrates and describes the operation of the 20ACH unit in heating mode.
ELECTRICAL CONFIGURATION
SERVICE CORD DETAILS
Information regarding the standard 10-foot service cord and LCDI features.
LCDI CAUTION
Cautionary note about not using the LCDI as an on/off switch for the unit.
PLUG AND RECEPTACLE CONFIGURATIONS
A chart detailing plug and receptacle configurations for different 20ACH models.
USE OF EXTENSION CORDS
EXTENSION CORD CAUTION
Warning regarding the proper use and rating of extension cords with 20ACH units.
SPECIAL NOTICE - THREE PHASE OPERATION
Important notice concerning the three-phase monitor and its function.
CONDENSATE
CONDENSATE TANK AND PUMP DETAILS
Details the 5-gallon polyethylene tank for condensate collection and its cut-out switch.
TANK LEVEL ADJUSTMENT INSTRUCTIONS
Provides instructions on how to adjust the cut-off level of the condensate tank full switch.
CONDENSATE TANK ADJUSTMENT CAUTION
Caution to unplug the unit before adjusting the condensate tank set screw.
20ACH OPTIONAL ACCESSORIES
DUCTING & AIRFLOW ACCESSORIES
Details ceiling panel kits, condenser return air plenums, and discharge duct adapters.
DIRECTIONAL & CONDENSATE ACCESSORIES
Covers nozzle kits for directional airflow and universal condensate pump kits.
20ACH OPTIONAL ACCESSORIES
NOZZLE, PLENUM & ADAPTER KITS
Lists nozzle kits, evaporator/condenser plenums, and discharge duct adapters by model.
CONDENSATE PUMP & CEILING PANEL KITS
Provides details on condensate pump kits and ceiling panel kits for various models.
ACCESSORIES
CEILING PANEL DUCT KIT
Explains the ceiling panel duct kit, its components, and installation for drop ceilings.
ACCESSORIES
DISCHARGE AIR NOZZLE KIT ASSEMBLY
Explains the discharge air nozzle kit assembly and its use for directing airflow.
CONDENSATE PUMP KIT
Details the condensate pump kit, its function, and parts list.
ACCESSORIES
CONDENSER RETURN AIR PLENUM
Explains the condenser return air plenum and its application for ducting air to the condenser.
ACCESSORIES
EVAPORATOR RETURN AIR PLENUM
Explains the evaporator return air plenum for ducting air to the evaporator inlet.
ACCESSORIES
DISCHARGE DUCT ADAPTER
Explains the discharge duct adapter for applications requiring ducted evaporator discharge.
INSTALLATION INSTRUCTIONS
UNIT PREPARATION
Covers receiving, inspection, and pre-installation checks for the unit.
ELECTRICAL REQUIREMENTS
Details on checking nameplate, voltage, amperage, and power cord requirements.
SAFETY AND WARRANTY NOTES
Covers recommended fuses/breakers and warranty voiding due to improper voltage.
ACCESSORIES AND START-UP
Instructions to verify accessories and the procedure for unit start-up.
DELUXE ELECTRONIC CONTROLLER
CONTROLLER OPERATION AND MODES
Explains controller basics, temperature control, power, mode selection, and operating modes.
OPERATING MODES EXPLAINED
Details the AUTO, COOL, HEAT, and MOISTURE CONTROL operating modes.
DELUXE ELECTRONIC CONTROLLER
FAN SPEED CONTROL
Explains how to select and control fan speed between AUTO and MANUAL modes.
TEMPERATURE SELECTION
Describes how to view and adjust temperature set points and sensor readings.
CONTROLLER PROGRAMMING MENU
Outlines the steps to access and navigate the controller programming menu.
PROGRAM SETTINGS DETAILS
Details various programmable settings like fan speed limits, calibration, and display units.
20ACH PROGRAM SETTINGS
MODEL CODE SETTINGS
Table showing specific program settings (P1, P2) for different 20ACH models.
PROGRAM SETTINGS NOTICE
States that program parameters are factory settings, not controller default values.
DISPLAY FAULTS GUIDE
Lists common display fault codes (LAC, AAA, CON) and their meanings.
CHECKING UNIT HOURS
Instructions on how to check the total compressor run time hours for the unit.
REPLACEMENT PARTS PROCEDURE
SERVICE GUIDELINES
Covers recommended servicing by technicians and essential safety warnings.
COMPONENT REPLACEMENT PROCEDURES
Step-by-step guides for replacing fan motors, controller, power module, pump, and switch.
TROUBLESHOOTING GUIDE
SERVICE TECHNICIAN RECOMMENDATION
Reiterates that service should be performed by a qualified technician.
PROBLEM: UNIT DOES NOT POWER UP
Guide for diagnosing and resolving issues when the unit does not power up.
PROBLEM: FAN RUNS, COMPRESSOR/CONDENSER FAN DO NOT START
Guide for diagnosing why the evaporator fan runs but compressor and condenser fan do not start.
PREVENTIVE MAINTENANCE
BLOWER MOTORS MAINTENANCE
Information on blower motor bearings, noting they are permanently lubricated.
FILTERS MAINTENANCE
Details on inspecting and cleaning the evaporator and condenser filters.
CONDENSATE PUMP MAINTENANCE
Steps for servicing the condensate pump, including checking floats and cleaning.
GENERAL MAINTENANCE GUIDELINES
General advice on unit longevity and servicing by qualified technicians.
PIPING SCHEMATIC
REFRIGERANT FLOW
Explains the refrigerant flow direction for cooling and heating cycles.
AIR-COOLED HEAT PUMP SCHEMATIC
Title for the air-cooled heat pump piping schematic diagram.
THREE PHASE MONITOR
ICM401/ICM402 THREE PHASE MONITOR
Details the ICM401/ICM402 three-phase monitor and its LED indications for operation and faults.
SSAC THREE PHASE MONITOR
Details the SSAC three-phase monitor and its LED indications for service and replacement.
LIMITED WARRANTY
WARRANTY PERIOD
Details the one-year warranty for the product and the five-year warranty for the compressor.
COMPRESSOR WARRANTY DETAILS
Covers the pro-rated nature of the compressor warranty for years 2-5.
WARRANTY EXCLUSIONS
Lists specific conditions that are excluded from the limited warranty coverage.
WARRANTY CONDITIONS
Outlines the requirements for the limited warranty to be applicable.
WARRANTY DISCLAIMER
States that this warranty supersedes all other express or implied warranties.
END USER INFORMATION
TECHNICAL SUPPORT AND WARRANTY REGISTRATION
Provides contact information for support and instructions for online warranty registration.
