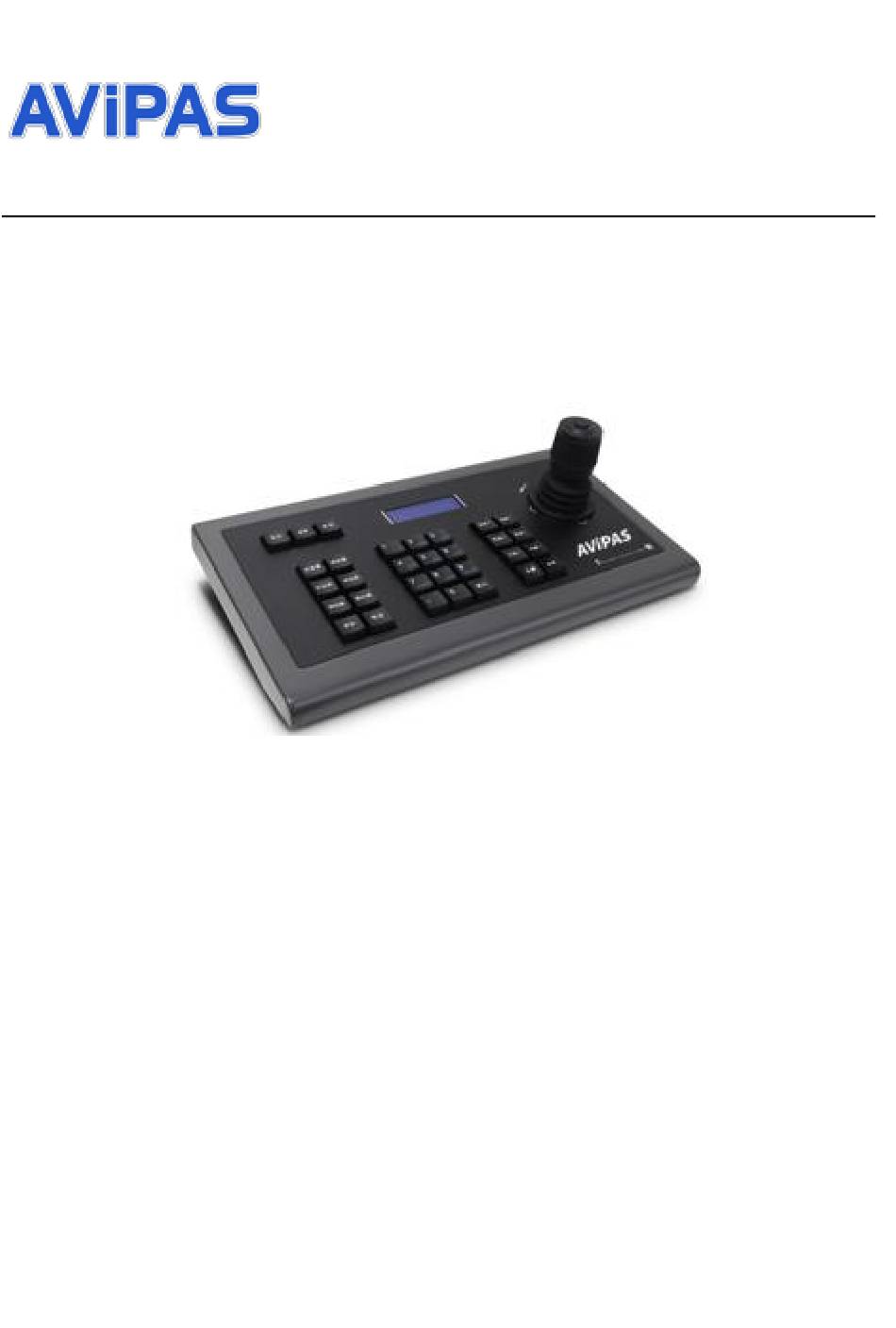

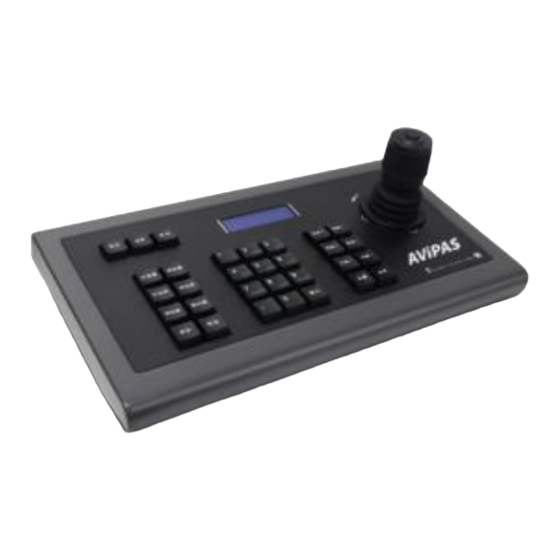

- Page 1 Model: AV-3104SE 4D Serial Joystick Keyboard Controller User Manual V1.0 (English) Please read this user manual thoroughly before using. www.avipas.com...
-
Page 2: Table Of Contents
Contents 1.Brief Introduction................................2 1.1 Notice..................................2 1.2 Functions and Features............................2 1.3 Items Included................................2 2.Interface Illustrations..............................3 3.Technical Specifications..............................4 4.Controller Operations………............................5 4.1 Keyboard.................................5 4.2 LCD screen display..............................5 4.3 Joystick control...............................6 5.Keyboard Setups................................6 5.1 PTZ setup................................6 5.2 System setup................................7 5.2.1 Password setting............................8 5.2.2 Restore factory settings..........................8 5.3 Keyboard menu...............................8 5.4 Keyboard parameters............................. -
Page 3: Brief Introduction
1.1 Notice Please read this manual thoroughly before use, and keep it handy f or future reference. ● Do not use or store AV-3104SE in the environment where the product is exposed to rainwater, moisture ● vapor, salty water, oil, etc. -
Page 4: Interface Illustrations
Flashing in green when the unit is sending data Receiving data indicator light Flashing in green when the unit is receiving data DC-12V Power jack DC12V power input Note: for more details on how to control multi cameras, please visit https://www.avipas.com/support... -
Page 5: Technical Specifications
3. Technical Specifications Communication interface RS232 Full duplex, RS422 Full duplex, RS485 Half-duplex Baud Rate 2400bps, 4800bps, 9600bps, 19200bps Protocol VISCA, PELCO-D, PELCO-P Joystick 4D control: up/ down/ left/ right/twist/push down Maximum cameras 255 (via PELCO), 7 via VISCA RS-232: 50 feet (15 Meters) Recommended max cable RS-485: 3,937 feet (1200 Meters) distance... -
Page 6: Controller Operations
4. Controller Operations 4.1 Keyboard 【ESC】 Exit or back to the previous menu. 【SETUP】 Parameter settings: press and hold the button for 3sec to enter the KBD setting page. 【CAM ON/OFF】 Camera power on/off 【AF/MF】 Auto/ Manual focus (Manually focus adjustment is done by 【NEAR】/【FAR】 【SET PRESET】... -
Page 7: Lcd Screen Display
【TELE】 Narrow-angle button/ Zoom-in: reduce the field of view, zoom in to the target object. 【WIDE】 Wide-angle button/ Zoom out: expand the field of view, zoom out from the target object. 【OPEN】 Aperture +: Increase aperture. When the aperture is at its maximum, the image will display in full white. -
Page 8: System Setup
Press【2】 【8】 Press 【Enter】 Move joystick rightward to Move joystick downward to choose the choose the right baudrate: 9600 right protocol: Pelco-P Press【ENTER】to confirm the selected baud rate. There will be a 1-sec beep sound once the setup is complete. Press【ESC】3 times to exit the setup mode and return to normal working mode. -
Page 9: Restore Factory Settings
Input the new password again then press【ENTER】. There will be a 1-sec beep sound once the setup is complete. Press【ESC】twice (2) to exit password setup page and return to the normal working mode. 5.2.2 Restore factory settings Press and hold【SETUP】for 3 seconds (under normal working mode), then follow the steps below: Move joystick downward Enter password Move joystick downward... -
Page 10: Keyboard Parameters
Check the PTZ indicator light when PTZ indicator light is not flashing, check the move the controller cable connections. If the connection is normal, please contact AViPAS for repairing. Send email to service@avipas.com PTZ camera not If using other brand name PTZ camera, cannot... -
Page 11: Maintenance Service Terms
7. Maintenance Service Terms 7.1 Warranty AViPAS warrants its new product against defects in materials and workmanship for a period of TWO (2) YEAR from ● the date of original invoice. Within three months after the 1-year warranty, if the product is noticed to have the same malfunction as before the ●... - Page 12 Copyright Notice All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only. We may alter the content at any time and without prior notice.
- Page 13 Ver 2021-12-8 (EN) Contact Details: AViPAS, Inc. Address: 1700 Wyatt Drive, Suite #3 Santa Clara, CA 95054 Phone: 1-844-228-4727 Fax: (408) 228-8438 Email: info@avipas.com Website: www.avipas.com...
