Summary of Contents for Avipas AV-3104

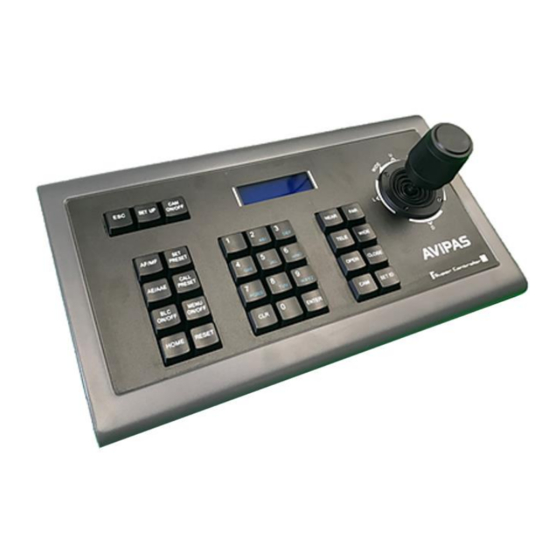

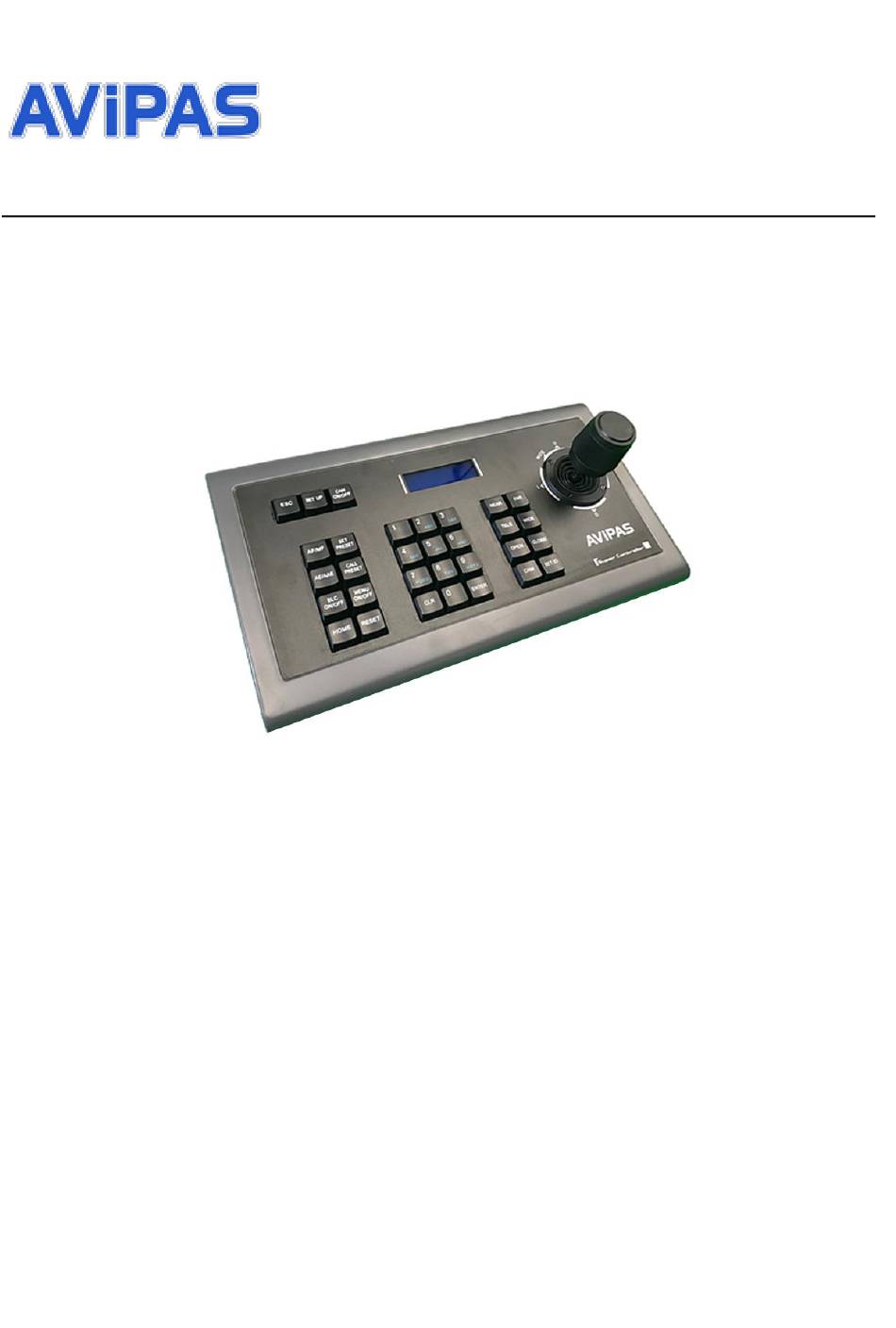

- Page 1 Model: AV-3104 3D Joystick Keyboard Controller User Manual V1.0 (English) Please read this user manual thoroughly before using. www.avipas.com...
-
Page 2: Table Of Contents
Contents 1.Brief Introduction................................2 1.1 Notice..................................2 1.2 Functions and Features............................2 1.3 Items Included................................2 2.Interface Illustrations..............................3 2.1 Rear panel................................3 2.2 Wiring diagram..............................3 2.3 Connection between keyboard and camera......................4 2.4 Connection between cameras..........................4 3.Technical Specifications..............................5 3.1 General specifications.............................5 3.2 Input/Output interface.............................5 3.3 IPC features................................5 4.Controller Operations………............................6 4.1 Keyboard.................................6... -
Page 3: Brief Introduction
1.1 Notice Please read this manual thoroughly before use, and keep it handy for futur e reference. ● Do not use or store AV-3104 in the environment where the product is exposed to rainwater, moisture ● vapor, salty water, oil, etc. -
Page 4: Interface Illustrations
2. Interface Illustrations 2.1 Rear panel Port Physical interface Description • Connect with RS-485: Ta -> RS485+; Tb -> RS485- Control output • Connect with RS422: ① RS-422 (Ta,Tb,Ra,Rb) Ta -> RXD IN-; Tb -> RXD IN+ Ra -> TXD IN-; Rb -> TXD IN+ ②... -
Page 5: Connection Between Keyboard And Camera
Connection with PTZ cameras: 1. Connect the RS485+ on the cameras with Ta on the controller; RS485- with Tb. 2. Deputy control devices: either RS485 output from DVR or keyboard is available. 2.3 Connection between keyboard and camera RS422: RS232: CAMERA CAMERA Ra <········>... -
Page 6: Technical Specifications
RS232: 3. Technical Specifications 3.1 General specifications Communication mode RS485 half-duplex, RS422 full duplex, RS232 serial port Baud Rate 2400bps, 4800bps, 9600bps, 19200bps Interface 5PIN Crimping terminal, RS232 Port Joystick 3D control: up/ down/ left/ right/ rotate Display Backlight LCD screen Input voltage DC12V ±10% Power consumption... -
Page 7: Controller Operations
4. Controller Operations 4.1 Keyboard 【ESC】 Exit or back to the previous menu. 【SETUP】 Parameter setting: press and hold the button for 3sec to enter the KBD parameter setting page. 【CAM ON/OFF】 Camera power on/off 【AF/MF】 Auto focus/ Manual focus (when choose Manual focus, focus adjustment is done by 【FOCUS+ 】/【FOCUS-】. -
Page 8: Lcd Screen Display
【FAR】 Focus out: manually focus out to make near distance objects clearer. 【TELE】 Narrow-angle button/ Zoom-in: reduce the field of view, zoom in to the target object. 【WIDE】 Wide-angle button/ Zoom out: expand the field of view, zoom out from the target object. 【OPEN】... -
Page 9: System Setup
Press and hold【SETUP】button for 3 seconds (under normal working mode), then follow the steps below: Enter password (default is 8888) Press【Enter】 Press【2】 【8】 Press 【Enter】 Move joystick rightward to Move joystick downward to choose the choose the right baudrate: 9600 right protocol: Pelco-P Press【ENTER】to confirm the selected baud rate. -
Page 10: Restore Factory Settings
Input password then 【Enter】 Move joystick downward 【Enter】 【Enter】 Input the original password then press【Enter】 Input new password (4 digits), press 【Enter】 Input the new password again then press【ENTER】. There will be a 1-sec beep sound once the setup is complete. Press【ESC】twice (2) to exit password setup page and return to the normal working mode. -
Page 11: Keyboard Menu
5.3 Keyboard menu Protocol PELCO-D, PELCO-P, VISACA Camera address: 0-255 (to be set) Baud Rate 2400/ 4800/ 9600/ 19200 > PTZ Setup Camera address：0-255 Same as above (uniform settings for all devices) 4 digits OLD PW： old password NEW PW: new >... -
Page 12: Appendix
6. Appendix 6.1 Transmission distance： When a 0.56mm (24AWG) twisted pair cable is used as the communication cable, the theoretical value of the maximum transmission distance varies with different baud rate settings: 2400bps: 5900ft (1800m) 19200bps: 1960ft (600m) When using a thinner communication cable, or when the product is used in an environment with strong electromagnetic interference, or when too many devices are connected to the same controller, the maximum transmission distance will be shortened accordingly. -
Page 13: Trouble Shooting
Check whether the PTZ indicator light PTZ indicator light does not flicker: check if flickers when move the controller the RS485 connection is secure. If the connection is normal, please contact AViPAS for repairing. Check cable connections Check and secure all connecting cables... -
Page 14: Maintenance Service Terms
7. Maintenance Service Terms 7.1 Range of warranty AViPAS warrants its new product against defects in materials and workmanship for a period of ONE (1) YEAR from ● the date of original invoice. Within three months after the 1-year warranty, if the product is noticed to have the same malfunction as before the ●... -
Page 15: Warranty Conditions
7.2 Warranty conditions Customers may be asked to send the warranty card and a detailed description of the problem together with the product ● for repair. 7.3 Shipping If the product needs to be sent back to the manufacturer for repair, the customer can send it back to the manufacturer ●... - Page 16 Ver 2019-9-16 (EN) Contact Details: AViPAS, Inc. Address: 4320 Stevens Creek Blvd. Suite 227 San Jose, CA 95129 Phone: 1-844-228-4727 Fax: (408) 228-8438 Email: info@avipas.com Website: www.avipas.com...
