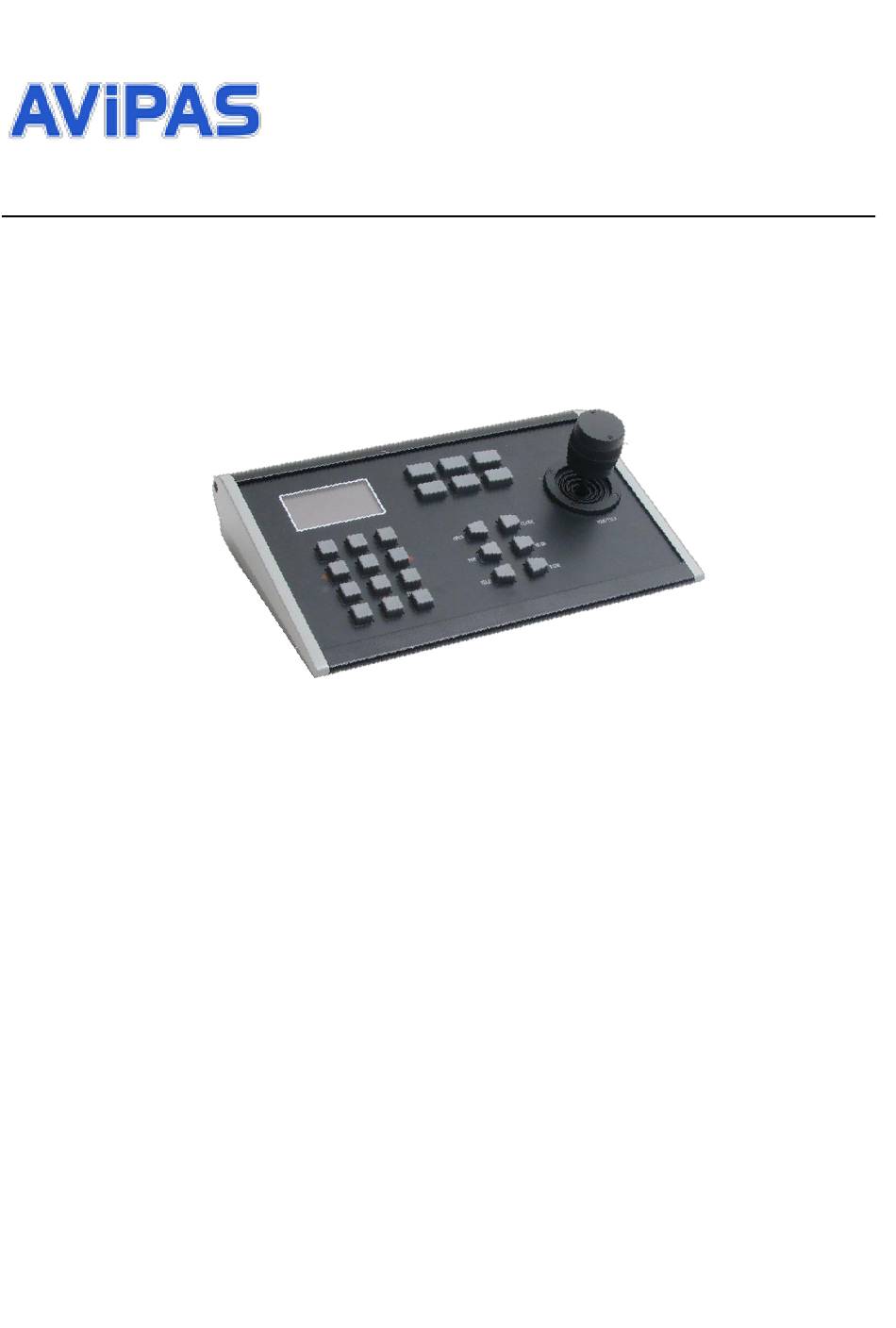

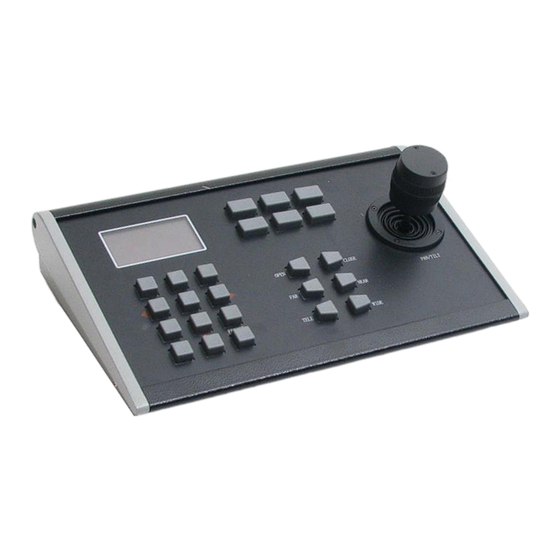

- Page 1 Model: AV-3104 3D Joystick Keyboard Controller User Manual V3.2 (English) Please read this user manual thoroughly before using. www.avipas.com...
-
Page 2: Table Of Contents
Contents 1. Brief Introduction……………………………………………………………………………………………..…2 1.1 Notice…………………………………...…………………………...……………………………….……..….2 1.2 Functions and Features…………………………………….………………....……………………….…2 1.3 Items Included…………………………………...……...…………...……………………………….……..….2 2. Interface Illustrations…………………………………………………………….……………………….…….…3 3. Technical Specifications………………………….………………………..…………………………..……..……4 3.1 General Specifications…………………..…………………………………………………………….……..4 3.2 Input/Output Interface…………………………………………………..……………………………..….……4 3.3 IPC Features……………………………………………..…………………………………………..……..…4 4. OSD Operation………………………………………………….………………… …………….……………..….5 4.1 Operation Introduction………………………………………….……………………..………………..……….5 4.2 Main Menu…………………………………………………….…………………..………………..……….….6 4.2.1 Main Control Interface…………….…………………………………………………………………..6 4.2.2 Keyboard Menu...…………………………….………………………………..……….………………..6 4.2.2.1 Keyboard settings………………………………………………………………………………...6 4.2.2.2 Function key settings……………………………………………………………………………..7... -
Page 3: Brief Introduction
1.1 Notice Please read this manual thoroughly before use, and keep it handy for future reference. ● Do not use or store AV-3104 in the environment where the product is exposed to rainwater, ● moisture vapor, salty water, oil, etc. -
Page 4: Interface Illustrations
2. Interface Illustrations Power Supply Interface: connect DC12V/500mA power supply. ● RJ45 Interface from right to left are: RS485+, RS485-, GND, and DC12V+. ● RS485, RS422 interfaces from right to left are: 485+ , 485-, 422A, 422B, 422Z, and 422Y. ●... -
Page 5: Technical Specifications
3. Technical Specifications 3.1 General Specifications Key: constant open key ● Joystick: 3-axis joystick, automatic back to zero (center position) ● Digital display: 12864 LCD display ● Temperature: -7 ~ 49C° ● Humidity: 10 ~ 90% ● Dimension (L x W x H): 34 x 18 x 5cm / 13.4 x 7.1 x 2inch ●... -
Page 6: Osd Operation
4. OSD Operations 4.1 Basic operations *Note: All the keyboard instructions mentioned in this manual should be operated in accordance with the specified order. For example: 【1】+【CAM】 indicates that press 【1】 first, then press 【CAM】. PAN/TILT Control ● Push the joystick up, down, to the right, to the left to control the directions of the dome/camera. The speed of pan and tilt is relative to the amount of movement applied to the joystick;... -
Page 7: Main Menu
presets, 【F5】 return to zero position, 【F6】direction keys. 4.2 Main Menu 4.2.1 Control Interface At the top, the main menu shows: 1. the communication protocol: Pelco-D (other options: Pelco-P, VISCA); 2. baud rate: 9600 (other options: 1200, 2400, 4800); In the middle, the main menu shows: 1. -
Page 8: Function Key Settings
4.2.2.2 Function Key Settings == FUNCTION KEY == KEY NO. AUX OPEN EXIT Enter the FUNCTION KEY submenu, the user has access to make changes to the settings: 1. Set the Key No.: F1, F2, F3, F4, F5, F6; 2. Function options: Arrow Key, Reset Dome, Camera SW(switch), Goto Zero(back to center position), Zoom Set, Position, Camera BL(backlight), Manu Focus, Auto Focus, Disable, and CLR preset. -
Page 9: Language Setting
4.2.2.6 Language Setting ====LANGUAGE==== LANG ENGLISH EXIT Language options: Chinese, English 4.2.2.7 Default factory settings Under the main menu, use key combination 【686】+【F6】 to restore the default factory settings. 4.2.2.8 Version information Under the main menu, use key combination 【1000】+【F6】 to check the version information. *Note: all the operations mentioned above are under the assumption of using Pelco-P or Pelco-D protocol. -
Page 10: Maintenance Service Terms
5. Maintenance Service Terms 5.1 Range of Warranty AViPAS warrants its new product against defects in materials and workmanship for a period of ONE (1) YEAR ● from the date of original invoice. Within three months after the 1-year warranty, if the product is noticed to have the same malfunction as before ●... - Page 11 Product specifications and information which were referred to in this document are for reference only. We may alter the content at any time and without prior notice. Ver 2018-8-1 (EN) Contact Details: AViPAS, Inc. Address: 4320 Stevens Creek Blvd. Suite 227 San Jose, CA 95129 Phone: 1-844-228-4727...
