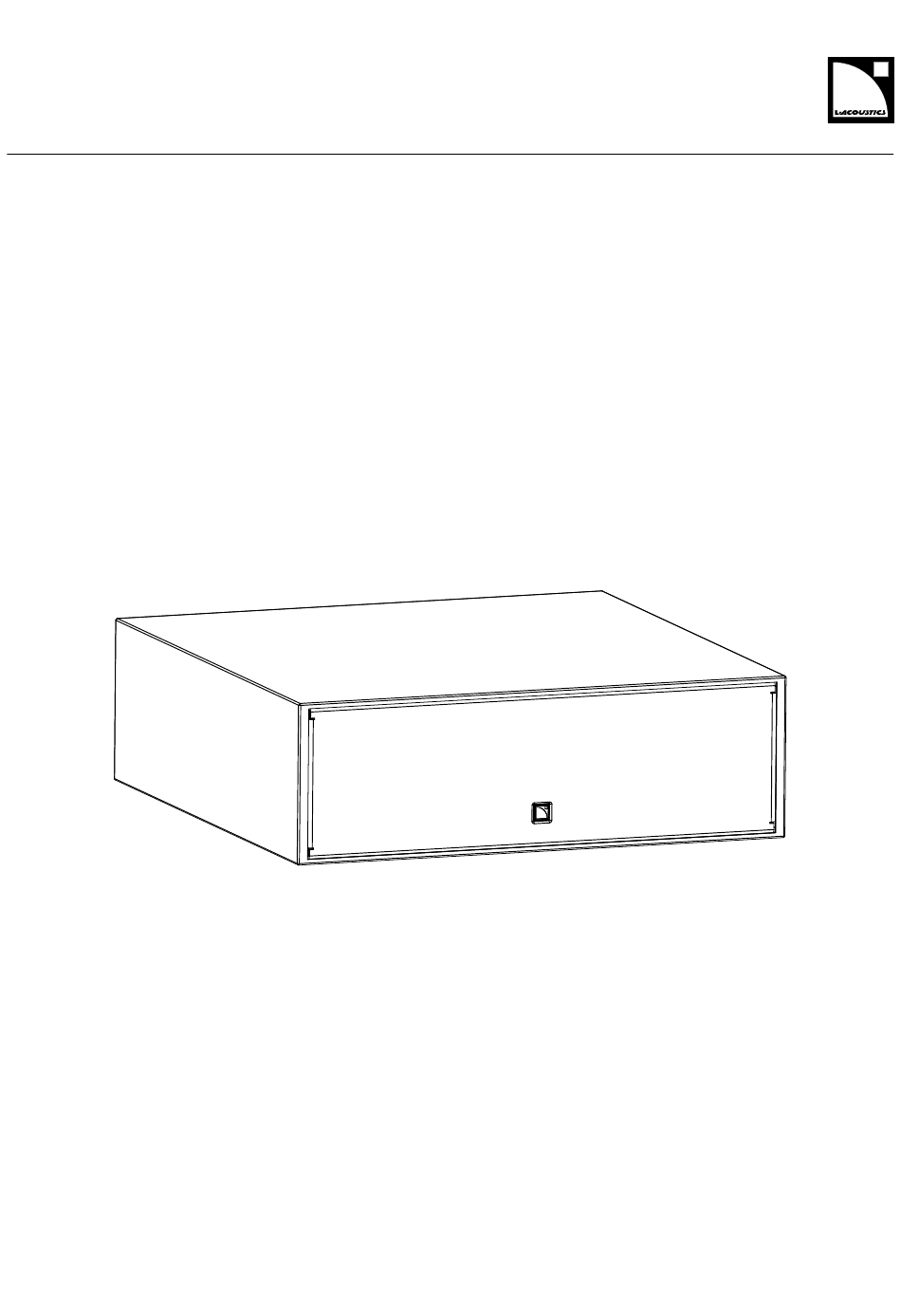

- Page 1 SB10i owner's manual (EN)
- Page 2 Document reference: SB10i owner's manual (EN) version 1.0 Distribution date: March 22, 2022 © 2022 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
-
Page 3: Table Of Contents
Contents Safety................................4 Instructions..............................4 Introduction................................ 6 SB10i ultra-compact subwoofer........................6 How to use this manual..........................6 Revision history............................7 System components.............................8 Electro-acoustical description..........................9 Preset description............................9 Connectors............................... 9 Rigging system description..........................10 SB10i..............................10 Mechanical safety.............................11 Loudspeaker congurations..........................12 SB10i in standard conguration....................... 12 Connection to LA amplied controllers........................ -
Page 4: Safety
Respect the Working Load Limit (WLL) of third party equipment. L-Acoustics is not responsible for any rigging equipment and accessories provided by third party manufacturers. Verify that the Working Load Limit (WLL) of the suspension points, chain hoists and all additional hardware rigging accessories is respected. - Page 5 This system is intended for use by trained personnel for professional applications. As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to change the specications of its products and the content of its documents without prior notice.
-
Page 6: Introduction

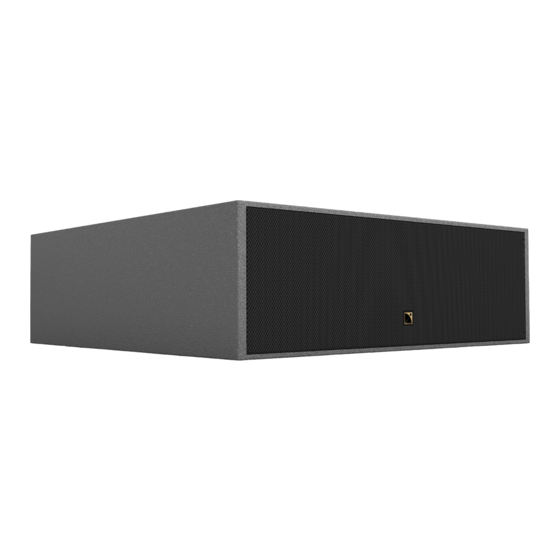

Despite its slim prole and light weight, SB10i delivers the same sonic signature as larger subwoofers offering the recognized L-Acoustics contour when paired with X4i or 5XT, matching the needs of residential, commercial, luxury and hospitality spaces, museums, and more. -
Page 7: Revision History
Introduction Revision history version number publication date modication Mar. 2022 Initial version. SB10i owner's manual (EN) version 1.0... -
Page 8: System Components
System components System components Loudspeaker enclosures SB10i Ultra-compact subwoofer: 1 x 10" (installation version) Powering and driving system LA2Xi / LA4X / LA8 / Amplied controller with DSP, preset library and networking capabilities LA12X Refer to the LA2Xi / LA4X / LA8 / LA12X owner's manual for operating instructions. Cables 2 ×... -
Page 9: Electro-Acoustical Description
OUT 4 IN A 0 dB 0 ms Connectors SB10i 1 × 4-point terminal block with push-in connection Internal pinout for L-Acoustics subwoofers Terminal block points IN + IN - Transducer connectors LF + LF - SB10i owner's manual (EN) version 1.0... -
Page 10: Rigging System Description
Rigging system description Rigging system description SB10i Four removable runners are provided for ground-stacking SB10i. Remove the placeholder screws and tighten the runners by hand. SB10i can be mounted on a wall or a ceiling with custom accessories using the inserts on the bottom. Refer to APPENDIX B: Specications for custom rigging (p.28) for more information. -
Page 11: Mechanical Safety
Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform, or stage, always check that the latter can support the total weight of the array. As a general rule, L-Acoustics recommends the use of safety straps at all times. SB10i conguration... -
Page 12: Loudspeaker ConGurations
Loudspeaker congurations Loudspeaker congurations SB10i in standard conguration Deployed in a standard conguration, an SB10i system operates with an omnidirectional directivity pattern over the nominal bandwidth of the SB10i enclosure. The [SB10_100] and [SB10_200] factory presets provide the subwoofer system with an upper frequency limit at 100 Hz and 200 Hz respectively, in order to optimize the acoustic coupling with a main full-range system. -
Page 13: Connection To La AmpliEd Controllers
Connection to LA amplied controllers Connection to LA amplied controllers Refer to the Amplication reference technical bulletin for the latest information on compatibility with amplied controllers and cabling schemes for all enclosure types. Enclosure drive capacity per amplied controller Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller (refer to the footnotes). - Page 14 Connection to LA amplied controllers One-channel speakON output custom cable 2.5 mm² cable 1+/1- Two-channel speakON output custom cable 2.5 mm² cable 1+/1- 2+/2- 2.5 mm² cable SB10i owner's manual (EN) version 1.0...
-
Page 15: Cabling Sb10I
Connection to LA amplied controllers Cabling SB10i Accessory connector sealing plate (mounted on enclosure) Screws and fasteners 2 M4×12 screws (mounted on enclosure) Tools torque screwdriver T20 Torx bit small tool or at screwdriver (3 mm or less) Min number of operators Assembly Prerequisite The cable glands on the connector sealing plate are compatible with cables up to 2 ×... - Page 16 Connection to LA amplied controllers 2. Insert the cable through the cable gland. 3. Strip the wires of the cable. 25 mm / 1 in 12 mm / 0.5 in 2 × 2.5 mm² cable Refer to the cable manufacturer documentation for the wire color code. 4.
- Page 17 Connection to LA amplied controllers 5. Secure the connector sealing plate to the enclosure. Apply a torque of 1 N.m. 1 N.m What to do next To remove the cables, use the small tool to unlock the terminals and pull on the wires. SB10i owner's manual (EN) version 1.0...
-
Page 18: Corrective Maintenance
D/R - Trapdoor (p.20) • D/R - LF speaker (p.21) For advanced maintenance, contact your L-Acoustics representative. Tools and consumables Before performing maintenance on this product, make sure all the tools listed are available. References are given for ® FACOM products in this table. -
Page 19: Sb10I
Corrective maintenance SB10i SB10i exploded view In order to operate, follow the order outlined here. Each assembly refers to the corresponding Disassembly/Reassembly (D/R) procedure and the necessary repair kit. Trapdoor LF speaker G03659 SB10i owner's manual (EN) version 1.0... - Page 20 Corrective maintenance Disassembly and Reassembly procedures D/R - Trapdoor Tools • torque screwdriver • T25 Torx bit • at tool Repair kit G03659 KR loudspeaker 10" SB10i ×4 ×2 S100086 S100033 M5×16 Torx M5×25 Torx Exploded view For safety reasons, always use the new screws and spare parts provided in the KR. If no new screws are available, use blue threadlocker.
- Page 21 Corrective maintenance D/R - LF speaker Tools • torque screwdriver • T25 Torx bit Repair kit G03659 KR loudspeaker 10" SB10i ×1 ×4 18298 S100228 10" LF speaker - 8 Ω M5x25 Torx Prerequisite Trapdoor removed. D/R - Trapdoor (p.20). Exploded view For safety reasons, always use the new screws and spare parts provided in the KR.
- Page 22 Corrective maintenance Acoustical check Enclosure check This feature is available on: LA4X LA12X ENCLOSURE CHECK measures impedance at the reference frequencies for the connected loudspeaker family. The measured impedance is compared to the expected range allowing for fast detection of loudspeakers presenting circuit continuity issues.
- Page 23 Corrective maintenance 7. Depending on the displayed results, follow the instructions in the table. result interpretation instructions measured impedance is within expected range enclosure is in working order electrically unsupported preset family only supported enclosures should be tested Not Connected if cables are connected: a.
- Page 24 Corrective maintenance Listening test enclosure preset usable bandwidth SB10i [SB10_100] 27 Hz - 118 Hz Procedure 1. Load the preset on an LA2Xi / LA4X / LA8 / LA12X amplied controller. 2. Connect a sinus generator to the amplied controller. Risk of hearing damage Set a low sound level to start and use ear protection to adjust before testing.
-
Page 25: SpeciCations
Specications Specications SB10i specications Description Ultra-compact subwoofer: 1 x 10" (installation version), amplied by LA2Xi / LA4X / LA8 / LA12X with preset [SB10_100] with preset [SB10_200] Low frequency limit (-10 dB) 27 Hz 29 Hz Maximum SPL with LA2Xi (bridge mode) / 122 dB 124 dB LA4X / LA8 / LA12X... - Page 26 Specications SB10i dimensions 539 mm / 21.2 in 178 mm / 7 in SB10i owner's manual (EN) version 1.0...
-
Page 27: Appendix A: Recommendation For Speaker Cables
8 Ω load 4 Ω load 2.7 Ω load Use the more detailed L-Acoustics calculation tool to evaluate cable length and gauge based on the type and number of enclosures connected. The calculation tool is available on our website: https://www.l-acoustics.com/installation-tools/... -
Page 28: Appendix B: SpeciCations For Custom Rigging
Specications for custom rigging Specications for custom rigging Dimensions Refer to SB10i dimensions (p.26). Center of gravity 4.8 mm / 0.16 in Weight SB10i: 15 kg / 33 lb Threaded inserts and screws Use only rigging inserts to implement a custom rigging Inserts marked with can be used for rigging. - Page 29 Specications for custom rigging 420 mm / 16.5 in 38 mm / 2.9 in 38 mm / 2.9 in 184 mm / 7.3 in SB10i owner's manual (EN) version 1.0...
