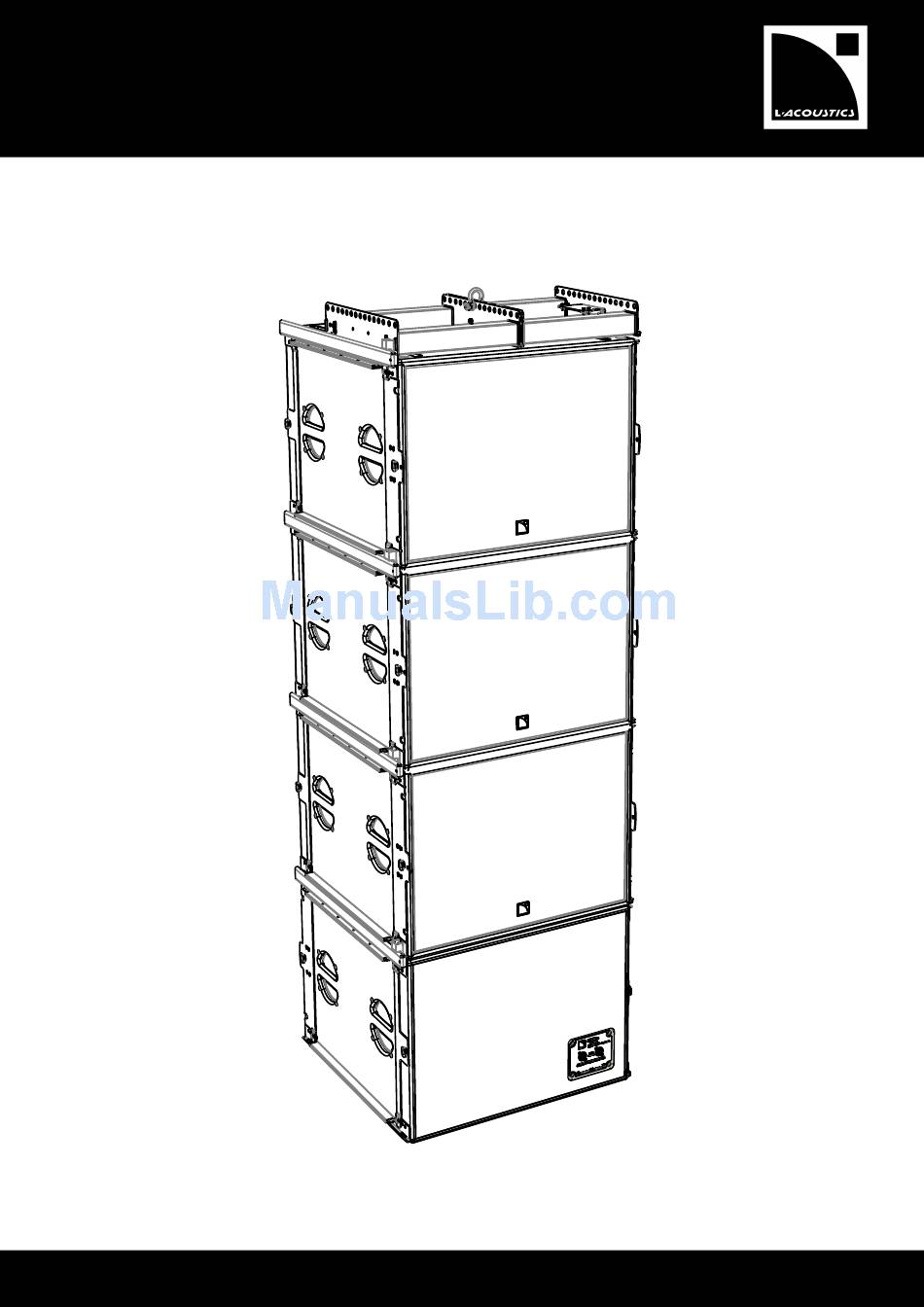

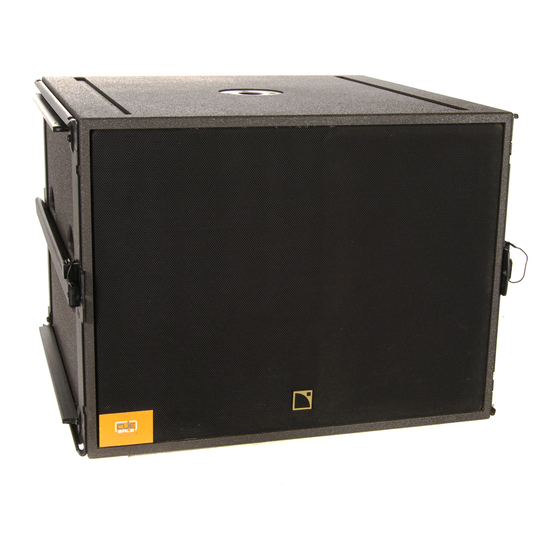

- Page 1 SB18m SUBWOOFER SB18 SUBWOOFER SB18 SB18 SUBWOOFER SUBWOOFER RIGGING MANUAL RIGGING MANUAL RIGGING MANUAL RIGGING MANUAL VERSION 1.0 w w w . l - a c o u s t i c s . c o m...
- Page 2 Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform, ® or stage, always check that the latter can support the total weight of the array. As a general rule, L-ACOUSTICS recommends the use of safety straps at all times.
-
Page 3: Table Of Contents
This document contains essential information on rigging the system properly and safely. Carefully read this document in order to become familiar with these procedures. ® As part of a continuous evolution of techniques and standards, L-ACOUSTICS reserves the right to change the specifications of its products and the content of its document without prior notice. -
Page 4: Rigging System
SOUNDVISION Proprietary 3D acoustical and mechanical modeling software Accessories SB18PLA Removable front dolly board for moving the SB18m enclosure and protecting its front grill during transportation and storage SB18COV Protective cover for transportation and storage w w w . l - a c o u s t i c s . c o m... - Page 5 WIFOBUMP SB18m CLAMP250 SOUNDVISION SB18PLA SB18COV Elements involved in the SB18m rigging process w w w . l - a c o u s t i c s . c o m ARCSWIFO_RM_EN_1-0 5 5 5 5...
-
Page 6: Mechanical Safety
MECHANICAL SAFETY SAFETY MECHANICAL MECHANICAL SAFETY SAFETY Maximum configurations The SB18m rigging system has been designed to comply with BGV-C1 (2012) and EN ISO 12100-1 (2004) when implementing the following vertical arrays: Ground-stacking Flying On the floor With WIFOBUMP With... -
Page 7: System Set-Up
Independent or mixed This document only deals with independent rigging of the SB18m subwoofer enclosure. When using the SB18m enclosure as a companion to a main system, some combined configurations will imply ® the set-up of mixed arrays. At this point, it is especially the case of ARCS WIDE/SB18m or ®... -
Page 8: Flying
Identify the appropriate flying option and rigging hole(s) by modeling the system in SOUNDVISION. Vertical Place the first enclosure (logo down) Place and lock a second SB18m on top of the first one (logo down) Refer to PROCEDURE A to lock the SB18MRIG bars Remove the coupling bars from their storage location... -
Page 9: Rigging Procedures
Locking a SB18MRIG bar Coupling bars and SB18m For SB18m/SB18m or SB18m/WIFOBUMP attachment, only use the long SB18MRIG bars stored on the SB18m subwoofers. The shorter WIFORIG bars cannot ensure the mechanical safety of these connections. RIGGING: Slide the bar into adjacent rigging rails from the front of the array. -
Page 10: Installing A Shackle Or Clamp250
SB18 SB18 SB18 SB18m SUBWOOFER SUBWOOFER SUBWOOFER SUBWOOFER rigging manual rigging manual rigging manual rigging manual VERSION 1.0 Installing a shackle or CLAMP250 Refer to SOUNDVISION modeling to identify the hole number that corresponds to the desired tilt angle. Hole numbering... - Page 11 w w w . l - a c o u s t i c s . c o m ARCSWIFO_RM_EN_1-0...
- Page 12 Document reference: SB18m_RM_EN_1-0 Distribution date: September 25, 2012 ® © 2012 L-ACOUSTICS . All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
