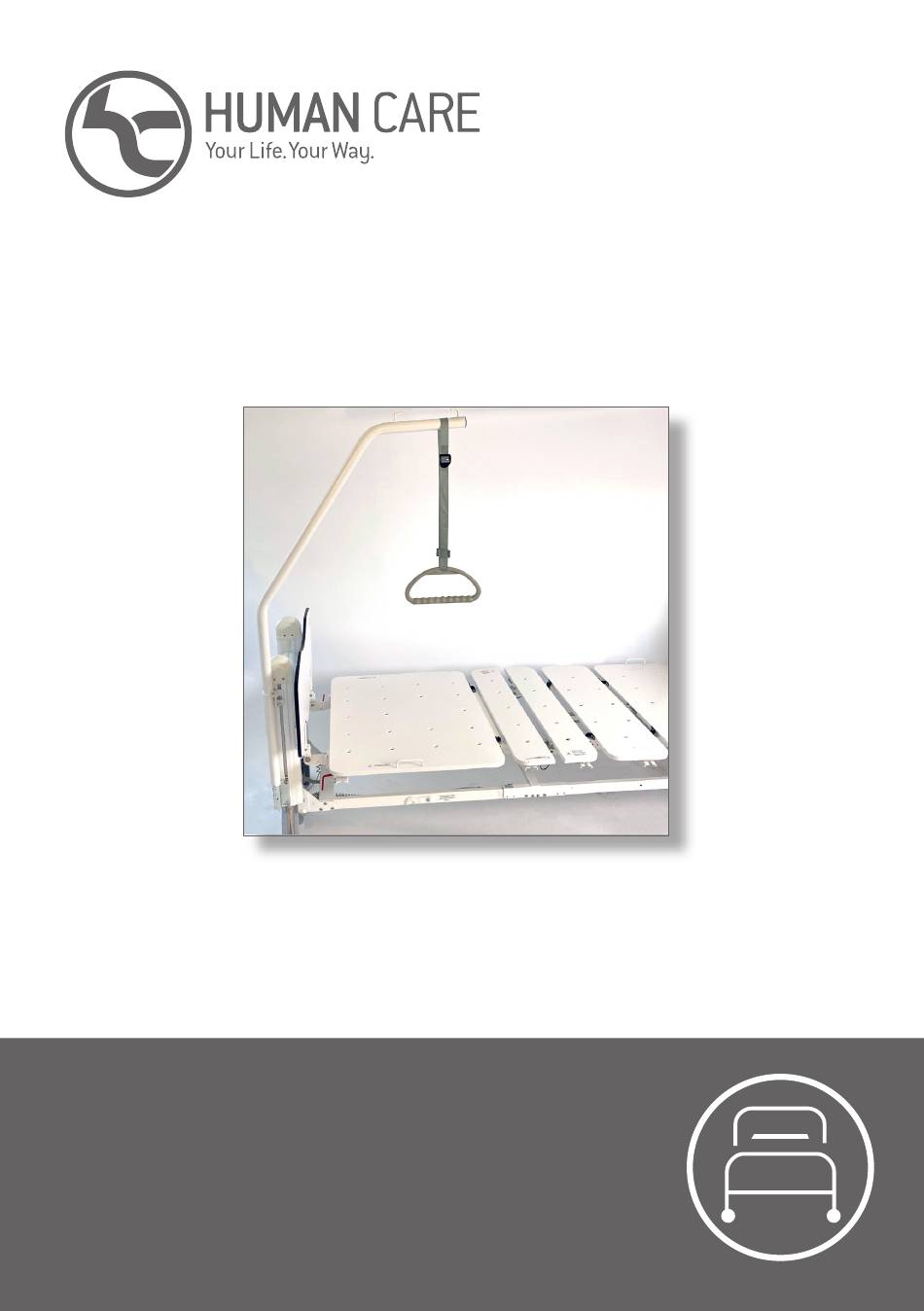

- Page 1 Self Help Pole (FLi & FLi-plus) 90700 User Manual...
-
Page 2: Table Of Contents
Content ENGLISH User Manual Compliances and Standards Technical Specifications Responsibility of users Safety Advice Intended Use Assembly/Disassembly Instructions Operation Instructions Maintenance and service Recycling www.humancaregroup.com... -
Page 3: User Manual
Notice to user/patient in case of serious incident Human Care’s products are continuously Any serious incident that has occurred in being developed and updated to provide our relation to the product, should be reported customers with the highest quality. -
Page 4: Compliances And Standards
You should therefore also regard this User or damage to product may occur! Manual, as a practical reference book, to be Please contact Human Care in the event of any kept near the product and readily available uncertainties or questions. -
Page 5: Technical Specifications
Technical Specifications Specifications (mm / inch ‐ kg / lbs) Self Help Pole Height* 129 cm / 50.8” Handle Height Max - Min* 113 cm - 62 cm / 44.5” - 24.4” Side-to-side turn angle 90° (within the bed frame) Max user weight 75kg / 165 lbs *Distance from bed platform without mattress... -
Page 6: Safety Advice
Self Help Pole Safety Advice Safety Symbol Safety advice for the user In this manual the adjacent safety warning Make sure that the operator instructs you in the symbol is shown as: safe operation of this product. This safety symbol does not Each time, before using the product, check that it is in perfect working order. -
Page 7: Intended Use
This accessory should only be used with It is important that only Human Care accessories Floorline models from Human Care with the are fitted to Human Care beds, as any incompatible accessories can create hazards. following article numbers. Product Name... -
Page 8: Assembly/Disassembly Instructions
Self Help Pole Assembly/Disassembly Instructions Self Help Pole 90700 Content: Number Description Qty. Self Help Pole Handle Support Bracket Top Mounting Plate Handle Band Support Bracket Bottom Washer Screw M10 (allen key 6 mm) www.humancaregroup.com... - Page 9 INFO: The Self Help Pole should be assembled on the same side as the directional lock castor, the lock pedal is dark grey and on the right hand side of the patient’s head in the bed. Assembly: 1. Put the mounting plate (4) inside the pre made sliding track of the bed head pillar (seen above) 2.
- Page 10 Self Help Pole Assembly: 6. Slide the mounted Support Bracket Top to the top end of the sliding track untill it stops. 7. Tighten the screw completely with Allen Key 6 mm. www.humancaregroup.com...
- Page 11 Assembly: 8. Put the mounting plate (4) inside the sliding track of the bed head pillar. 9. Place the Support Bracket Bottom (6) paralell to the Mounting Plate (4), and align the upper hole with the Mounting Plate. 10. Take one of the Screws M10 (8) and add a Washer (7).
- Page 12 Self Help Pole Assembly: 14. Take the Self Help Pole (1) and assemble through the Support Bracket Top and push into Support Bracket Bottom. 2. Pull the Handle Band (5) through the small hole in the Handle (2). 3. Pull the Handle Band through the pre‐sewn loop on the band.
-
Page 13: Operation Instructions
Operation Instructions 1. Set the handle height by adjusting the handle band’s tightness. 2. The patient grabs the handle by one or two hands. 3. The patient pulls themselves in the desired direction to move within the confines of the bed. -
Page 14: Maintenance And Service
Self Help Pole Maintenance and service Inspection, care and maintenance check list User inspections of this accessory should be carried out together with the Floorline bed every 6 months. Check: • Check for Damage/Cleanliness Faults: See bed description, accessories and Action •... - Page 15 HUMAN CARE SWEDEN (HQ) Årstaängsvägen 21B 117 43 Stockholm Phone: +46 8 665 35 00 Fax: +46 8 665 35 10 Email: info.se@humancaregroup.com HUMAN CARE CANADA 10-155 Colonnade Road Ottawa, ON K2E 7K1 Phone: +1 613 723 6734 Fax: +1 613 723 1058 Email: info.ca@humancaregroup.com...
