FireplaceXtrordinair 4415 HO GSR2 Owner's Manual

Hide thumbs Also See for 4415 HO GSR2:
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
 Copyright 2022, T.I.

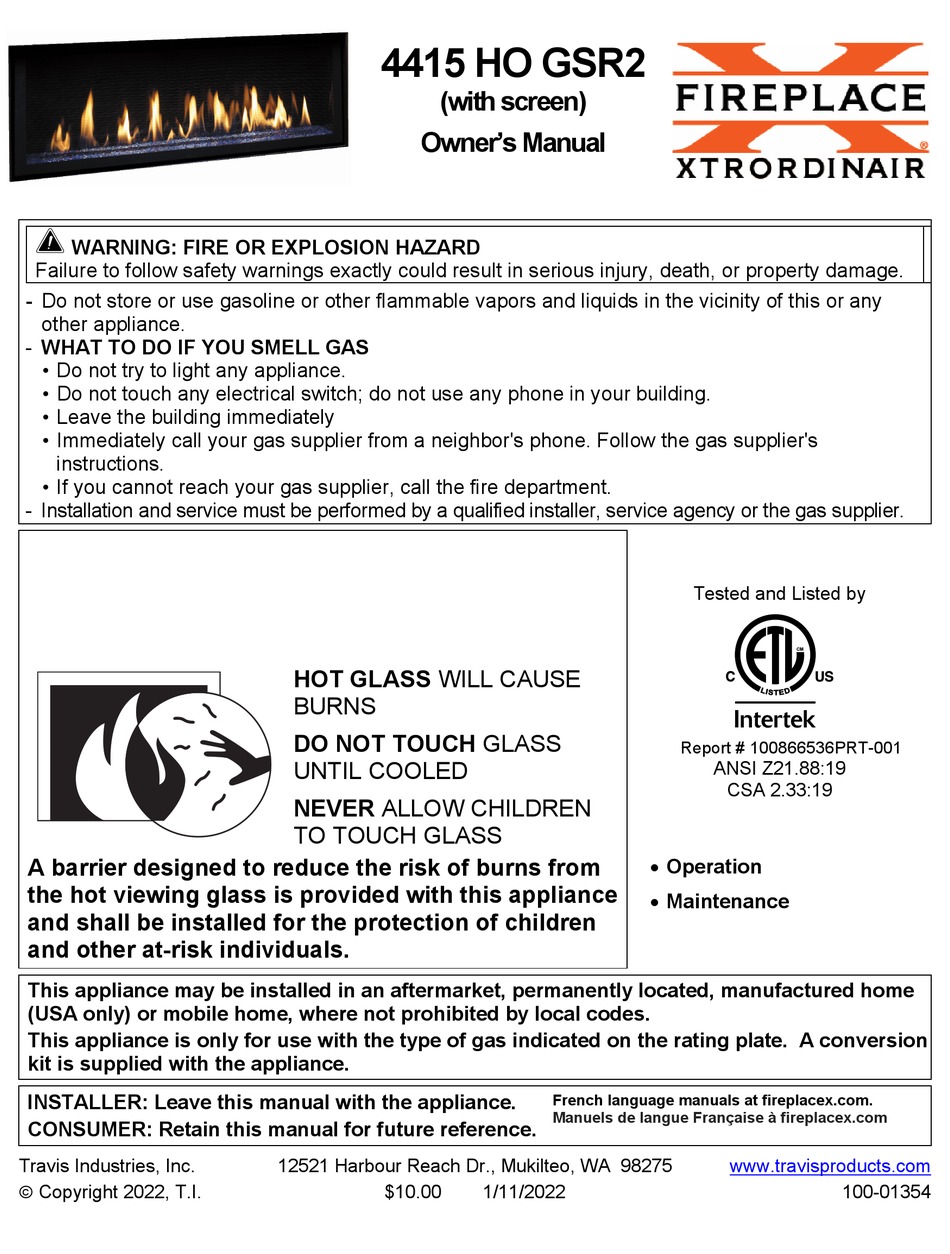

4415 HO GSR2
(with screen)
Owner's Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
 Operation
 Maintenance
French language manuals at fireplacex.com.
Manuels de langue Française à fireplacex.com
1/11/2022
Tested and Listed by
Report # 100866536PRT-001
ANSI Z21.88:19
CSA 2.33:19
www.travisproducts.com
100-01354

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4415 HO GSR2 and is the answer not in the manual?

Questions and answers

Related Manuals for FireplaceXtrordinair 4415 HO GSR2

Summary of Contents for FireplaceXtrordinair 4415 HO GSR2

  • Page 1 4415 HO GSR2 (with screen) Owner’s Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Introduction

    Installation Warnings  Installation requirements are printed in the 4415 HO GSR2 Installation Manual. All requirements in the installation manual must be met.  Failure to follow all of the requirements may result in property damage, bodily injury, or even death.

  • Page 3: Table Of Contents

    Introduction Table of Contents Accent Light ............14   Introduction ........... 2   Display Fahrenheit or Celsius ....14   Important Information ........2   Low Battery Indicator ......... 14 Installation Warnings ........2     Transmitter Batteries ........14  ...
  • Page 4 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
  • Page 5 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.

  • Page 6: Before You Begin

    Operation Before You Begin  Read this entire manual before you use your new fireplace (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Remote Control Warnings KEEP BATTERIES INSTALLED AT ALL TIMES The remote control system requires the batteries to remain in place at all times.

  • Page 7: Remote Set-Up

    Operation Remote Set-Up Verify the Switch is on “REMOTE” To access the remote switch, remove the concealment cover and screen (see page 20). Locate the heat shield and remove it (see illustration below). NOTE: the heat shield must be in place whenever the fireplace is in operation.

  • Page 8: Starting The Heater For The First Time

    Operation Starting the Heater for the First Time  Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal.

  • Page 9: Continuous/Intermittent Pilot Switch

    Operation Continuous/Intermittent Pilot Switch This heater may run with the pilot continuously running or in Intermittent mode. For most homeowners, Intermittent mode is preferable (this saves fuel, doesn’t give off un-needed heat). However, in some situations the homeowner may prefer to switch the heater to Continuous Pilot mode. The most typical reasons for switching to Continuous Pilot are: ...

  • Page 10: Pilot Fuel Conservation Timer

    Operation Pilot Fuel Conservation Timer 7 Day Pilot Shutoff Timer (applies to units in CPI mode only) This appliance may be equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes).

  • Page 11: Remote Operation

    Operation Remote Operation When the switch on the battery holder is set to “REMOTE” the transmitter operates the fireplace. Once you understand how the transmitter works, you will be able to operate your fireplace quickly and easily. Display Overview The transmitter display has four main sections (see below). Thermostat Display Room Temperature Display Read-Out (Thermostat Setting, Function, etc.)

  • Page 12: Manual On-Off / Smart Thermostat / Standard Thermostat

    Operation Manual On-Off / Smart Thermostat / Standard Thermostat Use the thermostat button to cycle through the three thermostat settings (see below). Look here for the Press the thermostat button to cycle thermostat setting. through the thermostat settings. SMART  MANUAL ON/OFF – The burner will turn on and off using the remote (see below). Press the On/Off button to control the burner.

  • Page 13: Mode Controls (Flame, Blower, Light)

    Operation Mode Controls (Flame, Blower, Light) Press the Mode button to cycle through the four mode controls (see below). Press the mode button to cycle through the mode settings. Flame Height Accent Look here for Light mode controls. Optional Blower Flame Height Flame height may be controlled using the UP and DOWN buttons when in Flame Height Mode (see below).

  • Page 14: Mode Controls (Continued)

    Operation Mode Controls (continued) Accent Light The Accent Light (night light) inside the heater may be turned on and off using the up and down buttons when in Accent Light mode (see below). The center display will display the 7 settings, from “OFF” to “HI” for full on.

  • Page 15: Battery Replacement

    Operation Battery Replacement Battery Box (inside fireplace) Install four AA batteries into the battery box (see below). These batteries act as a power backup in case the household (AC) current goes out. To access the battery box, remove the concealment cover and screen (see 20). Locate the heat shield and remove it (see illustration below).

  • Page 16: Battery Installation

    Operation Battery Installation Install (4) AA batteries into the battery holder (see illustration below). These batteries act as a power backup in case the household (AC) current goes out. Transmitter Battery Installation Install the three included AAA batteries into the remote. Power Outages The remote will work if household current (AC power) is disconnected.

  • Page 17: Child-Proof Feature

    Operation Child-Proof Feature The child-proof feature disables the control buttons, preventing unwanted use of the remote.  Press both the MODE and UP buttons simultaneously to turn this feature on or off. HINT: This feature is especially useful while using the thermostat setting. Child Proof Indicator Normal Operating Sounds The appliance may creak with change of...

  • Page 18: Yearly Service Procedure

    Maintenance Yearly Service Procedure WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician.  Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from obstruction to operate.

  • Page 19: Accent Light Replacement

    Maintenance Accent Light Replacement The accent lights in your heater provide additional lighting. The bulbs will burn out over time. To replace, follow the directions below:  Shut off gas to the heater and let it cool for 15 minutes. ...

  • Page 20: Glass Frame Removal And Installation

    Maintenance Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
  • Page 21 Maintenance Follow the instructions in the gray box below for appliances made before July 2020. For later units see the instructions immediately after the gray box. 2. Remove the three screws holding the screen in place (1/4” nutdriver- magnetic driver recommended). Then pivot the screen down slightly until the clips on the bottom disengage from the glass frame.
  • Page 22 Maintenance  Lift up on the barrier screen assembly until the top brackets are clear of the tabs on the glass frame assembly. Direct the top edge of the barrier screen forward NOTE: The tabs on the bottom of the barrier screen are long enough that they will still be in the bottom brackets on the glass frame assembly when the top is free.
  • Page 23 Maintenance  Use the glass tool to unlatch the glass frame. Remove the glass frame. The glass frame is held in place with four tabs inserted into four slots at the bottom of the firebox opening. © Travis Industries 1/11/2022 - 1354 4415 HO Owners...

  • Page 24: Crushed Glass Installation

    Maintenance Crushed Glass Installation Do not allow the crushed glass to block the air slots or to become too thick (maximum 1 layer deep on the burner). Failure to properly install glass may lead to sooting and improper burning. If converting to LP (propane), convert the appliance prior to placing the crushed glass. Install the crushed glass on the glass tray following the directions below.

  • Page 25: Glass Cleaning

    Maintenance Glass Cleaning The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface. WARNING: do not operate the fireplace without the glass frame in place. ©...

  • Page 26: Troubleshooting Table

    Maintenance Troubleshooting Table Don't Call for Service Until Problem: Possible Cause: You: The battery box switch is turned to "OFF" Turn the battery box switch to "ON". The remote control is not working correctly See the remote control instructions. Burner Will Not Start The thermostat is disconnected or set too low See "Thermostat Operation".

  • Page 27: Wiring Diagram

    Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person.

  • Page 28: Conditions & Exclusions

    Limited 7 Year Warranty Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.
  • Page 29 Limited 7 Year Warranty © Travis Industries 1/11/2022 - 1354 4415 HO Owners...

  • Page 30: Index

    Index Index Accent Light Replacement ....... 19 Manual On-Off / Smart Thermostat / Standard Battery Replacement ........15 Thermostat ..........12 Before You Begin ..........6 Mode Controls (Flame, Blower, Light) ..13 Child-Proof Feature .......... 17 Normal Operating Odors ........17 Continuous/Intermittent Pilot Switch ....
