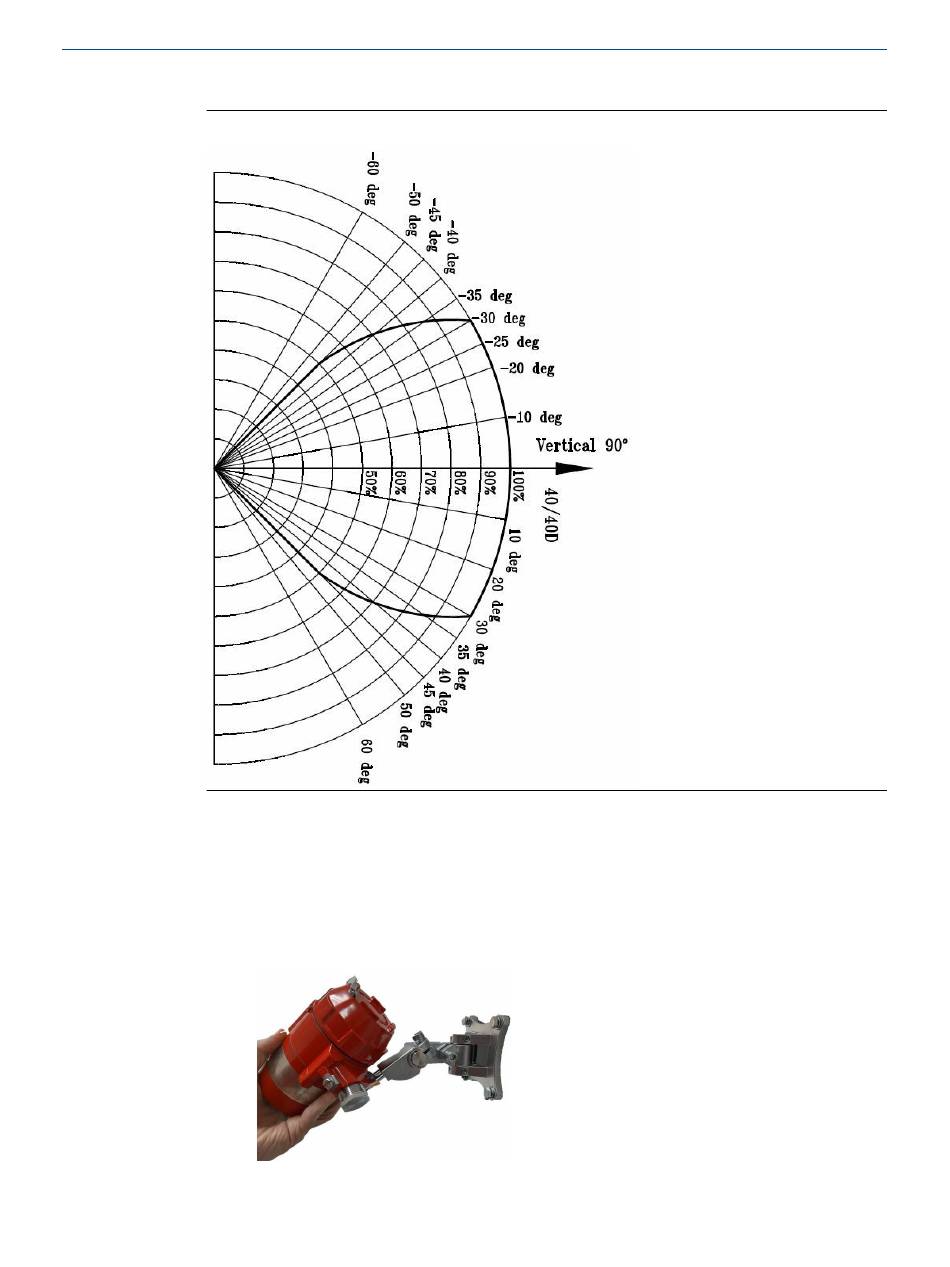

Figure 2-5: Vertical field of view for hydrogen
2.3
Attach detector to tilt mount
Procedure
1. Unpack the detector.
2. Insert location pins on the tilt mount into the openings on detector housing.
3. Thread the holding screw and tighten it.
Rosemount 975
Installation
February 2022
13
