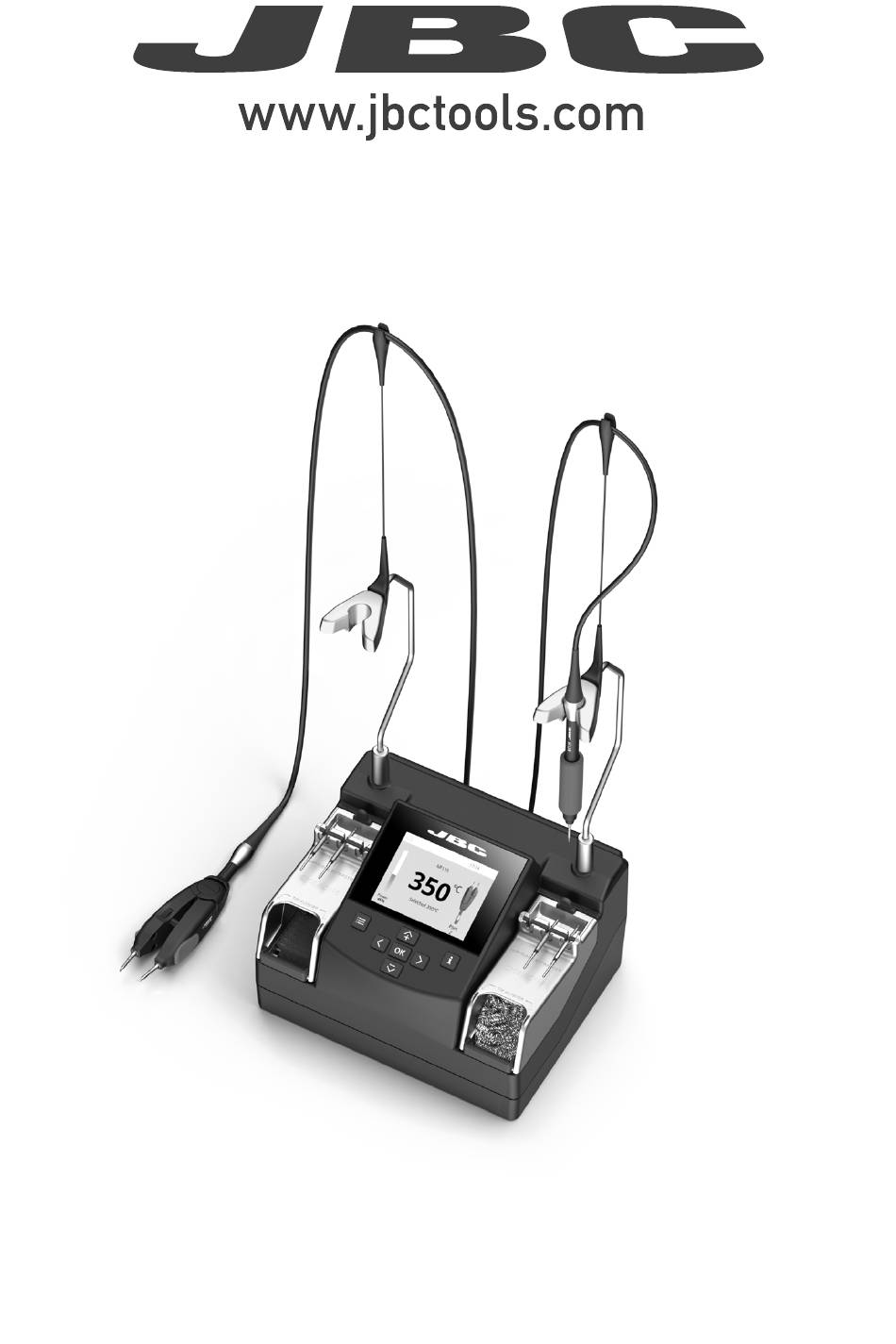

- Page 1 INSTRUCTION MANUAL Nano Control Unit...
-
Page 2: Packing List
This manual corresponds to the following references: - NAE-9C (100V) - NAE-1C (120V) - NAE-2C (230V) Packing List The following items are included: Nano Control Unit ........1 unit Cable Collector and Stand ....2 units Ref. CC2002 Brass Wool ..........1 unit Metal Brush .......... -
Page 3: Features And Connections
para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Cable collector Accessorie: Tool extension cord (1m)* 100 mm Ref. A1205 Stand: Intelligent Heat 80 mm Management 60 mm NT115 Nano Process Handle* Screen: 2.8 Color TFT 50 mm Cartridge Extractor 40 mm... - Page 4 Tool Stand Assembly Tool Stand Replacement Loosen the screw (1) and withdraw the tool Insert the new tool stand (3) and tighten the stand (2) . screw (4).
- Page 5 para manuales - color gris 200 mm DDE Work Screen Work Screen 130 mm 130 mm The DDE offers an intuitive user interface which provides quick access to station parameters. The work screen offers an intuitive user interface which provides quick access to station parameters.
-
Page 6: Advanced Functionalities
Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update System Notifications The following icons will be displayed on the screen’s status bar. -
Page 7: Operation
200 mm Operation 130 mm 130 mm JBC’s Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. 100 mm As a result, tip life increases by 5. - Page 8 The Pedal is frequently used to rework components with tweezers. AN115 JBCs adjustable nano tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS station.
- Page 9 For this operation JBC´s desoldering station DSS is needed. Manual Solder Paste Dispensing Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended. NT105 Selected 350ºC Power...
- Page 10 AN115 Ajustable Nano Tweezers Placing Do not press the pedal. Use the tool to position the component on the previously tinned pad. Note: The inactive tool prevents the component from heating up prematurely. AN115 Ajustable Nano Tweezers Soldering Once in position press and hold the pedal to activate the tool and perform the soldering.
-
Page 11: Changing Cartridges
para manuales - color gris 200 mm Changing Cartridges 130 mm 130 mm Save time and change cartridges safely without having to switch the station off. 1. Removing 2. Inserting 3. Aligning 100 mm 80 mm 60 mm Place the cartridge into the Push the cartridge into the Use the holes to rotate extractor slot (1) and pull the... -
Page 12: Maintenance
2. Press the new fuse into the fuse holder fuse. If necessary use a tool to lever it off. and replace it in the station. Fuse holder Fuse holder Fuse - Repairs should only be performed by a JBC authorized technical service. - Page 13 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.
- Page 14 Notes...
-
Page 15: Specifications
para manuales - color gris 200 mm 130 mm 130 mm Specifications Nano Control Unit 100 mm Ref. NAE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref. NAE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref. NAE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V - Output Peak Power: 14W per tool 80 mm... - Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
