Summary of Contents for Omega OCC604KZ

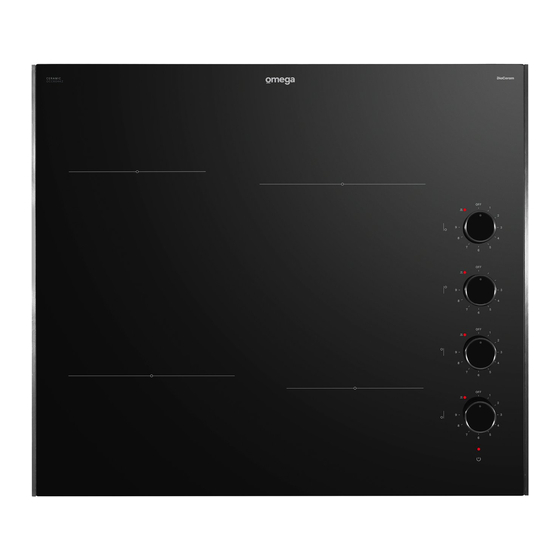

- Page 1 Designed to Enhance E S T. � 9 8� Installation + User Manual OCC604KZ / OCC604TZ / OCC704TZ / OCC905TZ Ceramic Cooktops 60, 70 & 90cm omegaappliances.com.au V1.5 0524...
-
Page 2: Table Of Contents
User Manual Ceramic Cooktops Contents Welcome Safety Information Installation Instructions �2 Technical Specifications Control Panel Operating Your Cooktop Cooking Guidelines Care & Maintenance Troubleshooting Purchase Details Warranty Information... -
Page 3: Welcome
It is important that you read through the following user manual thoroughly, in order to familiarise yourself with the installation and operation requirements of your appliance, and to ensure optimum performance. Again, thank you for choosing an Omega appliance and we look forward to being of service to you. Kind Regards,... -
Page 4: Safety Information
Before Using Your Appliance Read Carefully and Keep for Future Reference This manual explains the proper use of your new Omega Ceramic Cooktop. Please read this manual carefully before using Read this manual thoroughly before first use, even if you the product. - Page 5 User Manual Ceramic Cooktops Designed to Enhance Safety Information Health Hazard Electrical Connection WARNING: Follow these instructions carefully to avoid potential WARNING: Risk of fire and electrical shock! injury or death. It is important to use your cooktop safely. Follow these instructions carefully to avoid potential electric shock, fire This appliance complies with electromagnetic safety standards.
- Page 6 User Manual Ceramic Cooktops Safety Information Before Installation Appliance Use • To avoid a hazard, this appliance must be installed according • The appliance and its accessible parts become hot when to the instructions in this user manual for installation. in use.
- Page 7 User Manual Ceramic Cooktops Designed to Enhance Safety Information Care & Cleaning • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. Failure to follow this CAUTION: Risk of injury or damage to the cooktop.
-
Page 8: Installation Instructions
User Manual Ceramic Cooktops Safety Information Installation Instructions Disposal of the Appliance Important Safety Instructions • Disconnect the appliance from the mains supply. • Your appliance must be installed by an IMPORTANT: authorised technician or similarly qualified person. If you •... - Page 9 • Ensure that there is adequate flow of air from outside the Model Width (W) Depth (D) cabinetry to the base of the cooktop. • The isolating switch is easily accessible by the customer. OCC604KZ 560mm 490mm • WARNING: Do not use any kind of silicon sealant to seal the appliance against the benchtop.
- Page 10 User Manual Ceramic Cooktops Installation Instructions Ensuring Adequate Ventilation Applying the Fixing Brackets *NOTE: Please refer to your rangehood’s user manual for the The unit should be placed on a stable, smooth surface (such exact minimum clearances from the top of the cooktop surface as the packaging).
- Page 11 User Manual Ceramic Cooktops Designed to Enhance Installation Instructions Electrical Connection If your cooktop doesn't come with a 10 amp power plug, the power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. Please refer to the method of connection shown below relevant to your cooktop model. •...
-
Page 12: Technical Specifications
User Manual Ceramic Cooktops Technical Specifications Specifications Chart: OCC604KZ Model Number OCC604KZ Cooktop Finish Black DiaCeram® Ceramic Glass with Midnight Side Trim Controls Knob Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz... - Page 13 User Manual Ceramic Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCC604TZ Model Number OCC604TZ Cooktop Finish Black DiaCeram® Ceramic Glass with Midnight Side Trim Controls Touch Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 6000 W Cooking Zones...
- Page 14 User Manual Ceramic Cooktops Technical Specifications Specifications Chart: OCC704TZ Model Number OCC704TZ Cooktop Finish Black DiaCeram® Ceramic Glass with Midnight Side Trim Controls Touch Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 6000 W Cooking Zones...
- Page 15 User Manual Ceramic Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCC905TZ Model Number OCC905TZ Cooktop Finish Black DiaCeram® Ceramic Glass with Midnight Side Trim Controls Touch & Slide Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 9000 W...
-
Page 16: Control Panel
Control Panel A. Power Button D. Timer Selector Button G. DualZone Selector Button B. Adjustment Controls E. Residual Heat Indicators H. Keep Warm Button C. Child Lock Button F. Zone Selector / Indicator ↑ OCC604TZ & OCC704TZ ↑ OCC905TZ ↑ OCC604KZ... -
Page 17: Operating Your Cooktop
User Manual Ceramic Cooktops Designed to Enhance Operating Your Cooktop About Ceramic Cooktops Before using the Ceramic Cooktop • Read this user manual carefully, taking special note Ceramic cooktops are designed to cater to various culinary of the ‘Safety Information’ chapter in particular. needs, utilising resistance wire heating, microcomputer- controlled functions, and multiple power settings. - Page 18 Ceramic Cooktops Operating Your Cooktop Getting Started with Cooking For model OCC604KZ 1. Power On Activate the cooktop by pressing the Power button. Upon activation, a single beep will sound, and all indicators will briefly display "–" for 1 second before turning off.
- Page 19 Designed to Enhance Operating Your Cooktop When Finished Cooking For model OCC604KZ 1. Switching Off Individual Cooking Zones Adjust the power level by turning the Knob Adjustment Controls corresponding to your desired cooking area's Zone Indicator down to "OFF". The Residual Heat indicator will flash.
- Page 20 User Manual Ceramic Cooktops Operating Your Cooktop Getting Started with Cooking For models OCC604TZ & OCC704TZ 1. Power On Activate the cooktop by pressing the Power button. Upon activation, a single beep will sound, and all indicators will briefly display "–" for 1 second before turning off. This indicates that the cooktop has entered standby mode.
- Page 21 User Manual Ceramic Cooktops Designed to Enhance Operating Your Cooktop When Finished Cooking For models OCC604TZ & OCC704TZ 1. Switching Off Individual Cooking Zones Touch the Power Level Adjustment Controls "–" next to the desired cooking zone that you wish to switch off. Keep pressing the "–" button down to "0" on the control for the specific cooking zone.
- Page 22 User Manual Ceramic Cooktops Operating Your Cooktop Getting Started with Cooking For model OCC905TZ 1. Power On Activate the cooktop by pressing the Power button. Upon activation, a single beep will sound, and all indicators will briefly display "–" for 1 second before turning off. This indicates that the cooktop has entered standby mode.
- Page 23 User Manual Ceramic Cooktops Designed to Enhance Operating Your Cooktop When Finished Cooking For model OCC905TZ 1. Switching Off Individual Cooking Zones Touch the Zone Selector button next to the desired cooking zone that you wish to switch off. Subsequently, an indicator adjacent to the selected key will start flashing. Touch and slide the Power Level Adjustment Controls down to "0".
- Page 24 • Once the time is set, the countdown will start immediately, and the display will indicate the remaining time. Model OCC604KZ does not support the Timer function. • When the set time elapses, an alert will sound for 30 seconds, and the timer indicator will display “- -”.
- Page 25 For models OCC604TZ & OCC704TZ & OCC905TZ, the letter “H” will be displayed, indicating that the cooking zone is too hot to touch. For model OCC604KZ, the Residual Heat indicator will be displayed flashing, indicating that the cooking zone is too hot to touch.
- Page 26 User Manual Ceramic Cooktops Operating Your Cooktop Using the DualZone Using the Keep Warm function Only for model OCC905TZ Only for model OCC905TZ Activating the Keep Warm Function The DualZone feature on the ceramic cooktop comprises two circuits: the center zone and the extended zone. It offers the •...
-
Page 27: Cooking Guidelines
User Manual Ceramic Cooktops Designed to Enhance Cooking Guidelines Stir-Frying Steps WARNING: Frying Caution • Choose a flat-based wok or a large frying pan. Be cautious when frying, especially with Boost mode, as oil and fats heat up rapidly. At extremely high temperatures, there's a •... -
Page 28: Care & Maintenance
User Manual Ceramic Cooktops Care & Maintenance Care and Cleaning Guide Marks, Blemishes or Spots Solution Warning • When the power to the cooktop is Everyday soiling on glass (fingerprints, 1. Switch the power to the cooktop off. marks, stains left by food or non-sugary switched off, there will be no ‘hot 2. -
Page 29: Troubleshooting
User Manual Ceramic Cooktops Designed to Enhance Troubleshooting For Minor Faults Problem Possible Cause Solution The cooktop cannot be powered on. Ensure the cooker is connected to the power, and is switched on. No power is going to the cooktop. Check if there is a power outage in your home or area. - Page 30 User Manual Ceramic Cooktops Troubleshooting For Serious Faults • Some minor faults can be fixed by referring to the table in • If a service agent is asked to attend whilst the product NOTE: this section, however if an emergency or serious fault occurs, is under warranty and finds that the problem is not the result immediately power off the cooktop and disconnect the of an appliance fault, then you may be liable for the cost of...
-
Page 31: Purchase Details
User Manual Ceramic Cooktops Designed to Enhance Purchase Details Attach your receipt to this page For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. Store Details Store Name Address... -
Page 32: Warranty Information
User Manual Ceramic Cooktops Warranty Information WARRANTY TERMS AND CONDITIONS In this warranty CERAMIC COOKTOPS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the product ‘... - Page 33 User Manual Ceramic Cooktops Designed to Enhance Warranty Information You will bear the cost of transportation, travel and delivery of For Appliances and services provided by Residentia the Appliance to and from Residentia Group or its ASR. If you Group in Australia, the Appliances come with a guarantee reside outside of the service area, you will bear the cost of: by Residentia Group that cannot be excluded under the travel of an authorised representative;...
- Page 34 User Manual Ceramic Cooktops Notes...
- Page 35 User Manual Ceramic Cooktops Designed to Enhance Notes...
- Page 36 E S T . 1 9 8 1 Designed to Enhance...
