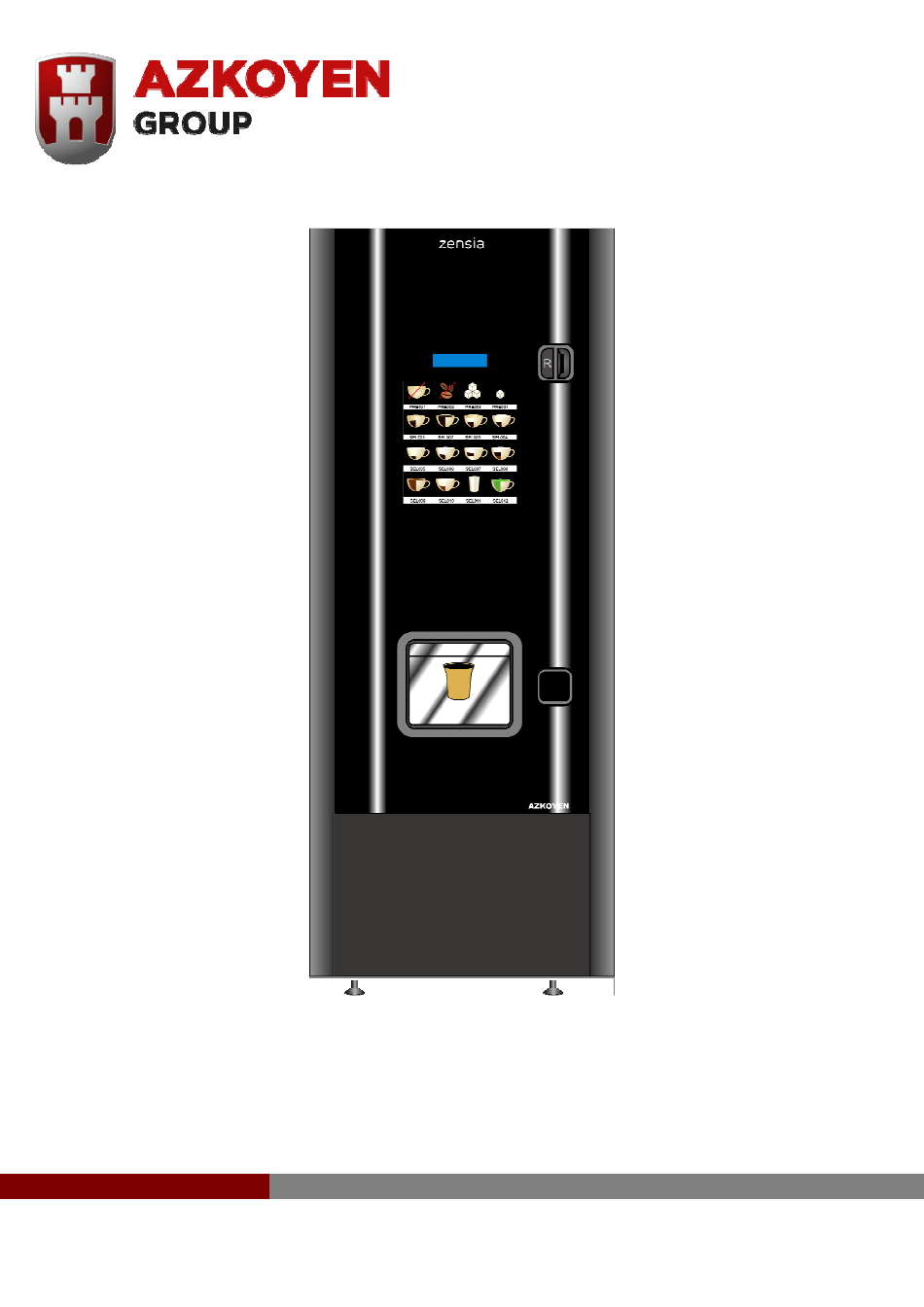

- Page 1 User’s Manual Hot Drink Vending Machines «Zensia» MANUAL REFERENCIA: 81039340; EDICIÓN 09/2017...
- Page 2 User Manual ZENSIA - 2 -...
-
Page 3: Table Of Contents
User Manual ZENSIA INDEX CAUTIONS ................................4 CHAPTER 1. GENERAL CHARACTERISTICS ....................... 7 1.1.- D NOVARA ....................... 7 ESCRIPTION OF THE LINE 1.2.- M ........................... 7 AIN CHARACTERISTICS 1.3.- D ......................9 ESCRIPTION OF THE MAIN COMPONENTS CHAPTER 2. INSTALLATION AND STARTING UP ..................... 13 2.1.- E... -
Page 4: Cautions
No part of this document may be photocopied, reproduced or translated without the prior written consent of AZKOYEN. AZKOYEN hereby declines all liability for damages caused to persons or things as a result of the following: Incorrect installation. - Page 5 This symbol on a label indicates if you need more information, you can be found in the User Manual. FOR ANY ADDITIONAL INFORMATION THAT IS NOT SPECIFIED HEREIN CONTACT YOUR DISTRIBUTOR OR ACCESS THE TECHNICAL MANUAL FROM AZKOYEN'S OFFICIAL WEBPAGE - 5 -...
- Page 6 User Manual ZENSIA - 6 -...
-
Page 7: Chapter 1. General Characteristics
CHAPTER 1. GENERAL CHARACTERISTICS 1.1.- Description of the NOVARA line The AZKOYEN ZENSIA range of machines are coffee and instant drinks dispensers which have been specially designed for use in medium-to-high consumption areas such as waiting rooms, offices, factories, etc... - Page 8 User Manual ZENSIA Characteristics of the water supply system Types of water service connections Water supply system, stand-alone on stand or with an incorporated tank. Min. pressure of the water supply system min. 0,098 Mpa.; Max. 0,98 Mpa Curb cock diameter ¾”...
-
Page 9: Description Of The Main Components
User Manual ZENSIA 1.3.- Description of the main components Fig. 1 – General view Coin system Cabinet Programmation module Coffee bean hopper (espresso model) Cup extractor/container module Soluble product hoppers Coin inlet slot Espresso coffee unit (espresso model) Coin return button... - Page 10 User Manual ZENSIA Fig. 2 - Coffee unit Hopper Hopper flow gate Dosage measure Upper piston Unit securing lever Lower unit Manual positioning andel Doser EL60 Grinder M03 Grinder Fig. 3 - Cup container 1 Cup container cover 2 Cup container...
- Page 11 User Manual ZENSIA Fig. 4 - Soluble services mechanism 1. Product chute 2. Wipper 3. stainless steel cover 4. Gum collector - 11 -...
- Page 12 User Manual ZENSIA - 12 -...
-
Page 13: Chapter 2. Installation And Starting Up
User Manual ZENSIA CHAPTER 2. INSTALLATION AND STARTING UP 2.1.- Electrical Installation The electrical installation voltage must be the voltage indicated on the characteristics plate and must not exceed the limits established in each country. Maximum power consumed: in accordance with the characteristics plate. -
Page 14: Changing The Product And Price Sign
User Manual ZENSIA 2.6.- Changing the product and price sign Remove the cups container and remove the plastic nut that fastens the top of the buttons. Pull back the cover to remove the selections menu. Press on the side of the label holder to release the row of labels you want to change. -
Page 15: Chapter 3. Filling The Machine
User Manual ZENSIA CHAPTER 3. FILLING THE MACHINE 3.1.- Initial filling with soluble product. Lift the cover of the hopper to be filled and fill with product. Be careful that the product filled corresponds to product for that hopper (each hopper has a label that indicates the product to be filled). -
Page 16: Filling With Cups
User Manual ZENSIA 3.3.- Filling with cups Remove the cover of the container and (T) load a column of cups through the top opening of the tube. For a proper extraction of the cups, these must comply with the following dimensions: Cup type Øe... -
Page 17: Fitting The Hygiene Parts
User Manual ZENSIA Load stir sticks. Do not remove the seal on the pack of stir sticks until they are in the channel. Make sure that the stir sticks are the right size. If loading for the first time, remove the transport seal from the extractor mechanism. -
Page 18: Initial Programming
User Manual ZENSIA 3.7.- Initial programming The machine will be sent with the programming predefined by AZKOYEN. In order to modify any of the values of the functions, enter the basic menu (see 5.6) and program the new functions. Recommendation: It is a good idea to identify each machine in order to record accounting, consumption, incidents, etc. -
Page 19: Chapter 4. Configuration And Programming
User Manual ZENSIA CHAPTER 4. CONFIGURATION AND PROGRAMMING 4.1.- What is programming? The machine is cable of performing a series of functions that you can configure. The programming is the actions that you establish in order to determine how the machine will operate in certain functions. -
Page 20: Direct Access To A Function
User Manual ZENSIA PRESSING THE KEY Key A Increases the digit being edited (if it is a sign, it changes) Key B Decreases the digit being edited Key C It returns to editing the previous (if it is the first number, it... - Page 21 User Manual ZENSIA 030 TEST MACHINE MACHINE TEST BY OPTION LISTS. Choose the elements to test. 110 MONEY/SELECT SALES BY SELECTION (CASH) Press the desired selection and the screen will display the amount of that selection. Press a new selection in order to continue reading the various amounts.
-
Page 22: Service Programming
User Manual ZENSIA 4.5.- Service programming. 4.5.1.- What is a service? A service is the act that the machine performs every time that a customer presses a selection. When programming a service, each step that the machine needs to take to complete the selected operation must be programmed. - Page 23 User Manual ZENSIA Change the values using the programming control keys. The functions of the keys are as follows: A or B - Go up or down the "steps" C or D - Increase or decrease the amounts (move the bar forward or backward in the figure) The water volumes are measured in seconds.
- Page 24 User Manual ZENSIA - 24 -...
-
Page 25: Chapter 5. Anomaly Control And Maintenance
User Manual ZENSIA CHAPTER 5. ANOMALY CONTROL AND MAINTENANCE 5.1.- Reset If the machine is out of service, enter and exit programming by pressing key C on the programming box twice. 5.2.- Possible incidents during a service. If the machine turns off or there is a power outage in the middle of a service, the value of the service will be discounted from the existing credit. -
Page 26: Adjustments And Regulation
User Manual ZENSIA In order to remove the brewing piston, 1. Remove the fastening pin. 2. Pull up on the piston. 3. In order to completely disassemble the piston, remove the fastening clip. Adjustments and regulation 5.4.2.- Adjusting the coffee dosage. The grinder is time-controlled. The default dosage is 6.5g. - Page 27 User Manual ZENSIA Adjusting the water temperature in the boiler. The machines are equipped with a single boiler, therefore the programmed temperature will be implemented in both the espresso services as well as in the services of other soluble products.
- Page 28 User Manual ZENSIA - 28 -...
-
Page 29: Chapter 6. Cleaning The Machine
User Manual ZENSIA CHAPTER 6. CLEANING THE MACHINE. PRECAUTIONS: IT IS ESSENTIAL TO AVOID WATER FREEZING INSIDE THE MACHINE. IF YOU ARE GOING TO CARRY OUT ANY MAINTENANCE WORK INVOLVING THE MACHINE BEING DISCONNECTED FOR A LONG PERIOD OF TIME, THE BOILER MUST BE EMPTIED. -
Page 30: Components That Require Regular Cleaning
User Manual ZENSIA 6.1.- Components that require regular cleaning Depending on the number of services that the machine provides, the machine components must be cleaned more or less regularly. The following chart lists the recommended cleaning process and schedule. • Check the product ramps. Clean with a dry cloth if necessary. -
Page 31: Cleaning Of The Sugar Chute (Espresso Machines)
User Manual ZENSIA 6.2.- Cleaning of the sugar chute (espresso machines) Fig. 15 6.3 - Clean the service compartment Remove the plastic nut that holds the tray. Release the SERVICES TRAY CABINET (1) and remove. Proceed in the same way to remove the GRILLE (2). -
Page 32: Cleaning The Tea Brewer (On Machines That Incorporate It)
User Manual ZENSIA To run the cleaning cycle: 030 TEST MACHINE GROUP CLEANING INSERT TABLET PLEASE WAIT For correct cleaning, you should remove the brewing piston and clean the upper filter with cleaning paper or a brush to eliminate any particles which may remain on the filter. -
Page 33: Refitting The Tea Brewer
User Manual ZENSIA 6.5.- Refitting the tea brewer 1. Refit brewer cylinder. 2. Refit the mixing chamber. 3. Refit brewer carriage onto machine. If it does not locate correctly, gently turn filter belt using the studded roller until it slides into place. -
Page 34: Detection Of Waste Level
User Manual ZENSIA 6.5.- Detection of waste level By means of a float in the waste bucket connected to microswitch, the machine detects the filling level of the bucket. The machine will alert you with a message on the information display when the waste bin is full and it will go out of service until the bin is emptied.
