Summary of Contents for Memphis SRX150.2V

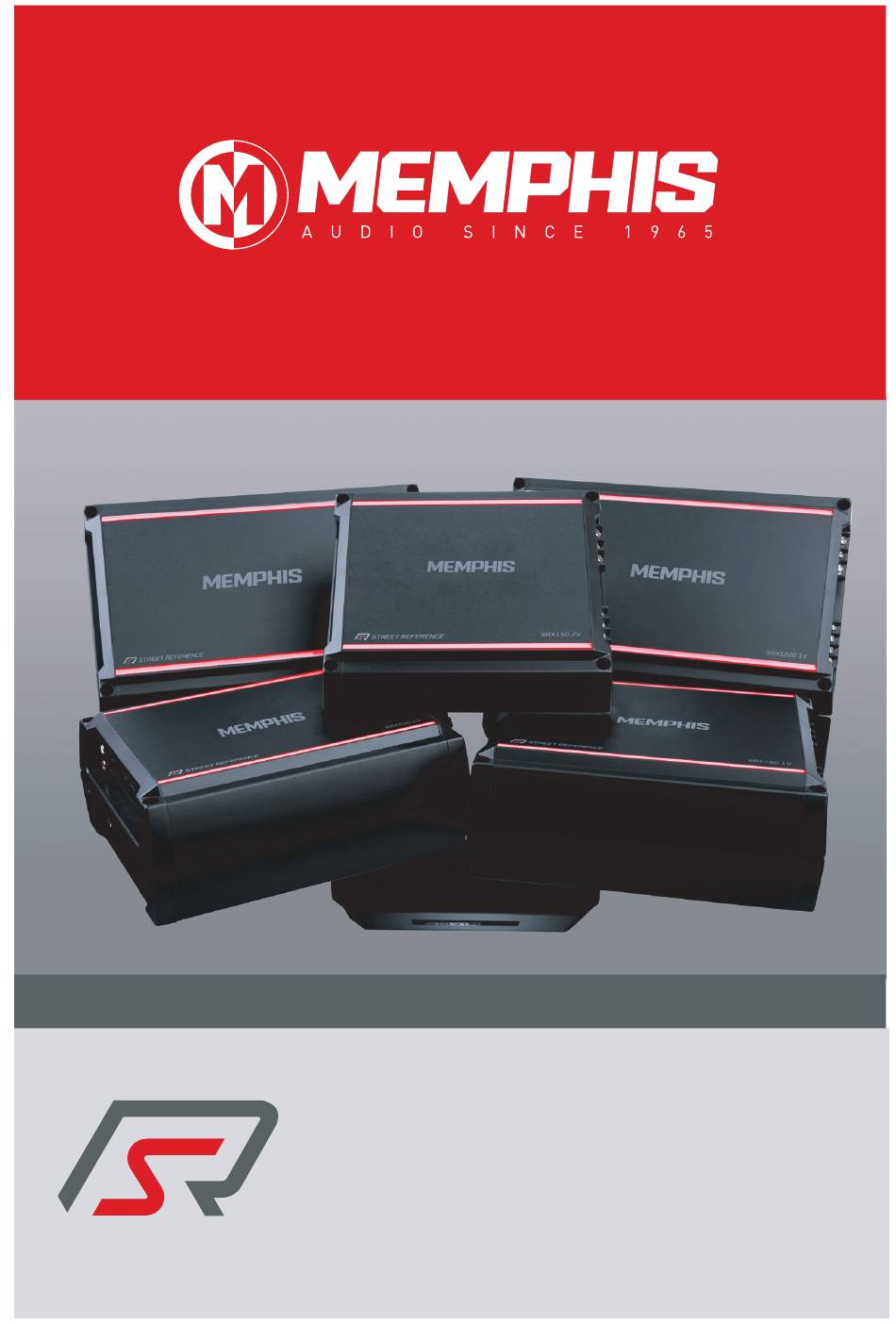

- Page 1 FULL RANGE AMPLIFIER INSTRUCTION MANUAL MODELS: SRX150.2V // SRX300.4V STREETREFERENCE...
- Page 2 STREET REFERENCE MULTI CHANNEL AMPLIFIERS Memphis Audio built a 50 year legacy in the audio industry engineering the highest quality products to produce the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we recommend taking the time to read and follow the instructions in this manual.
-
Page 3: Installation Information
Installation Information Memphis Audio recommends the installation of our products to be performed by an Authorized dealer. Attempting an installation project on your own or through an unauthorized source may result in damage to your products and may potentially void your warranty. -
Page 4: Power Supply Connections
18” of the battery. This fuse is vital to protecting the vehicle from damage in the case of a dead short. Model Amp Kit SRX150.2V SRX300.4V Ground Connection: Make ground connection directly to the chassis of the vehicle as close to the amp as possible. Make sure this connection is made with the same wire size as used for the 12 volt connection. -
Page 5: Features And Controls
Features & Controls Gain The gain control is NOT a volume control. The gain control adjusts the amount of signal required to drive the amplifier to full output. With the gain at full clockwise rotation, less signal voltage is required to drive the amp to full output. With the gain at full counter clockwise rotation, more signal voltage is required to drive the amp to full output. - Page 6 Speaker Connections Continued 4 Channel Model SRX300.4V...
- Page 7 Use these markings to match polarities to ensure the speakers are in phase. Failure to wire speakers or woofers in phase with one another will result in a loss of bass. All Street Reference amplifiers require a minimum 2 impedance in stereo or 4 in mono (bridged) mode. 2 Channel Model SRX150.2V...
-
Page 8: Specifications
Please consult with your local authorized dealer if you experience issues with your amplifier. You may also contact Memphis Audio customer service at 800.489.2300 or email tech support directly at: techsupport@memphiscaraudio.com. Do not attempt to return your amplifier directly to us without first calling for a return authorization number. -
Page 9: Warranty
If warranty service is required, a return authorization number is required to return the product to Memphis Audio. Warranty shipments to Memphis Audio are the responsibility of the purchaser. Pack the product carefully in the original carton if possible. Memphis Audio will not be responsible for damages incurred in shipment or due to improper packing materials used by the purchaser.
