Summary of Contents for Memphis MXA480.4M
- Page 1 850.5M/480.4M/600.1M M A R I N E G R A D E A M P L I F I E R S...
-
Page 2: Specifications
MXA480.4M MXA600.1M Memphis Audio built a 50 year legacy in the audio industry by engineering the highest quality products to produce the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we recommend taking the time to read and follow the instructions in this manual. As always, we recommend all the installations and services to be performed by an authorized Memphis Audio dealer. -
Page 3: Warranty
Memphis Audio will not be responsible for damages incurred in shipment or due to improper packaging materials used by the purchaser. If determined to be within warranty your product will be repaired or replaced at the discretion of Memphis Audio. Service/Returns Please consult with your local authorized dealer if you experience issues with your unit. -
Page 4: Installation Information
Installation Information Memphis Audio recommends the installation of our products to be performed by an Authorized dealer. Attempting an installation project on your own or through an unauthorized source may result in damage to your products and may potentially void your warranty. -
Page 5: Power Supply Connections

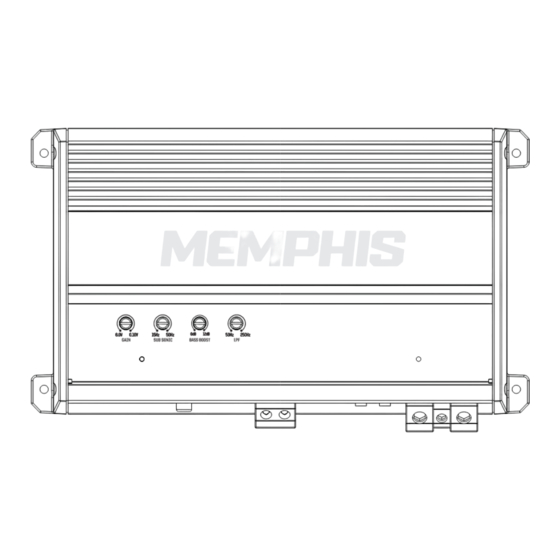

Model Amp Kit Fuse Value MXA850.5M 4GKIT MXA480.4M 8GKIT MXA600.1M 4GKIT Ground Connection: For marine applications connect the ground to the negative battery terminal. For non-marine applications ground connection directly to the chassis of the vehicle as close to the amp as possible. Make sure this connection is made with the same wire size as used for the 12 volt connection. - Page 6 Control View MXA850.5M MXA480.4M MXA600.1M...
-
Page 7: Setup And Adjustment
Most subwoofers should be set between 80Hz and 100Hz depending on how low the mid-bass or midrange drivers are capable of playing. Full Range (MXA850.5M & MXA480.4M) Sliding the selector switch to this position turns off all crossovers and allows a full range signal to pass. The flat position should be selected when using outboard electronic crossovers. -
Page 8: Signal Input Connections
Signal Input Connections MXA850.5M MXA1MC GAUGE STYLE MEDIA CENTER MODE BAND Remote Level Control MXA480.4M MXA1MC GAUGE STYLE MEDIA CENTER MODE BAND MXA600.1M MXA1MC GAUGE STYLE MEDIA CENTER MODE BAND Remote Level Control... - Page 9 Always check your speaker load with a multi-meter before hooking them up to the amplifier. The MXA480.4M amplifier is stable to 2 ohms stereo or 4 ohms bridged mono. The MXA850.5M amplifiers are stable to 2 ohms stereo or 4 ohms bridged mono (front & rear channels) and stable CAUTION to 1 ohms (sub channel).
- Page 10 MXA480.4M SPEAKER SPEAKER SPEAKER SPEAKER SPEAKER SPEAKER MXA600.1M Remote Level Control SUBWOOFER...
- Page 11 NOTES:...
