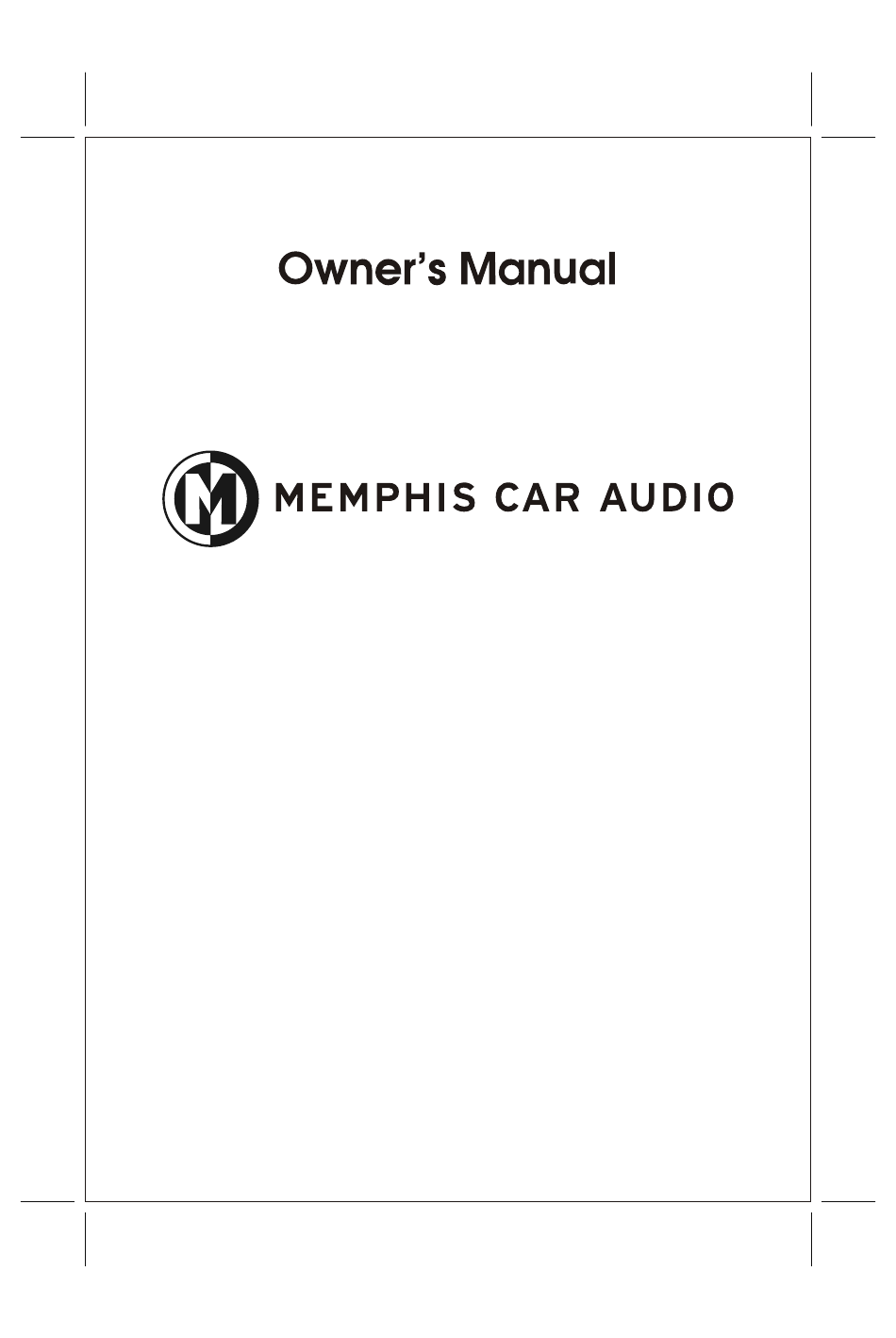

- Page 1 POWER POWER REFERENCE REFERENCE REFERENCE POWER AMPLIFIER AMPLIFIER AMPLIFIER Models : 16-PR1.500 16-PR1.1000 by MEMPHIS...
- Page 3 So whether you are a daily driving music lover, or a serious car audio competitor, Memphis Car Audio has the product for you! To take full advantage of the Memphis Car Audio gear you have just purchased, please read and follow the instructions in this manual.
- Page 4 FEATURES • 1 ohm MONO stable • Low Level Inputs & Outputs • Variable Bass Boost (0-18dB) centered at 45Hz • 24dB Subsonic Filter • Fully Variable Low Pass Filter • Protection Circuitry Against Overload, Short Circuit, Thermal, and Reverse Polarity Platinum finish connections Ensures solid electrical connections that resist corrosion.
-
Page 5: Installation
INSTALLATION Professional installation by an authorized Memphis Car Audio dealer is highly recommended! Otherwise, the performance of your new gear may not be satisfactory. In the event that you decide to do your own installation, please read and follow this manual very carefully. Failure to do so may compromise the integrity of this product, your automobile, and possibly void the product warranty. - Page 6 PR 1.500 POWER REMOTE +12V SPEAKER FUSE REMOTE (GAIN) BASS PROT SONIC PASS GAIN INPUT 20Hz 50Hz 50Hz 350Hz 0dB 18dB POWER PR 1.1000 REMOTE +12V SPEAKER FUSE REMOTE BASS (GAIN) PROT SONIC PASS GAIN INPUT 20Hz 50Hz 50Hz 350Hz 0dB 18dB...
-
Page 7: Power Supply Connections
POWER SUPPLY CONNECTIONS WARNING! INSTALL THE FUSE AT THE BATTERY LAST! Use conventional stranded copper wire for all connections. Finish the ends of the wires at the amp and vehicle connection with the proper size terminals. Poorly made connections, and /or inadequate wire size will generate excessive heat and may lead to equipment failure. The 12 VOLT + connection should be made directly at the positive battery post, using the wire size recommended below, and fused within "18"of the battery. -
Page 8: Rca Connections
RCA CONNECTIONS SINGLE AMP INPUT CONNECTION / SPEAKER CONNECTIONS POWER PR 1.500 REMOTE +12V SPEAKER FUSE REMOTE (GAIN) BASS PROT SONIC PASS GAIN INPUT 20Hz 50Hz 50Hz 350Hz 0dB 18dB WIRING SUBWOOFERS When using a single amplifier to power one subwoofer, the positive and negative terminal of the subwoofer's voice coil is connected to the positive and negative terminal of the amplifier. -
Page 9: Setup And Adjustment
SET UP AND ADJUSTMENT Gain The gain control is NOT a volume control. The gain control adjusts the amount of signal required to drive the amplifier to full output. With the gain at maximum (full clockwise rotation), less signal voltage is required to drive the amp to full output. With the gain at minimum (full counter-clockwise rotation), more signal voltage is required to drive the amp to full output. -
Page 10: Features And Controls
FEATURES AND CONTROLS TROUBLESHOOTING Before removing your amplifier, refer to the list below and follow suggested procedures. Speakers and their wires should be tested first. No Output: a. Confirm that all terminal strip connections are firmly connected. b. Check in-line and built-in fuses. Both "12V"and "RMT" terminals must have +12 Volts to chassis ground. -
Page 11: Specifications
FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. Should your amplifier require service Please consult with the dealer from which it was purchased, or contact Memphis Car Audio Customer Service: 800-467-2400 or techsupport @memphiscaraudio.com. Do not attempt to return your amplifier directly to us without first calling for a Return Authorization Number.
