Maintenance

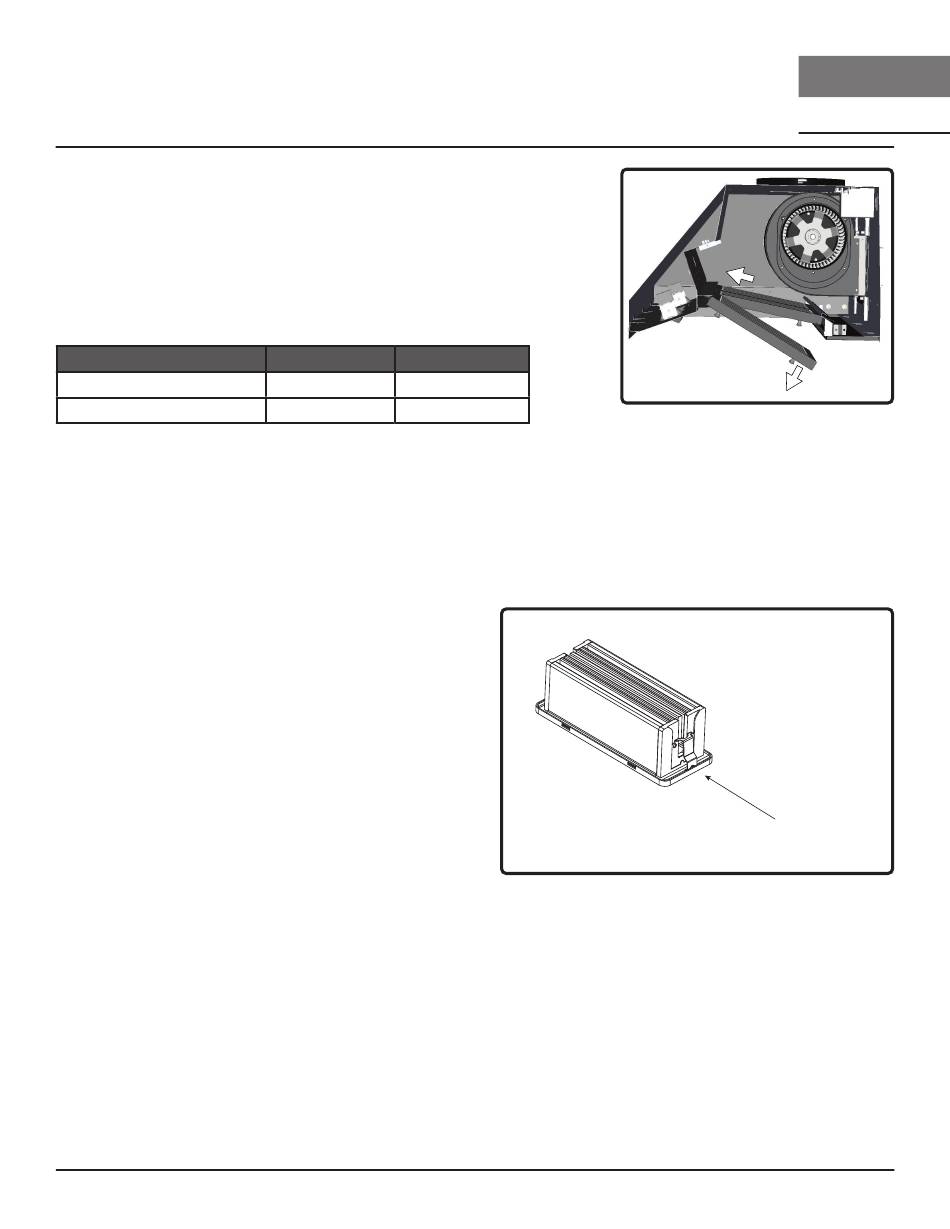

Removing Pro Baffle Filters, FIG. D
1. Pulling filter towards the front of insert using handles.
2. Pivot rear of filter downward.
3. Remove filter by pulling away from hood.
Replacing Pro Baffle Filters
Hood Model
AK9836CS/ AK9840CS
AK9846CS/ AK9858CS

LumiLight LED

In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts.
See the list of parts and accessories page for part numbers and contact information.
LED Removal, FIG. E
1. Remove grease filters.
2. (If applicable) remove both side spacer panels
for each spacer panel.
3. Remove screws on light panel.
4. Disconnect LED light quick connector.
5. Push in the two side clips on the ends of the
LED light.
6. Push LED light through the light panel opening.
18
Part Number Qty. to Order
50210031
50210031
2
3
Spruce Use, Care, and Installation Guide
S P R U C E
I N S E R T
1
2
FIG. D
Push the clip
FIG. E
P R O
