Preparation & Installation
Spruce Use, Care, and Installation Guide
1
Bottom Panel Screws
2
Locking Tabs
Installation Instructions

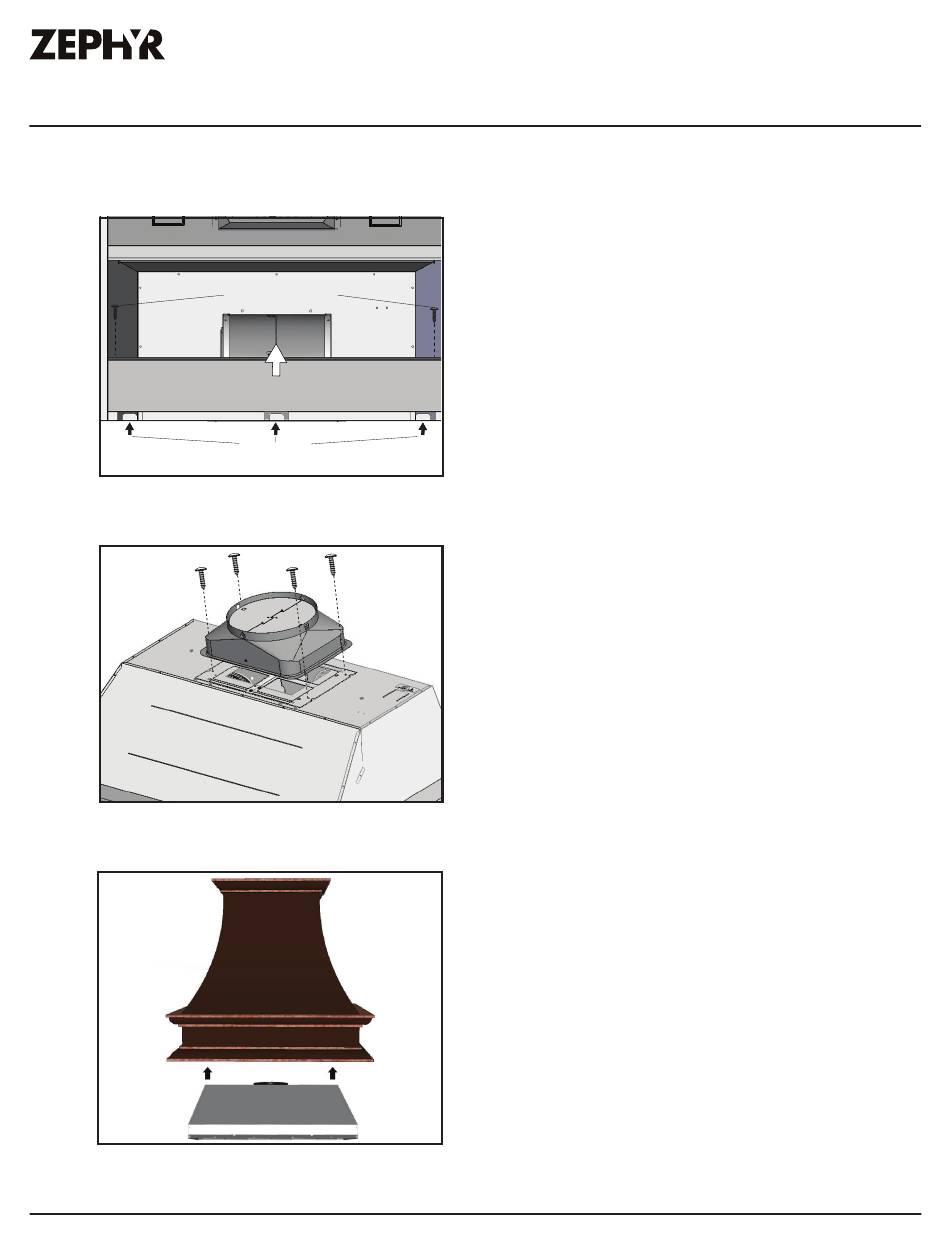

4. Remove bottom panel by: 1)
Removing (2) screws from left
and right sides of bottom panel.
2) Pulling bottom panel toward
front of insert to release from
locking tabs.
5. Secure 10" round ducting collar
to top of insert by (4) M4 x 6mm
screws.
6. Insert hood preparation is
complete. Refer to page 13, step
4 to complete installation.
15
