This addendum accompanies your EFX
occurred to the hardware kit and the Assembly Instructions.
HARDWARE KIT
The following hardware kit replaces the one found in the Owner's Manual .
(A) four stainless steel socket hex screws—upper column assembly
(B) fourteen washers—upper column assembly
(C) four nuts—upper column assembly
(D) six black socket hex screws—handlebars
(E) two 2-inch hex screws—link arm assembly
(F) six washers—link arm assembly
(G) two steel bushings—link arm assembly
(H) two low profile locknuts—link arm assembly
(J) four plastic caps—link arm assembly
(K) four buttonhead hex screws—covers for upright assembly
(L) ⁵⁄₁₆ - inch hex key—screws on bracket covers
(M) ¹⁄₄ - inch hex key— upper column assembly

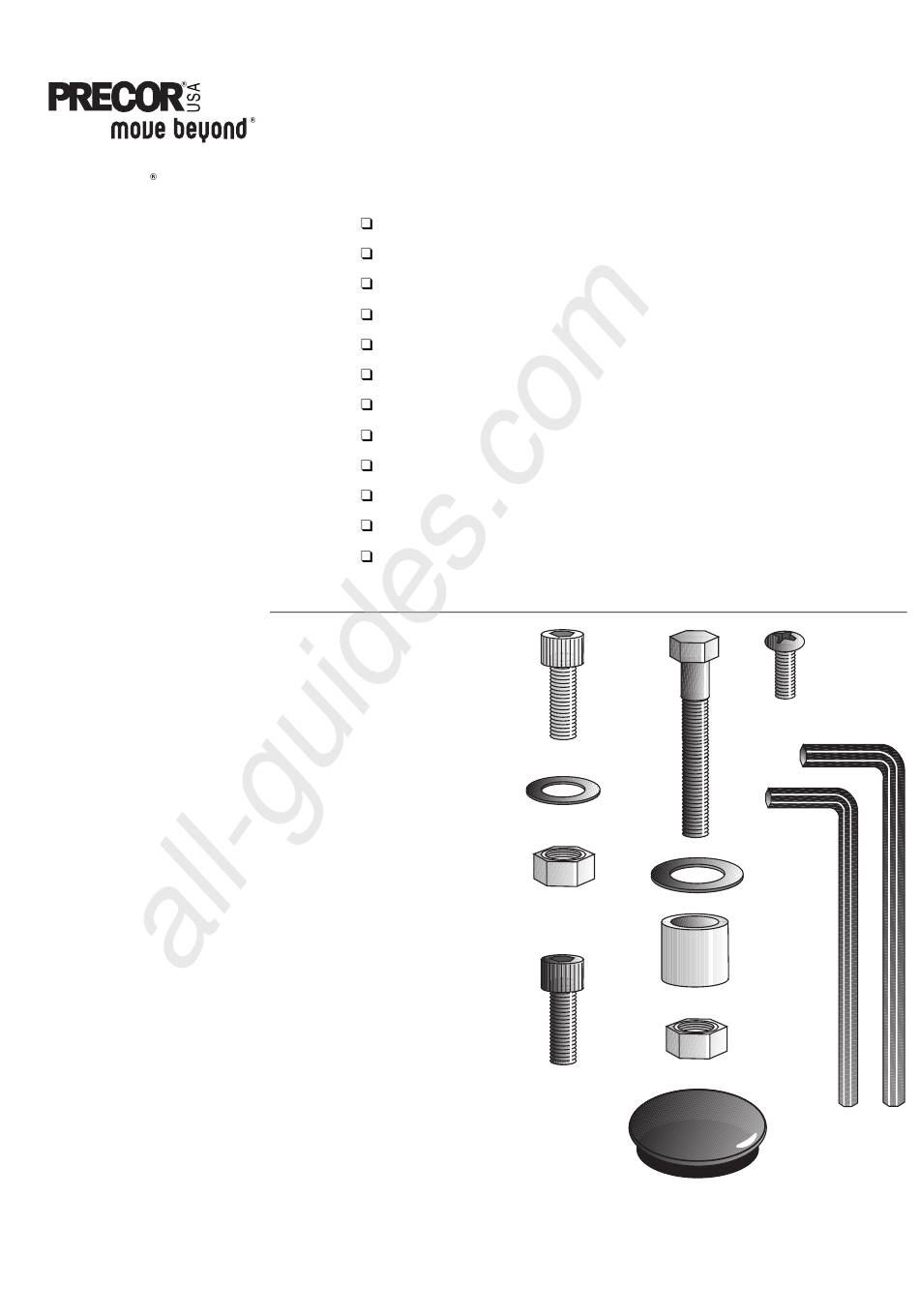

Diagram 1
EFX
®
556i Hardware kit
(not shown to scale).
If any items are missing, refer to Obtaining Service in your Owner's Manual .
®
556i Owner's Manual . Changes have
E
A
B
F
C
G
D
H
J
K
M
L
P/N 47934-101
June 17, 2004
