REB-1315LP Operational Manual
Recommend paste mask pad

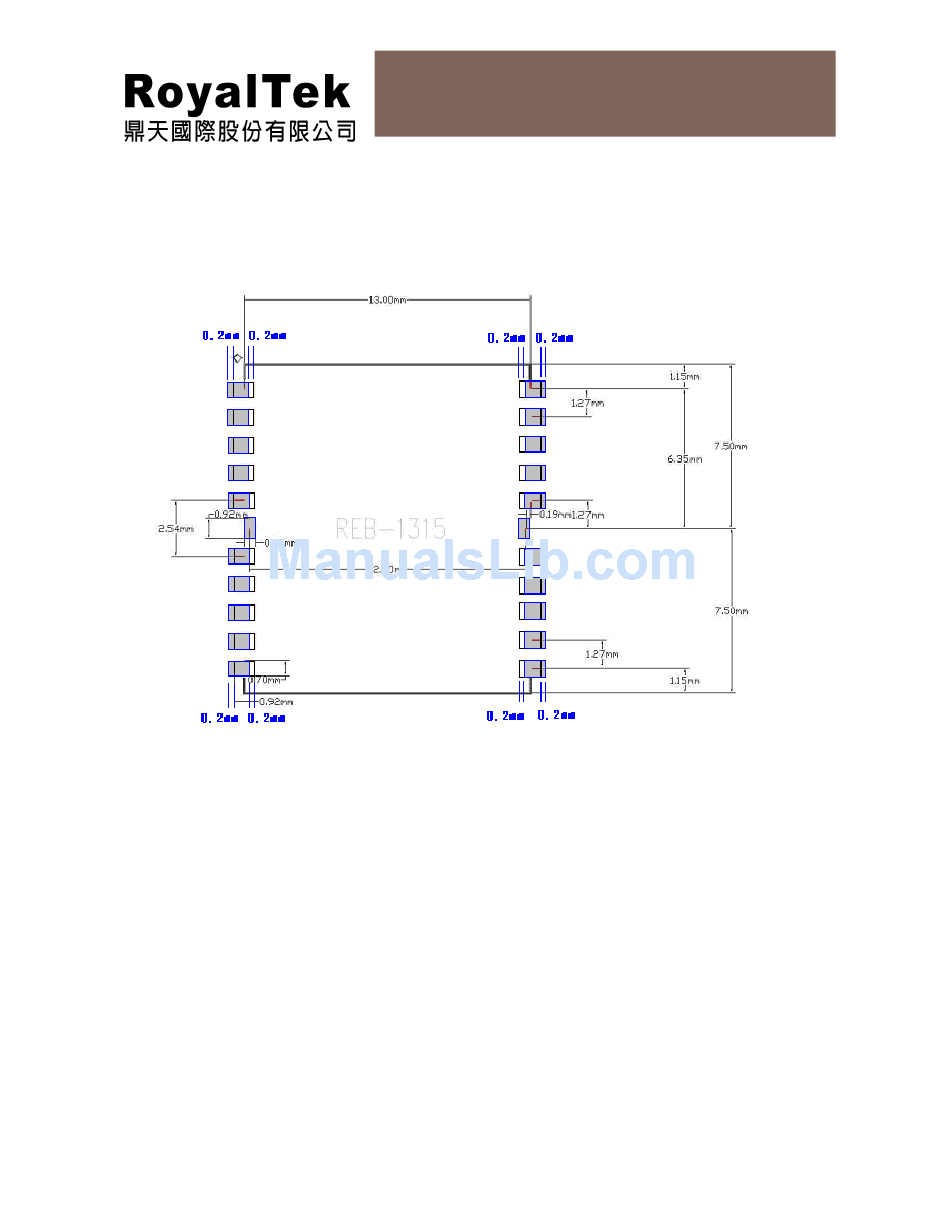

Recommend paste mask pad is shift outside the layout pad 0.2mm(See under figure)
Black Block is layout PAD、Blue Block(Gray region is paste mask pad recommend)
TOP View
RoyalTek Confidential
12
