REB-1315S5 Operational Manual
This document contains information highly confidential to RoyalTek Company LTD
(RoyalTek). It is provided for the sole purpose of the business discussions between
customer and RoyalTek and is covered under the terms of the applicable
Non-Disclosure Agreements. Disclosure of this information to other parties is
prohibited without the written consent of RoyalTek.
Approved by
REB-1315S5 Operational Manual
Version 0.3
2013/09/16
Prepared by RoyalTek Company LTD.
4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,
Tao Yuan 333, Taiwan
TEL: 886-3-3960001
FAX: 886-3-3960065
http://www.royaltek.com/contact
Checked by
Prepared by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REB-1315S5 and is the answer not in the manual?

Questions and answers

Related Manuals for RoyalTek REB-1315S5

Summary of Contents for RoyalTek REB-1315S5

  • Page 1 2013/09/16 This document contains information highly confidential to RoyalTek Company LTD (RoyalTek). It is provided for the sole purpose of the business discussions between customer and RoyalTek and is covered under the terms of the applicable Non-Disclosure Agreements. Disclosure of this information to other parties is prohibited without the written consent of RoyalTek.

  • Page 2: Table Of Contents

    REB-1315S5 Operational Manual Content 1. Introduction ....................2 2. Product Pictures ................... 3 3. REB-1315S5 Block Diagram ................ 3 4. REB-1315S5 Technical Specification ............4 5. Reference schematic: ................... 5 6. Recommend layout PAD & Moisture Sensitivity: .......... 6 7. Mechanical diagram ..................7 8.

  • Page 3: Introduction

    5e-based chip, multi-GNSS platform and able to track GPS and Glonass constellation at the same time. With RoyalTek proprietary navigation technology that provides you stable and accurate navigation data. The suitable form factor and miniature design is the best choice to be embedded in a device such as portable navigation device, personal locator, speed camera detector and vehicle locator.

  • Page 4: Product Pictures

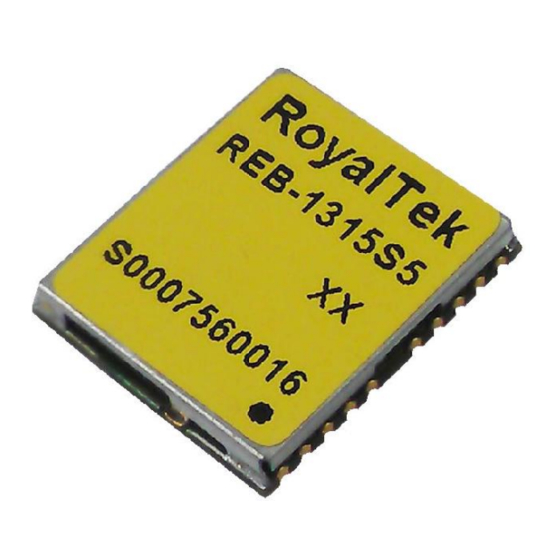

    REB-1315S5 Operational Manual 2. Product Pictures 3. REB-1315S5 Block Diagram System block diagram description: RoyalTek Confidential...

  • Page 5: Reb-1315S5 Technical Specification

    REB-1315S5 Operational Manual 4. REB-1315S5 Technical Specification Impedance：50 Function Specification GPS receiver CSR SiRFstarV CSRG0530 Chipset version Frequency Tracking L1,GPS CA code and GLONASS FDM Channels Code C.A. Code. Channels 52 channels Sensitivity Autonomous Acquisition -146dBm Tracking Sensitivity -165dBm Chipset Cold start(open sky) 35 sec...

  • Page 6: Reference Schematic

    REB-1315S5 Operational Manual 5. Reference schematic: Active antenna VCC _3V3 0 ohm RF JACK 50 OHM TRACE RF_IN 1PPS 1PPS 1PPS VCC _RF 100nH TXA-3V3 VIN_3V3 RXA-3V3 0.1uF VCC_3V3 VIN_3V3 VIN_3V3 VCC_BATT VRTC_3V3 0.1uF REB-1315S5 VCC_3V3 VCC_BATT RB705D BAT1 3.3V...

  • Page 7: Recommend Layout Pad & Moisture Sensitivity

    REB-1315S5 Operational Manual 6. Recommend layout PAD & Moisture Sensitivity: 6.1 Recommend layout PAD Moisture Sensitivity The GPS module must be placed and reflowed within 48 hours of first opening the hermetic bag, at factory conditions are less than 30℃ and less than 60% RH.

  • Page 8: Mechanical Diagram

    REB-1315S5 Operational Manual 7. Mechanical diagram RoyalTek Confidential...

  • Page 9: Interface Pin Definition

    REB-1315S5 Operational Manual 8. Interface pin definition Pin definition: ELECTRICAL Type Description number function CHARACTERISTICS NO CONNECTION NO CONNECTION 1PPS TIMEMARK 200mS ACTIVE HIGH 1PPS PULSE VOL <0.4V, VOH >2.2V UART SERIAL DATA VOL <0.4V, VOH >2.2V OUTPUT UART SERIAL DATA VIL <0.45V, 1.26V<VIH <3.6V...
  • Page 10 The power supply must add bypass capacitor (10uF and 1uF). It can reduce the Noise from power supply and increase power stability. If shutdown the REB-1315S5 module, please remove the VCC_IN Pin voltage into Hibernate mode.(It’s will keep the Warm start and Hot start function work well) GND provides the reference ground.
  • Page 11 REB-1315S5 Operational Manual RF_IN Connecting to the antenna has to be routed on the PCB. The transmission line must to be control impedance from RF_IN pin to the antenna or antenna connector of your choice. (Impedance 50 ) Can be used for active antennas or passive antenna.

  • Page 12: Software Interface

    REB-1315S5 Operational Manual 9. Software Interface NMEA Protoco NMEA Output Messages: the Engine board outputs the following messages as shown in Table 1: Table 1 NMEA-0183 Output Messages NMEA Record Description Global positioning system fixed data GNSS DOP and active satellites...
  • Page 13 REB-1315S5 Operational Manual Checksum ＜CR＞＜LF＞ End of message termination Position Fix Indicators Table 3 Value Description Fix not available or invalid GPS SPS Mode, fix valid Differential GPS, SPS Mode, fix valid Not Supported Dead Reckoning Mode, fix valid GSA-GNSS DOP and Active Satellites Table 4 contains the values of the following example: $GPGSA, A, 3, 07, 02, 26, 27, 09, 04, 15, , , , , , 1.8,1.0,1.5*33...
  • Page 14 REB-1315S5 Operational Manual Automatic-allowed to automatically switch 2D/3D Table 6 Mode 2 Value Description Fix not available GSV-GNSS Satellites in View Table 7 contains the values of the following example: $GPGSV, 2, 1, 07, 07, 79, 048, 42, 02, 51, 062, 43, 26, 36, 256, 42, 27, 27, 138, 42*71...
  • Page 15 REB-1315S5 Operational Manual RMC-Recommended Minimum Specific GNSS Data Table 8 contains the values of the following example: $GPRMC, 161229.487, A, 3723.2475, N, 12158.3416, W, 0.13, 309.62, 120598, ,*10 Table 8 RMC Data Format Name Example Units Description Message ID $GPRMC...
  • Page 16 REB-1315S5 Operational Manual Table 9 VTG Data Format Name Example Units Description Message ID $GPVTG VTG protocol header Course over rgound 79.65 degrees Measured heading Reference True Course over ground degrees Measured heading Reference Magnetic Speed over ground 2.69 Knots...

  • Page 17: Package Specification And Order Information

    Web Site Customer Service: http://www.royaltek.com/contact Revision History Title REB-1315S5 GPS Module Doc Type Operational Manual Revision Date Change notice Number 20130830 Draft spec 0.25 20130904 Updated the ME drawing 20130916 Updated “recommend layout pad” Copyright © 2013, RoyalTek Company Ltd. RoyalTek Confidential...
