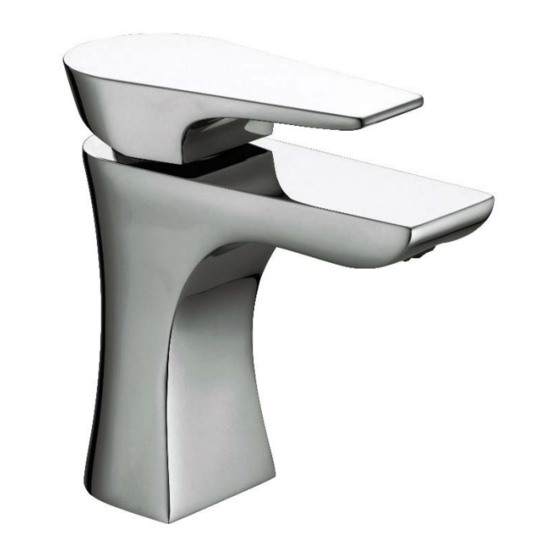

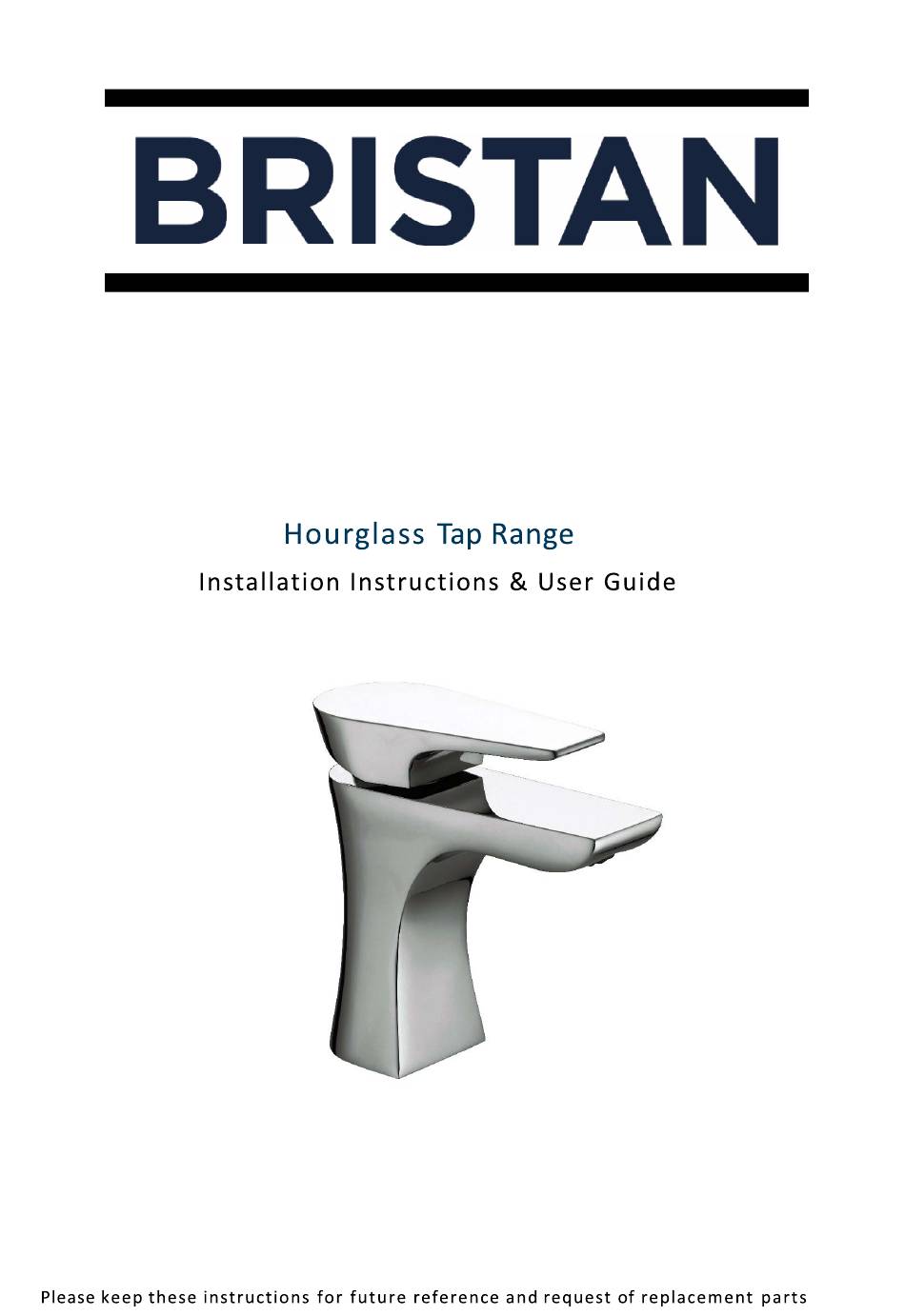

Contents Thank you for choosing Bristan, the UK's leading taps and showers expert. We have designed this product with your enjoyment in mind . To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of... -
Page 4: Dimensions
Dimensions ½" Basin Taps ¾" Bath Taps Basin Mixer... - Page 5 Dimensions Cont Bath Filler Bath Shower Mixer...
-
Page 6: Installation Requirements
Installation Requirements IMPORTANT - PLEASE READ This/these f itting/fittings needs/need to be IRN R030 - HOU BSM C/BLK - Schedule 2-15 [11Multiple inlet fittings installed in domestic installed in accordance with the following premises or in other premises to protect against Installation Requirements and Notes [IRNI to a backflow risk up to a Fluid Category 3, ensure they m eet the requirements of the... -
Page 7: Installation
Installation ½" Basin & ¾" Bath Taps 1. Identify all components are present prior to starting installation. [10] 2. Position the O ring in the groove on the underside of the tap body and install the taps to the basin/bath. [11] [12]. -
Page 8: Basin Mixer
Installation Continued Basin Mixer 1. Identify all components are present prior to starting installation using the diagram below. 2. Fit the mixer body (7) to the basin ensuring the O-Ring (9) is fitted between the basin and mixer body (7) 3. -
Page 9: Bath Filler
Installation Continued Bath Filler 1. Identify all components are present prior to starting installation 2. Position O-Rings (10) in the groove on the underside of the mixer body (8) 3. Using the washers (11) and the backnuts (12), secure the mixer body (8) to the bath by tightening the backnuts (12) onto the pre-fitted threaded tails. -
Page 10: Bath Shower Mixer
Installation Continued Bath Shower Mixer Identify all components are present prior to starting installation Position O-Rings (11) in the groove on the underside of the mixer body (9) and install to the bath Using the washers (12) and the backnuts (13), secure the mixer body (9) to the bath by tightening the backnuts (13) onto the pre-fitted threaded tails. - Page 11 Installation Continued Bath Shower Mixer HOU BSM C...
- Page 12 Installation Continued Bath Shower Mixer HOU BSM BLK...
-
Page 13: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and See map of Hard Water Regions in the UK on should be treated with care to preserve page 16 to see the water type in your area. the visible surfaces. All finishes will wear if not cleaned correctly. -
Page 14: Map Of Hard Water Regions In The Uk
5. If necessary, replace the valve Please visit www.Bristan.com/sparesfinder in order to find spare parts for this product. 6. Replace the valve into the tap body and tighten fully using a suitable spanner 7. - Page 15 4. Carefully clean the cartridge, seals and seating 5. If necessary, replace the cartridge Please visit www.Bristan.com/sparesfinder in order to find spare parts for this product 6. Replace the cartridge into the tap body and tighten retaining nut fully 7. Replace all remaining components and turn on water supply 8.
-
Page 17: Troubleshooting
Troubleshooting Symptom Cause Remedy Open stop or service valve. No flow or poor flow Partially closed stop or service rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 19: Notes
NOTES Please use this space to add any notes which you or your installer may have regarding the plumbing system/installation of this product... - Page 20 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
