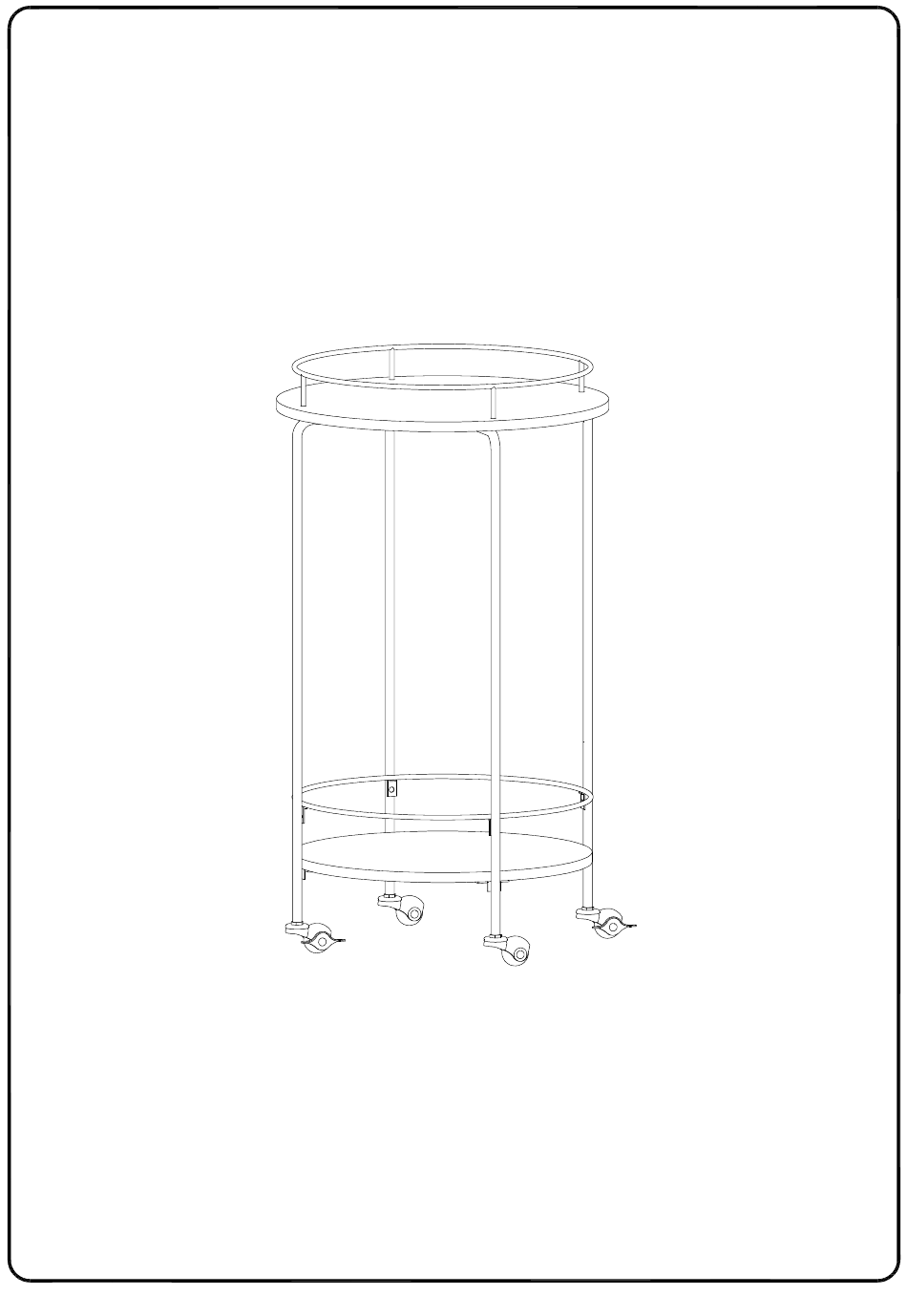

- Page 1 Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. All rights reserved.
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. Two people are recommended for ease in the assembly of this product. The main type of hardware used to assemble this product are: bolts and screws. Power tools should not be used to assemble this product . -
Page 3: Parts List
Parts List All rights reserved. -
Page 4: Hardware List
Hardware List Bolt M6x12mm Wrench Bolt M6x25mm Bolt M4x10mm Hex Key Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. All rights reserved. - Page 5 Step 1 Attach part (2) to part (1) using bolt (C) with hex key (E) as per diagram. All rights reserved.
- Page 6 Step 2 Attach part (3) to part (1, 2) using bolt (C, A) with hex key (E) as per diagram All rights reserved.
- Page 7 Step 3 Attach part (5) to part (2, 3) using bolt (A) with hex key (E) as per diagram. All rights reserved.
- Page 8 Step 4 Attach part (6, 7) to part (2, 3) with wrench (B) as per diagram All rights reserved.
- Page 9 Step 5 Attach part (4) to part (2, 3) using screw (D) with Philips head screwdriver as per diagram. All rights reserved.
-
Page 10: Final Assembly
Step 6 Final Assembly All rights reserved. P.10...
