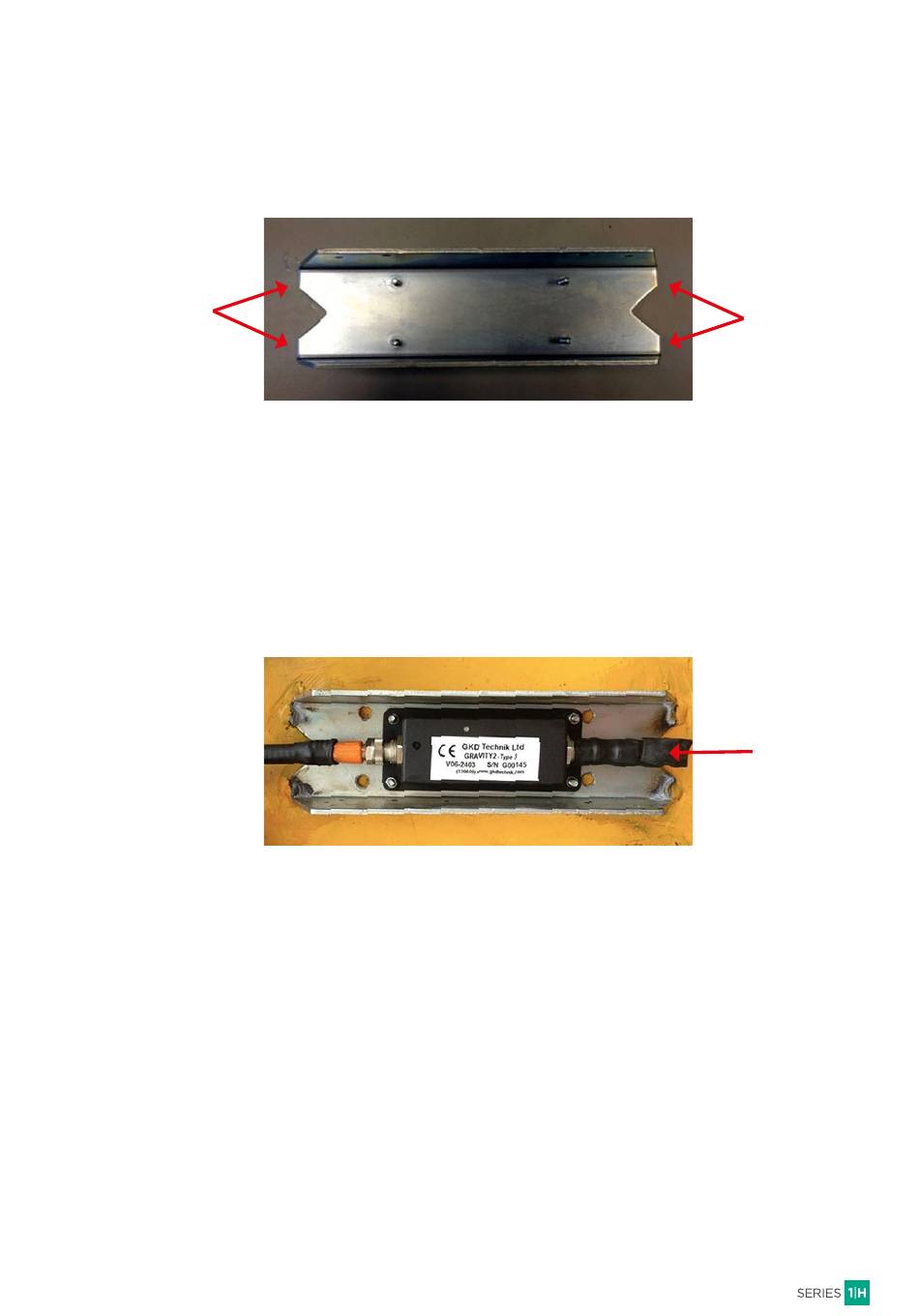

Once a suitable position has been identified, remove a small area of paint from the install
site at each end of the angle sensor mounting shoe, and weld the mounting shoe to the arm
using the V shaped cutout at each end of the mounting shoe.
Weld
Treat the area of the weld with anti rust compound and paint to prevent rust forming.
Install the angle sensor onto the mounting plate using the four nuts provided in the kit, and
connect the angle sensor to the display using the 12mm CAN cable provided.
Ensure that the CAN bus cable between the angle sensor and the display is routed back
into the cab in such a way that it will not be damaged by moving machine components or
external forces such as trees or bushes when working in overgrown areas. Provide sufficient
free cable at boom or machine articulation points to allow full movement of the booms or
equipment without straining the cables.

6.2 Terminating Resistor

A terminating resistor is provided, this should be fitted to the free 12mm connector on the
other end of the angle sensor. The terminating resistor is required to be fitted at the end of
any CAN bus line to maintain an efficient CAN bus loop.
www.gkdtechnologies.com
9
Weld
Terminating
Resistor
M1000005 V1.5 - 11/2021
