6 ANGLE SENSOR INSTALLATION

6.1

GRAVITY V angle sensor option

The GRAVITY V angle sensor is installed onto the boom to be monitored.
Identify a position for the sensor on the side of the boom, where it is not likely to be
damaged by machine components or to catch moving cables or hydraulic hoses as machine
components articulate.
It is preferable that the sensor should be installed as close to the boom base pin as is
practical, to minimize acceleration and deceleration forces imposed on the sensor as the
boom moves up or down.
The sensor should be orientated so that the long edge is parallel with the boom being
monitored.

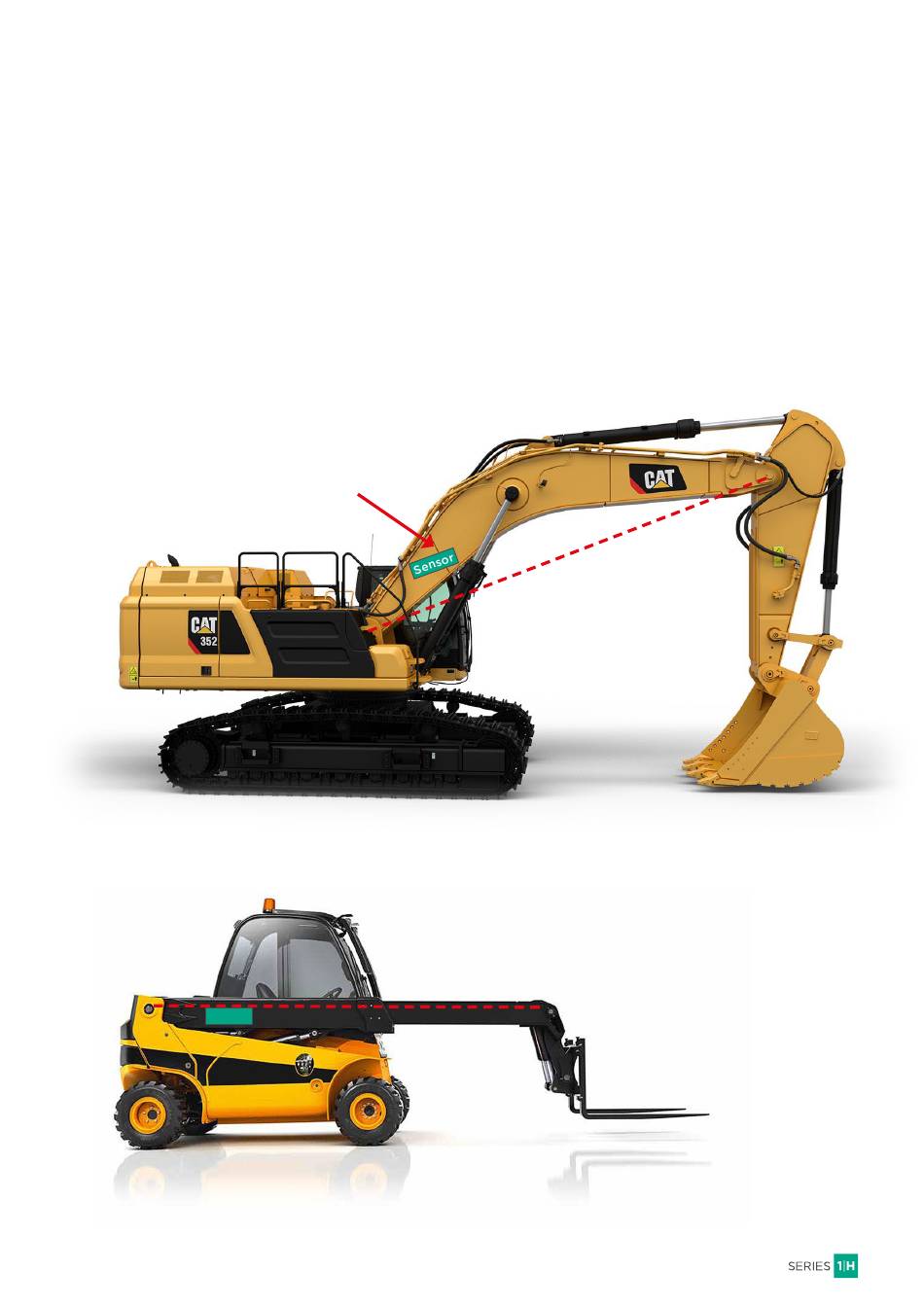

Sensor mounted parallel
to line drawn through end
points of monoboom
Sensor
www.gkdtechnologies.com
Sensor mounted parallel to the extending
boom. The sensor can be installed on either
side of the equipment, but this will depend
on what access is available.
