3 SERIES 1-H INDICATORS AND CONTROLS

O On
Key Switch:
Off = System in Inactive Mode
On = System in Height Limit Active Mode
Set Limits = System in Setup Mode
www.gkdtechnologies.com
Fault
On
Set Limits
Set/Test

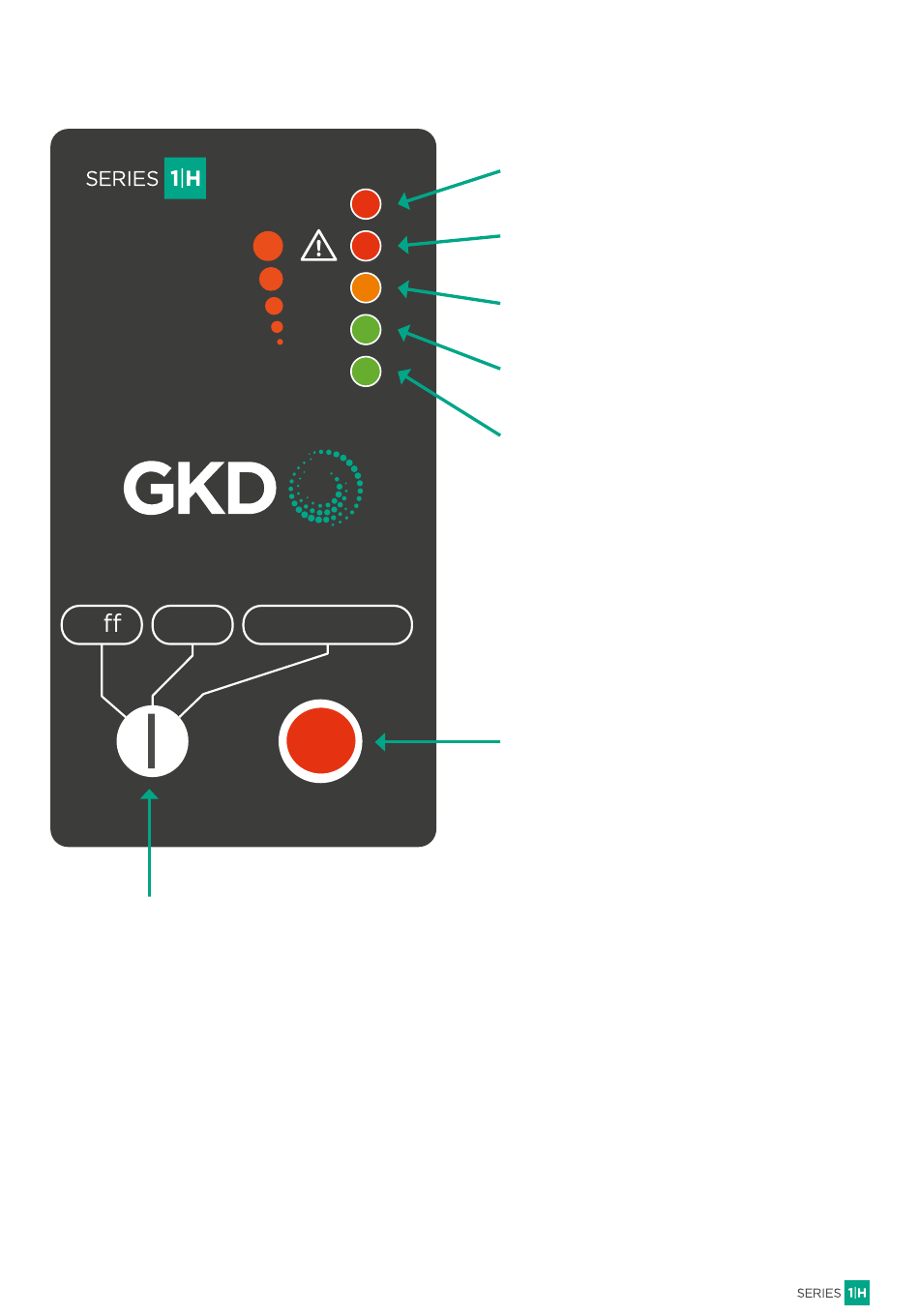

Indicator LEDs in ACTIVE mode:
(see detailed notes in sections below)
Indicates fault with the Series 1-H system
or configuration
Indicates System has reached 95% of
maximum height limit.
Indicates System has reached 75% of
maximum height limit.
Indicates System is below 75% of the
maximum height limit
Indicates System Power is ON
Set/Test Button:
= SET when Key Switch at Set Limit
= TEST
when Key Switch at On
