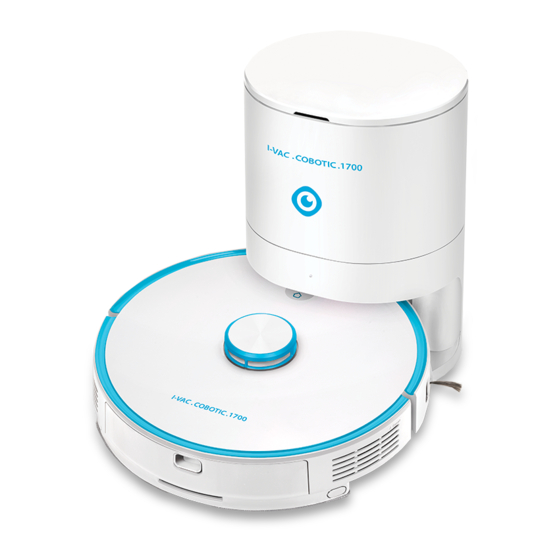

- Page 1 1700 Smart, Autonomous Vacuum User manual i-team Professional B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com *optional Automatic Dirt Disposal system pictured...
- Page 2 Original user manual, written in the English Language Future Cleaning Technologies B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i- teamglobal.com Internet: www.i- teamglobal.com Model: co-botic™ 1700 Date: 14/02/2022 Product code: COB17N.FCT.0230A Version: v.1.0...
- Page 3 FASTER I am faster because I keep working nonstop for 270 minutes. After recharging I'll be up and running again for the next cleaning round. CLEANER I keep going while you programmed me, I can program myself for the highest possible clean.
-
Page 4: Preface
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V., an affiliate company of i-team Professional in Eindhoven, the Netherlands. When this manual mentions “the partner” your local i-team reseller and support service partner is referred to. -
Page 5: Reading Guide
Reading guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries of the operator or bystanders, light and/or moderate damage to the product or the environment. -
Page 6: Table Of Contents
Content Preface ......................................4 Purpose of the user manual ..............................4 Target audience ..................................... 4 Operators of the co-botic 1700 .............................. 4 Reading guide ....................................5 Introduction ................................... 8 Intended use of the product ..........................8 Non-intended use of the product ........................8 Lifespan .................................. - Page 7 Creating rooms, no-go zones and cleaning modes ................. 20 Using the cleaning buttons ..........................22 6.10 Other features ................................. 22 Maintenance ..................................25 Cleaning ..................................25 Damaged or worn parts ............................25 Maintenance frequency ............................25 Storage ..................................25 Trouble shooting ................................26 Decommissioning and disposal ..........................
-
Page 8: Introduction
The manual must be read in full before the first actions. This manual describes the correct method of use, safety measures, maintenance and transport. i-team continuously improves all it’s products based on user experience and feedback. Any deviations between the texts and/or images from the manual and your product can therefore arise from a difference in model or from possible changes due to continuous development and innovation. -
Page 9: Specifications
1 year. 1.7 Identification Each co-botic 1700 has a unique serial number that can be found on the bottom of the main body. Your i-team partner needs this number when you order parts. Explanation type plate: Product type: co-botic 1700... -
Page 10: Description
2 Description The co-botic™ 1700 consists of: Figure 2 1. Main machine 2. Dust box 3. Dust filter 4. Cleaning tool 5. Extra side brushes 6. Remote control 7. Batteries 8. Charging base 9. Power cable... -
Page 11: Buttons And Sensors
2.1 Buttons and Sensors Figure 3 3 Safety Safety comes first. Therefore, please take time to read and understand these safety instructions. Improper use can cause harm or void the manufacturer’s warranty. WARNING STOP OPERATION IMMEDIATELY if the co-botic™ 1700 does not perform properly or makes an unusual noise. -
Page 12: Battery
3.1 Battery General precautions CAUTION • Do not use in an environment where the temperature is above 40°C or below 0°C Do not use in an environment with any liquid or viscous substances • • Do not let children or otherwise unqualified people use the device Keep body parts away from the suction inlet of the machine when it is running •... -
Page 13: Transport And Storage
If the power wire is broken, stop using the machine immediately • For transport/return, turn off the machine and use the original packaging • 4 Transport and storage • do not store the co-botic™ 1700 outdoors; store the co-botic 1700 only in a dry place; •... -
Page 14: Operation
Ensure that there is more than 1.2 meters of empty space in front of the charger and more than 0.5 meters of empty space to the side. 6 Operation Place the co-botic™ 1700 on the floor in front of the charger base Long press the power button The cobot will find it’s charging base and begin to charge... -
Page 15: Using The Co-Botic 1700 Without An App
6.1 Using the co-botic™ 1700 without an app Quick press the power button The co-botic 1700 will begin cleaning the space it is in While it is cleaning it will also build a map of the space that can be used later with the app After cleaning, the cobot will return to it’s charging base... -
Page 16: Connecting The Co-Botic 1700 To The Network And The App
6.4 Connecting the co-botic™ 1700 to the network and the app Power on the device If the “POWER” button is flashing blue, then the machine is ready to connect If they are not blinking, then press both “HOME” and “POWER” buttons together for 3 seconds. -
Page 18: Setting Up Your Organization
6.5 Setting up your organization The co-botic™ 1700 is capable of being placed into an organization with multiple buildings, rooms, and cobots. How you set up your organization is critical to identifying where the cobots are located and how they are performing. On the Home screen, press the upper left corner drop down menu to open the existing structure Select “Home Management”... -
Page 19: Mapping And Routes
To share all of the machines at a location/building, you must start from the original account that already has access to the organization. From the home screen, select the location drop down in the top left corner of the screen Select “Home Management”... -
Page 20: Creating Rooms, No-Go Zones And Cleaning Modes
6.8 Creating rooms, no-go zones and cleaning modes To use zones it is important to understand the three modes of operation: Pin and go, Zone, and Auto To create a no-go zone: a. Open the map that you want to use b. - Page 21 a. Open the map that you want to use. NOTE: To set up multiple rooms, make sure that you map the entire space including all rooms and hallways leading to the rooms b. Select the “Zone” button below the map c.
-
Page 22: Using The Cleaning Buttons
6.9 Using the cleaning buttons The buttons at the bottom of the screen are explained below: a. Dock – Will send the cobot back to it’s charging base. You can pause the process by pressing this button again b. Start – Will start the cleaning process based on what mode is selected (Pin and go, Zone, or Auto) - Page 23 Reset map a. This will delete the contents of your map to start new Auto boost a. This option will allow the vacuum to auto adjust depending on floor type. Turn it off to control the suction level manually Dust collecting treasure a.
- Page 24 11 Using the remote control a. If the cobot 1700 is active press the home button with 11a. The machine will return to its docking station. b. activate the remote control function. c. press the arrows to move forward/backward/left and right. d.
-
Page 25: Maintenance
7.3 Maintenance frequency To ensure proper and safe operation throughout the life of the co-botic 1700, it is recommended to have an authorized i-team partner check the machine after the first 50 hours of use and then every 125 hours afterwards. -
Page 26: Troubleshooting
8 Troubleshooting List of fault codes: dp_robot_fault_1 Low battery, start recharging dp_robot_fault_2 Low battery, shut down dp_robot_fault_3 Abnormal driving wheel / universal/main wheel dp_robot_fault_4 Does not meet the upgrade conditions, please charge dp_robot_fault_5 Abnormal collision sensor dp_robot_fault_6 The designated / appointed area cannot be reached dp_robot_fault_7 Machine tilted dp_robot_fault_8... -
Page 27: Decommissioning And Disposal
2. Remove all loose components. 3. Dispose of all items according to your local laws and regulations. TIP: Contact your local i-team partner to explore all possibilities of returning components at the end-of-life of your co-botic 1700. Specifications and CE Model: Co-botic™... - Page 28 This document is part of the technical file of the co-botic 1700 and will be available upon request.
- Page 29 Made Blue simultaneously ensures someone else on the planet gets access to clean water. For every litre that the i-mop uses in operations, the i-team and Made Blue mirror clean drinking water in a developing country. The planet is a beautiful place with over 7 billion people.
- Page 30 This page left intentionally blank...
- Page 31 Professional B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
