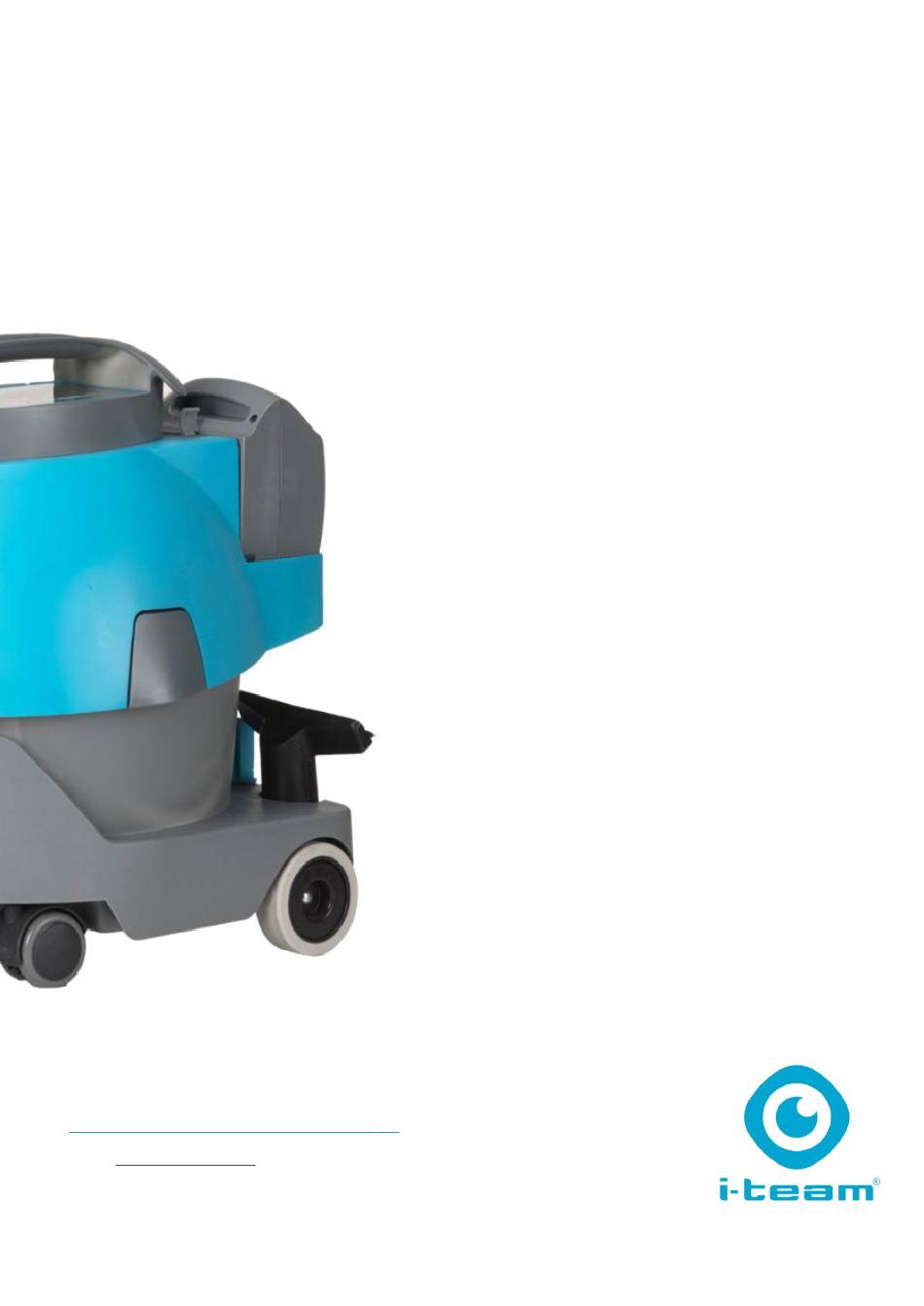

- Page 1 i-vac 5B Continuously easy User manual i-team Professional b.v. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
- Page 2 Original user manual, written in the English Language Future Cleaning Technologies B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com Model: C5B Date: 08/05/2020 Product code: C5B.I-V.0000B Version: v.1.0...
-
Page 3: Preface
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe place. The manual is an essential part of the i-vac 5B and must be handed over to the new owner upon resale or exchange. Each i-vac 5B has a unique identification number that can be found on the bottom of the main body. -
Page 4: Reading Guide
Reading guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries of the operator or bystanders, light and/or moderate damage to the product or the environment. -
Page 5: Table Of Contents
Content Preface ..................................3 Purpose of the user manual ............................ 3 Target audience ..............................3 Operators of the i-vac 5B ............................3 Reading guide ................................4 Introduction ..............................7 Intended use of the product ........................7 Non-intended use of the product ......................8 Lifespan .............................. - Page 6 7.1.1 Clean the machine ........................... 27 7.1.2 Clean the hose and wand ........................ 27 7.1.3 Replacing the motor filter ....................... 28 Brush and tool condition ........................29 Damaged or worn parts ........................29 Maintenance frequency ........................30 Storage ..............................30 Trouble shooting ............................
-
Page 7: Introduction
The i-vac 5B goes wherever you go. The battery used in the i-vac 5B are the same as in a variety of battery powered i-team products. The battery must be fully charged before use. Please refer to the user manual of the i-charge® for the correct procedure. -
Page 8: Non-Intended Use Of The Product
Keep the i-vac 5B and the accessories clean. In order to use the i-vac 5B on different types of surfaces, extra tools are provided. These tools are easy to replace. Select the right tool for each job, see Figure 2. -
Page 9: Lifespan
1.3 Lifespan For a proper functioning and a long lifespan of the i-vac 5B®, it is important to follow the recommended maintenance intervals mentioned in this manual, see section 7. 1.4 Modifications It is not permitted to make modifications to the design of the i-vac 5B without consultation and... -
Page 10: Specifications
1.5 Specifications Figure 3 Body size: 360 x 272 x 420 mm Carrying weight: 5.2 kg Hose length: 180 cm Capacity: Noise level: 62 dB(A) l 63 dB(A) Diameter of tools: 32 mm Water lift/suction: 1300 mm Air flow: 24,7 L/sec Application: Indoor, dry Power source:... -
Page 11: Warranty
The warranty period is 1 year. 1.7 Identification Each i-vac 5B has a unique serial number that can be found on the bottom of the main body and on the bottom of the head. Your i-team partner needs this number when you order parts. -
Page 12: Description
The body of the i-vac 5B® is made of durable and impact resistant material. The wand consists of three pieces so you can extend it to reach out to difficult spots. The i-vac 5B can be combined with an optional i-brush®. This extra floor tool simultaneously agitates the carpet and removes dirt and dust. -
Page 13: Explanation Led Indicators
3. A vacuum function LED. The vacuum function LED flashes when the ON/OFF button is turned on. When the i-vac 5B is on full power it is permanent on. Figure 6... -
Page 14: Safety
DO NOT use the i-vac 5B on damp or wet surfaces. This will cause damage to the i-vac 5B and is dangerous to the user. The damage caused by the use on a wet surface is not covered under the warranty. -
Page 15: Transport And Storage
5B is stored for a longer period, remove the battery. See section 6.2.2.; • before you transport the i-vac 5B, remove the battery. See section 6.2.2.; • before you use the i-vac 5B again, make sure the battery is loaded, see the User Manual of the i- charge 9®. -
Page 16: Assembly And Installation
The i-vac 5B® does not require much assembly. The machine comes with 2 additional tools for vacuuming different types of surfaces. 5.1 Unboxing The i-vac 5B is packed in 1 box. The battery and the battery charger must be ordered separately. Figure 7 Legend... -
Page 17: Assembly
5.2 Assembly 1. Insert the hose (Figure 8, pos 1) into the hose intake (Figure 8, pos 6). 2. Turn the hose clockwise to lock it into place. 3. Insert the hose into the wand (Figure 8, pos 2). 4. Attach the standard floor tool (Figure 8, pos 4) on the narrow end of the wand (Figure 8, pos 5). 5. -
Page 18: Replacing The Dust Bag
5.3 Replacing the dust bag Check the dust bag every week and replace it if it is full. Only use original i-team dust bags. Make sure that the hose is removed from the i-vac 5B® before removing the dust bag. You cannot remove the dust bag with the hose in place. - Page 19 6. Turn the hose (Figure 11, pos 5) counterclockwise and remove it from the hose connector. 7. Remove the filter bag (Figure 11, pos 1). 8. Pull the cardboard tag (Figure 11, pos 3) to seal the dust bag. 9. Fold the ends of the dust bag (Figure 11, pos 2) towards each other.
- Page 20 14. Place the hose (Figure 13, pos 1) into the hose connector (Figure 13, pos 2) turn it clockwise to lock it. Figure 13 15. Place the head (Figure 14, pos 1) onto the can. Figure 14...
- Page 21 16. Fasten the latches (Figure 15, pos 1). 17. Replace the battery (Figure 15, pos 2). Figure 15 ATTENTION Make sure that the head is correctly placed on the can, otherwise false air may be sucked in and this affects the performance of the i-vac 5B®.
-
Page 22: Operation
1. Check the i-vac 5B® for damage or defects. 2. Make sure that the dust bag is placed in the i-vac 5B, see section 5.3. 3. Make sure you have the correct tool for the intended purpose, see Figure 2. -
Page 23: Normal Operation
6.2 Normal operation 1. Press the ON/OFF switch (Figure 18, pos 1) to start the i-vac 5B®. The green light in the ON/OFF switch will go on. 2. Take the wand form the holder (Figure 18, pos 2). 3. Start vacuuming. -
Page 24: Remove The Battery
6.2.2 Remove the battery 1. Press the plastic clips of the battery (Figure 19, pos 1) slightly towards each other. 2. Pull out the battery (Figure 19, pos 2). 3. Place the battery in the charger for next use. Figure 19... -
Page 25: Operation With I-Brush
3. Insert the hose of the i-brush (Figure 20, pos 4) into the hose connector (Figure 20, pos 2). 4. Turn the hose clockwise to lock it into place. 5. Push the plug from the i-brush (Figure 20, pos 5) onto the connector on the i-vac 5B (Figure 20, pos 1) and tighten the ring of the plug. -
Page 26: Remove The Battery
6.3.2 Remove the battery 1. Press the plastic clips of the battery (Figure 21, pos 1) slightly towards each other. 2. Pull out the battery (Figure 21, pos 2). 3. Place the battery in the charger for next use. Figure 21... -
Page 27: Maintenance
Maintenance that is not described in this manual should be done by your i-vac 5B partner. Please make sure to have the model and serial number of the i-vac 5B available when you call a partner. For more information please fill out the contact form on www.i-teamglobal.com. -
Page 28: Replacing The Motor Filter
7.1.3 Replacing the motor filter 1. Turn off the i-vac 5B® with the ON/OFF switch (Figure 22, pos 1). 2. Remove the battery (Figure 22, pos 4). 3. Release the latches (Figure 22, pos 2). 4. Lift the head by the handle (Figure 22, pos Figure 22 5. -
Page 29: Brush And Tool Condition
Check the condition of the brush or tool for wear and tear before use. Only change the brush or tool when the machine is turned off. 7.3 Damaged or worn parts Damaged or worn parts need to be replaced immediately. Contact your local i-team Global partner or visit www.i-teamglobal.com for more information. -
Page 30: Maintenance Frequency
7.4 Maintenance frequency Make sure that routine and preventive maintenance is carried out periodically to ensure safe operation. Failure to carry out maintenance as necessary may cause damage to the i-vac 5B® and may cause a risk to the operator. -
Page 31: Trouble Shooting
Wait approximately 30 minutes. Start the i-vac 5B by pushing the "ON" button. Little suction power Filter bag full Turn off the i-vac 5B and replace filter bag. Filter is full Turn off the i-vac 5B and replace filter. Hose blocked Turn off the i-vac 5B and remove blockage. -
Page 32: Decommissioning And Disposal
It is the responsibility of the i-vac 5B® owner to dispose of the product responsibly. At the end-of-life the i-vac 5B still contains valuable resources and needs to be disposed of according to your local laws and regulations regarding recycling of electrical equipment. -
Page 33: Attachments
10 Attachments 10.1 CE Certificate... - Page 34 This document is part of the technical file of the i-vac 5B® and will be available upon request.
