The and buttons at top left and right can be used to navigate through any sub-menus which the sensor offers.
arrow
Briefly pressing the
more quickly by keeping your finger on the
screen.

4.1.7. Adress

Addr.
The button is important if you wish to connect multiple sensors of the same type. For example, if you wish to use two
PBS-V60
sensors to monitor two flight batteries in an electric-powered model.

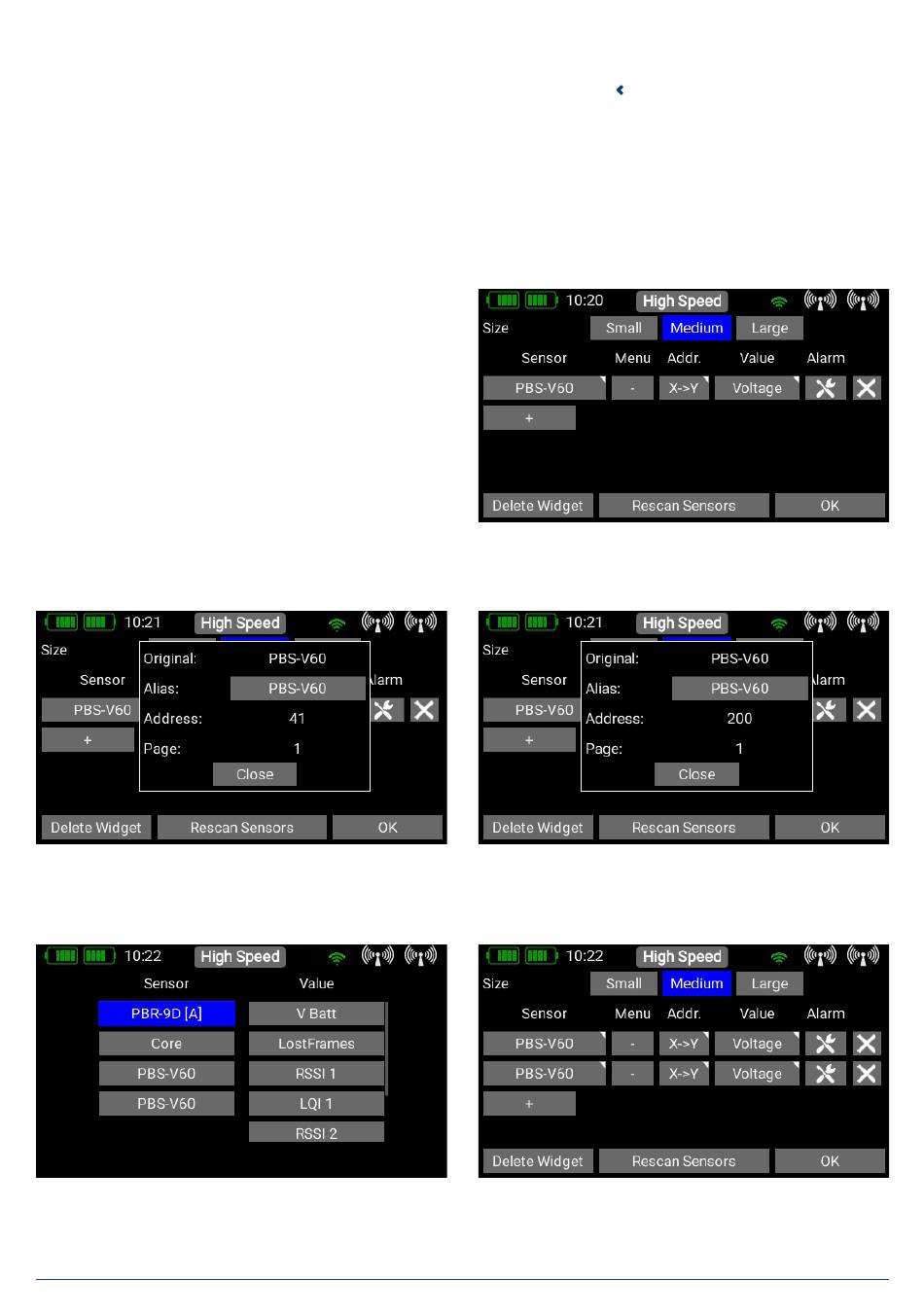

This is the procedure for registering two sensors of the same type:
•
Connect one of the sensors, and carry out a rescan.
• +
Press in order to select one (or more than one) of the tele-
metry values generated by this sensor. The sensor appears in
the list. In our example this is the PBS-V60.
•
You can now display the current address by keeping your
finger on the sensor name, as explained above. This is purely
for information, as the CORE automatically manages the ad-
dressing. The standard address 41 of the
on the left of the picture.
• X->Y
Press the button in order to shift the address.
•
If you again hold your finger on the sensor name, you will see
that the address is different from the previous one. As you
can see in the right-hand illustration, the address has been shifted automatically to 200.
•
Now connect the next sensor, and carry out another
system.
• Proceed as before if more sensors of the same type are to be connected..
www.powerbox-systems.com
buttons to the right of the sensor values allows you to alter the sensor values. You can set larger values
arrow
buttons. To leave the menu press the -button at the bottom of the touch-
PBS-V60
is shown
Sensor Rescan
process. Press
+
to accept the second sensor into the
43
