4.1.1. Size

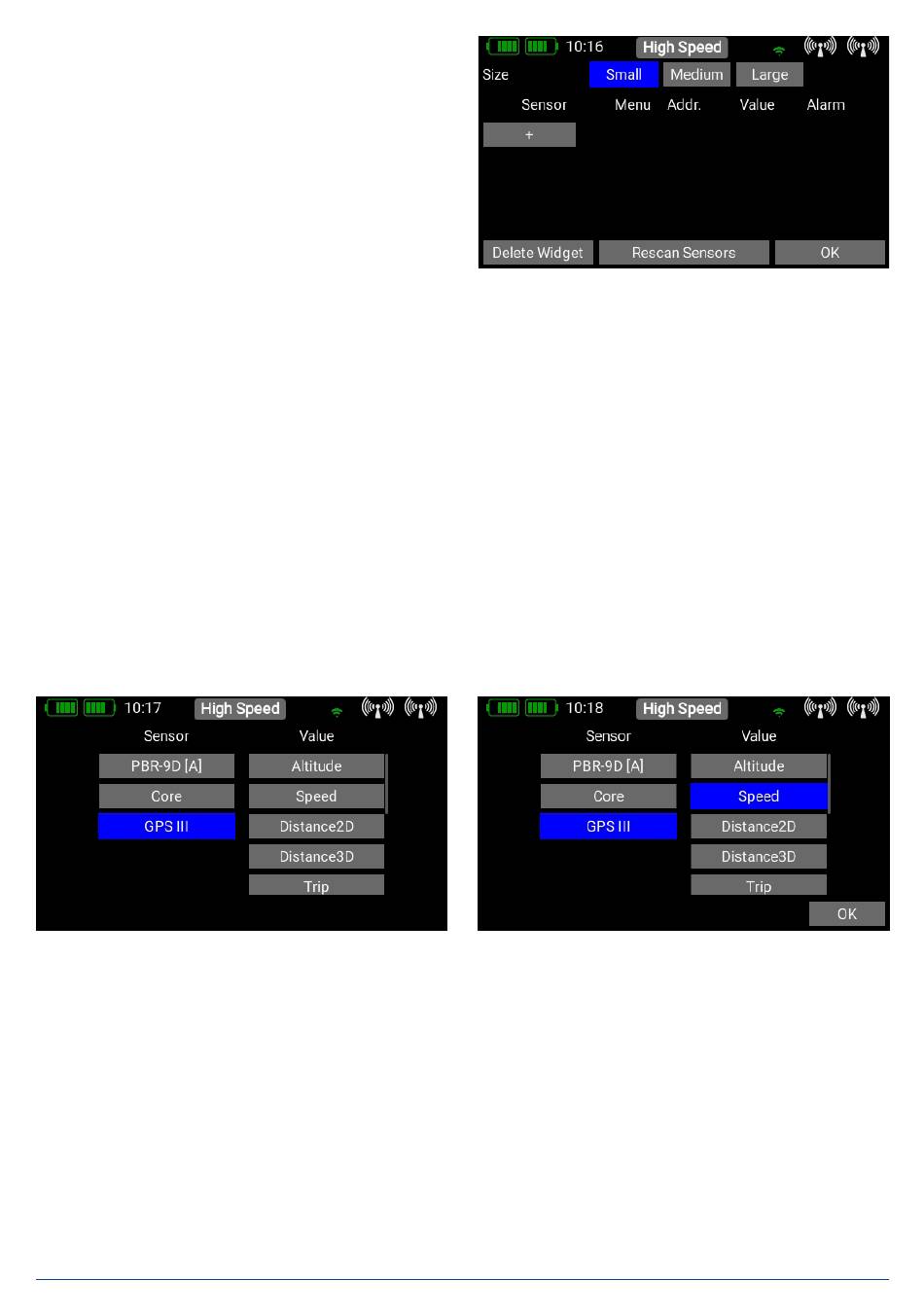

With these three buttons you can adjust the size of the widgets:
Small,
Medium
and Large.

4.1.2. Delete Widget

You can delete the widget with this button.

4.1.3. Rescan Sensors

You will need this function if you connect new sensors when the system is already running. The process gathers all sensor infor-
mation on the P²-BUS. Basically, all sensor information is automatically collected when the system is switched on.

4.1.4. + Button

+
button. Each widget can display multiple sensor values, even from sepa-
At this point you can select sensor values using the
rate sensors; the values then alternate in the widget's display. This is accomplished by selecting one or more sensor values which
OK
you want to appear in your widget, and pressing
to confirm.
The left-hand column shows all the connected sensors, while the right-hand column shows all the values which these sensors
P²BUS
255 sensors each with 32 individual
supply. The
is an in-house development, and is capable of transmitting up to
values
800 values per
second!
– and at a speed of up to
At this point you can select which sensor value this widget is to display, and press
OK
to confirm your choice. It is possible to
set up each widget to display multiple sensor values, even from different sensors; these values are then displayed in turn by the
widget. This is accomplished by selecting one or more sensor values which you want your widget to display, then confirming your
choice with OK.
The selected sensor value now appears in the list. In the example below several sensor values have already been selected.
41
